D8v3
8-Channel Full Range Class D Amplifier with10-Channel Digital Sound Processor

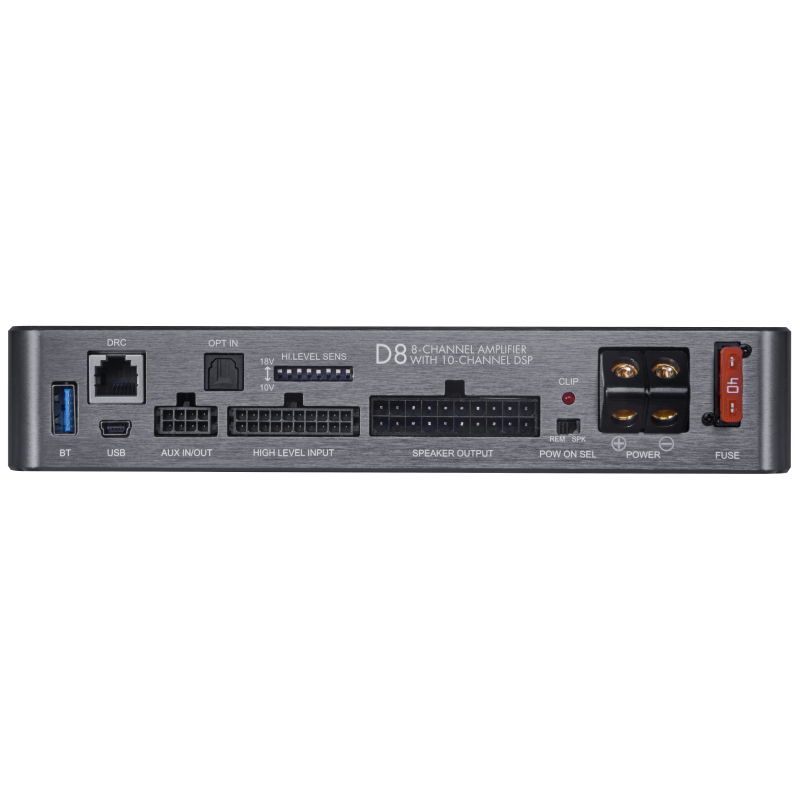

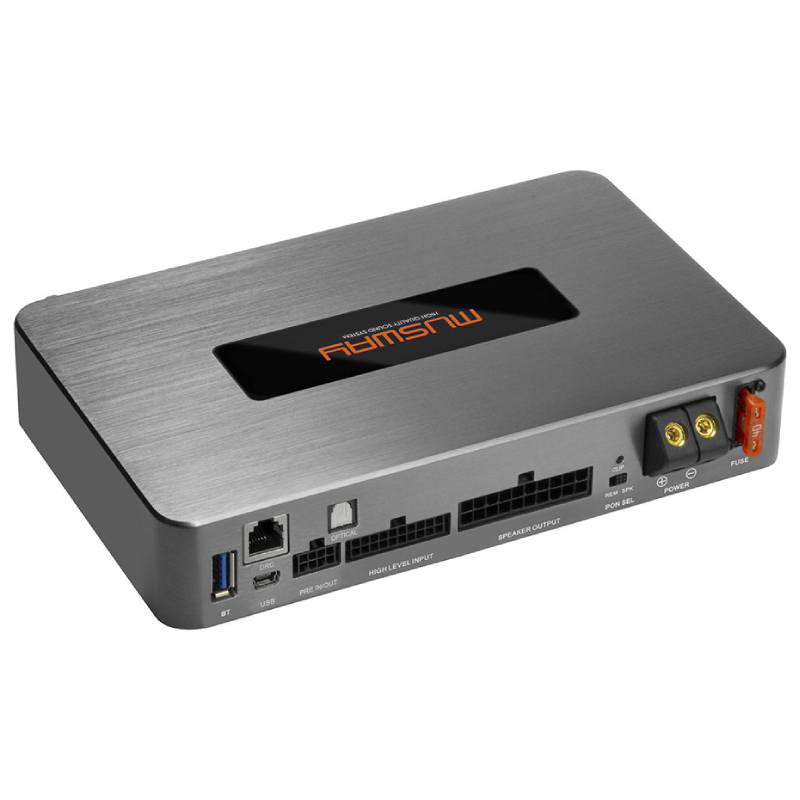

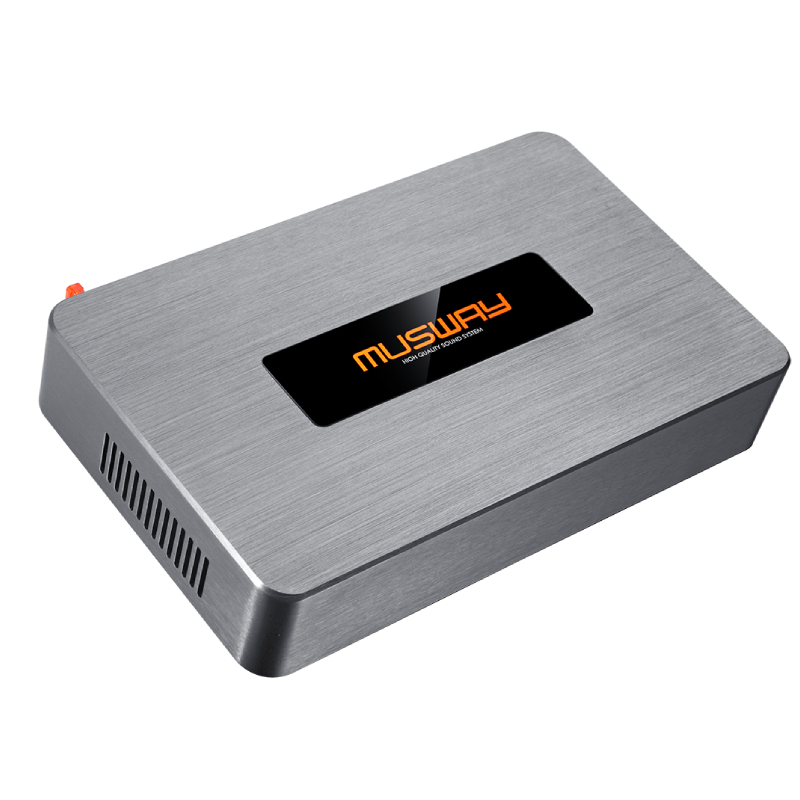

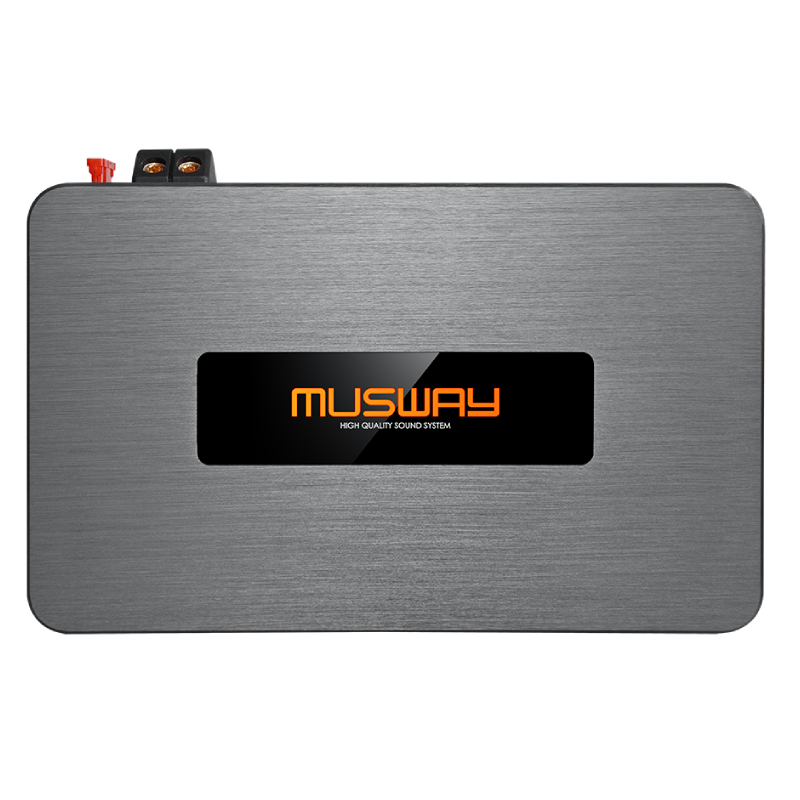

The MUSWAY D8v3 is an extremely compact audio power plant in a shapely housing with eight amplifier channels and 10-Channels of Digital Sound Processing. The D8 features 8 x 50 watts at 4 Ohms, 8 x 75 watts at 2 Ohm and is bridgeable at 4 x 150 watts at 4 Ohms. The centerpiece is the state-of-art Dual 32 bit, 330 MIPS high-end DSP processor which is controllable via PC software or the new MUSWAY app for your smartphone or tablet.
Downloads:
×
![]()
D8 Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Output Clipping LED
- With the easy-to-use MUSWAY PC software, the D8 can be configured perfectly and in real time via PC or the new app for your smartphone or tablet.
- With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimension: 61(L) x 36(W) x 10(H)
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimension: 61(L) x 36(W) x 10(H)
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimension: 60(L) x 33(W) x 13(H)
MB-DRC
Digital Remote Control Mounting Bracket
Made in Aluminium
4 Mounting bracket holes
DRC-1 not included
For Use on the DRC-1
