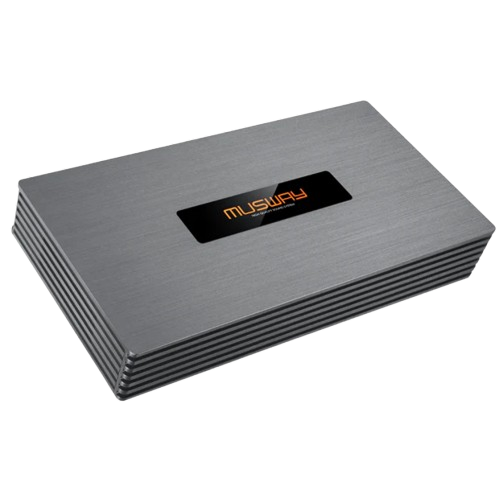

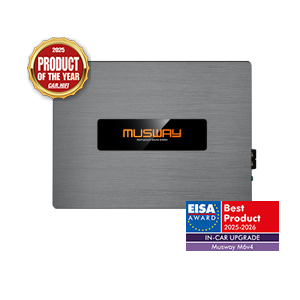

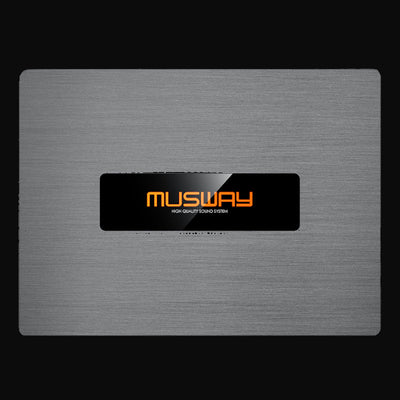

⚡ Musway M6 Product Overview

🔹 Smart and Reliable Performance: The Musway M6 is engineered for precision and efficiency, featuring Start-Stop readiness and EPS (Intelligent High-Level Input Error Protection System) for seamless integration with modern vehicles.

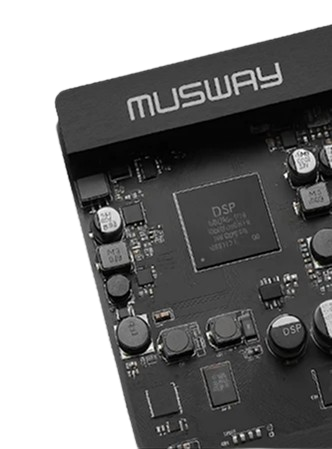

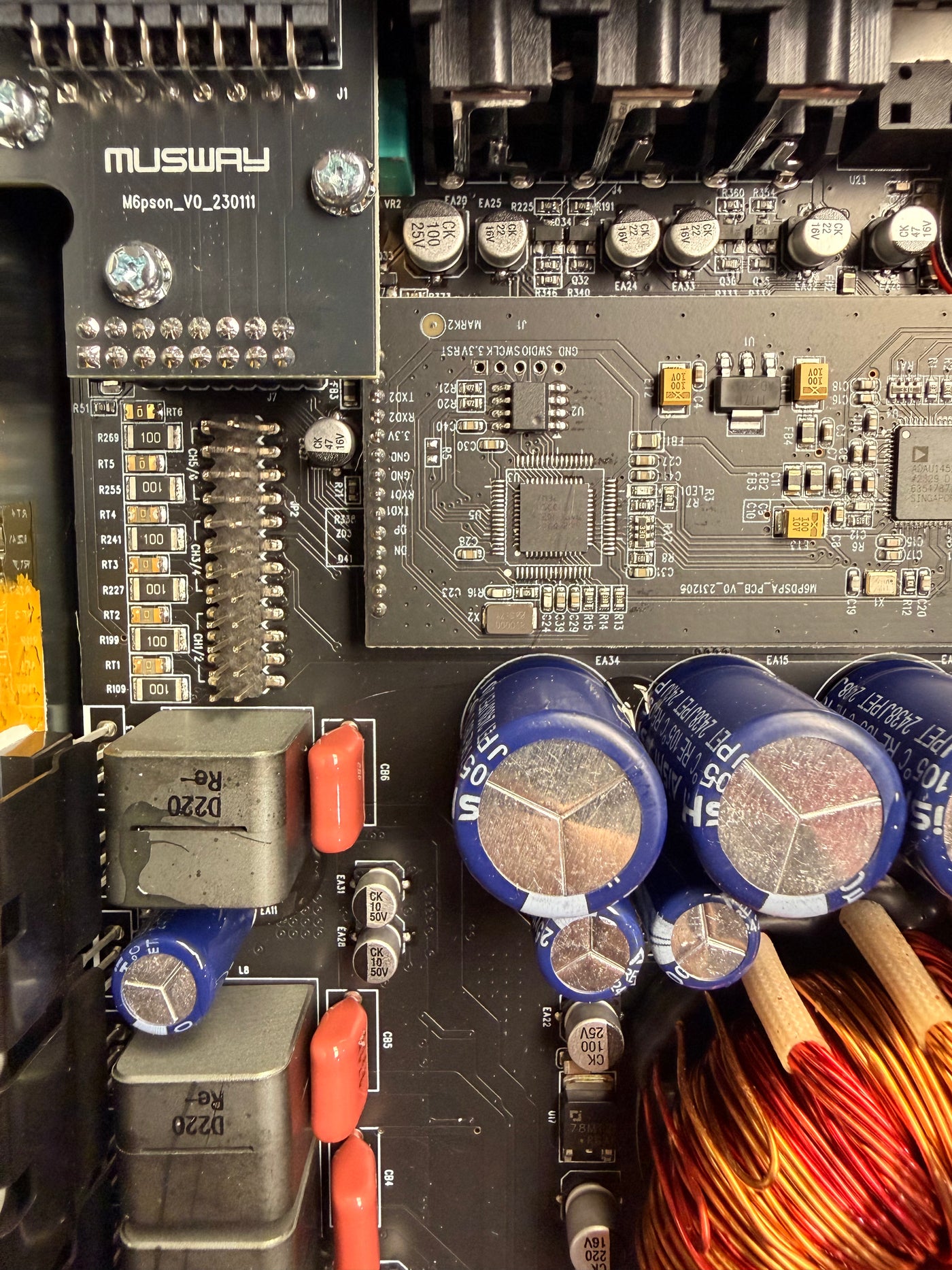

🔹 Premium Build Quality: Designed with a brushed aluminum heat sink and end panels, the M6 combines sleek aesthetics with superior thermal management. Its 4-fold laminated circuit boards minimize EMI (RF interference), ensuring exceptional performance and compliance with strict European EMI standards.

🔹 Advanced Functionality: Enjoy Auto Turn-On via DC Offset or Signal Sensing for effortless setup, and monitor your system with the Output Clipping LED to maintain perfect audio balance and clarity.

🔹 Intuitive DSP Control: Configure your M6 in real time via the MUSWAY PC software or the Musway app for smartphones and tablets — giving you precise control over your sound.

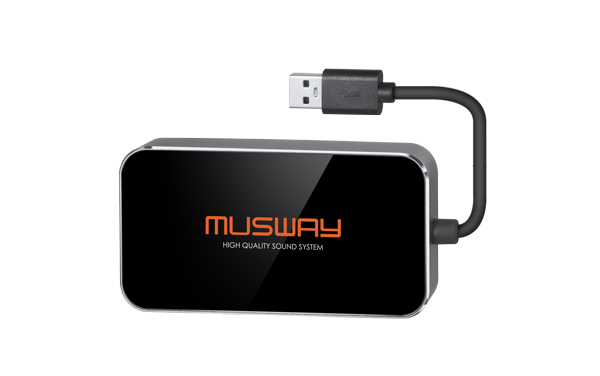

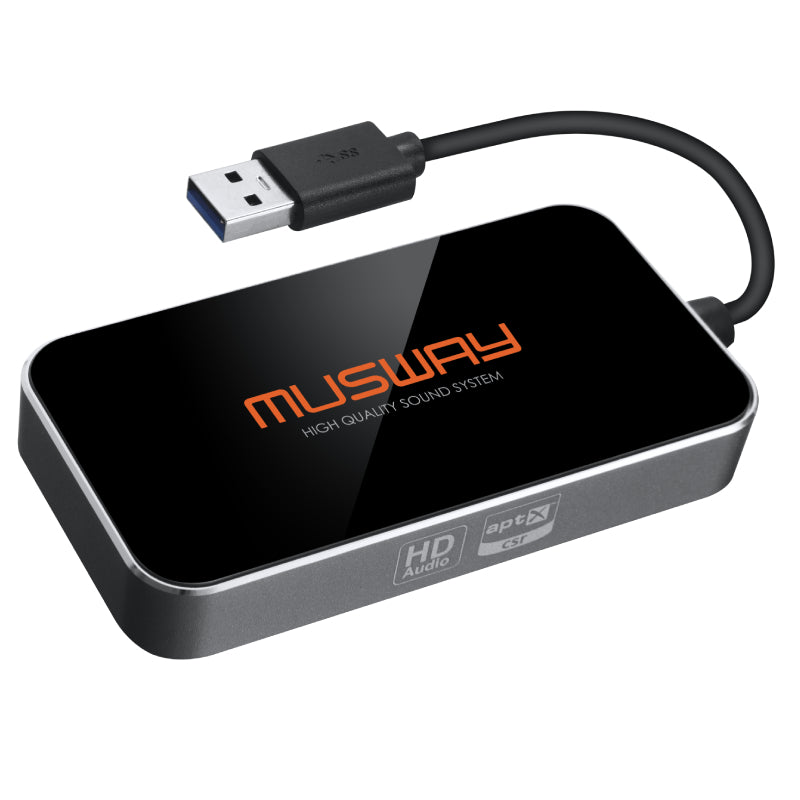

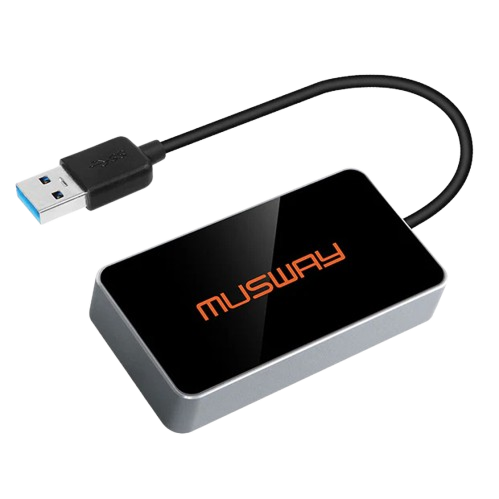

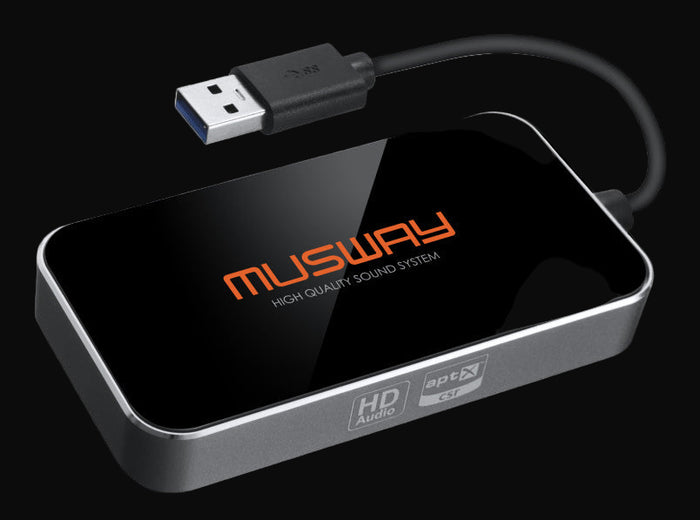

🔹 Enhanced Connectivity Options: With three optional USB Bluetooth dongles, you can stream audio, enjoy aptX HD Hi-Res Audio, and access DSP tuning control through your mobile device. The optional DRC1 digital remote control with OLED display puts advanced tuning and volume adjustments conveniently within reach.

• 6-Channel
• 105W RMS x 6 at 2 Ohm
• Class-D
• Full Range
• Car Amplifier
• 8-Channel Digital Sound Processor Output
• German Engineered

6-Channel Full Range Class-D Amplifier with 8-Channel DSP – 512k
Power Output:
• 80 watts x 6 @ 4 ohms
• 130 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91" (W) × 1.73" (H) × 8.66" (L) (150 × 44 × 220 mm)
Inputs:
High-Level 6 (4.8–20 V RMS
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1 (96 kHz / 24-bit)
• Frequency Response: 10 Hz – 20 kHz (–3 dB)
• S/N Ratio: 94 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: 55 (1 kHz)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

⚡ Musway M6 Product Overview

🔹 Smart and Reliable Performance: The Musway M6 is engineered for precision and efficiency, featuring Start-Stop readiness and EPS (Intelligent High-Level Input Error Protection System) for seamless integration with modern vehicles.

🔹 Premium Build Quality: Designed with a brushed aluminum heat sink and end panels, the M6 combines sleek aesthetics with superior thermal management. Its 4-fold laminated circuit boards minimize EMI (RF interference), ensuring exceptional performance and compliance with strict European EMI standards.

🔹 Advanced Functionality: Enjoy Auto Turn-On via DC Offset or Signal Sensing for effortless setup, and monitor your system with the Output Clipping LED to maintain perfect audio balance and clarity.

🔹 Intuitive DSP Control: Configure your M6 in real time via the MUSWAY PC software or the Musway app for smartphones and tablets — giving you precise control over your sound.

🔹 Enhanced Connectivity Options: With three optional USB Bluetooth dongles, you can stream audio, enjoy aptX HD Hi-Res Audio, and access DSP tuning control through your mobile device. The optional DRC1 digital remote control with OLED display puts advanced tuning and volume adjustments conveniently within reach.

• 6-Channel
• 105W RMS x 6 at 2 Ohm
• Class-D
• Full Range
• Car Amplifier
• 8-Channel Digital Sound Processor Output
• German Engineered

6-Channel Full Range Class-D Amplifier with 8-Channel DSP – 512k
Power Output:
• 80 watts x 6 @ 4 ohms
• 130 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91" (W) × 1.73" (H) × 8.66" (L) (150 × 44 × 220 mm)
Inputs:
High-Level 6 (4.8–20 V RMS
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1 (96 kHz / 24-bit)
• Frequency Response: 10 Hz – 20 kHz (–3 dB)
• S/N Ratio: 94 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: 55 (1 kHz)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

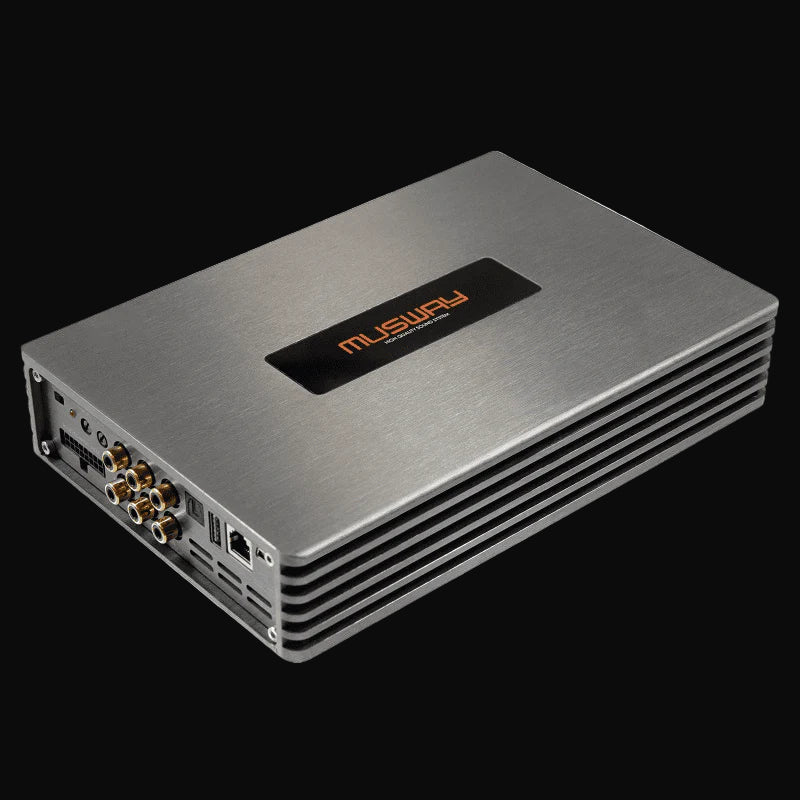

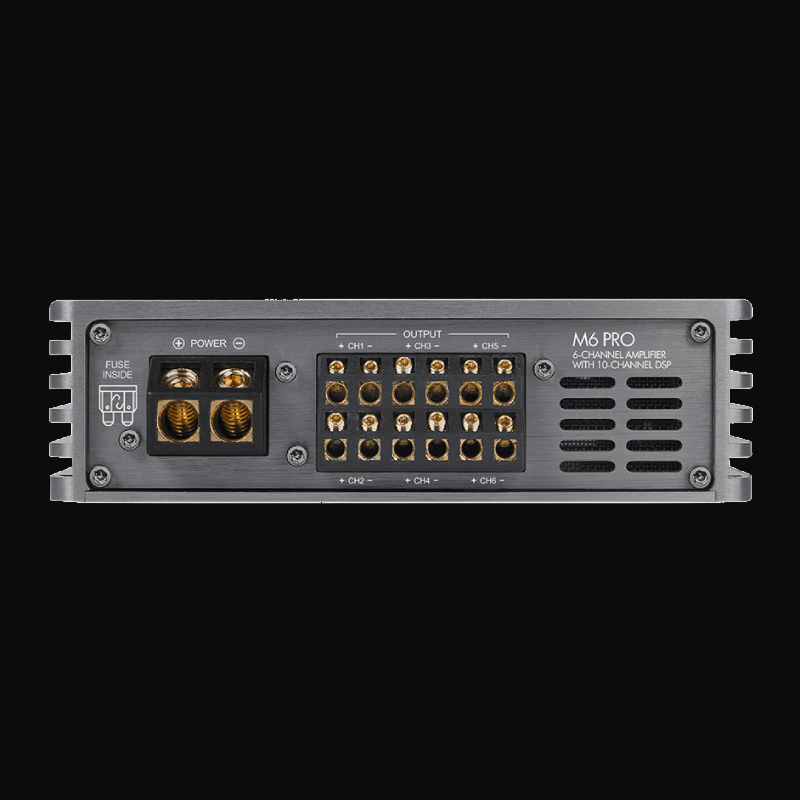

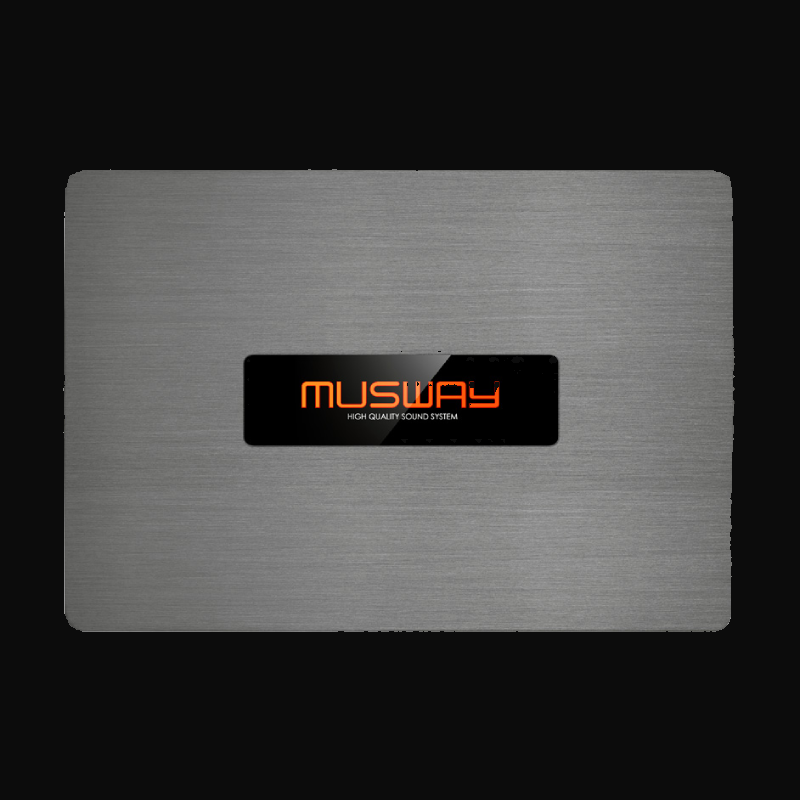

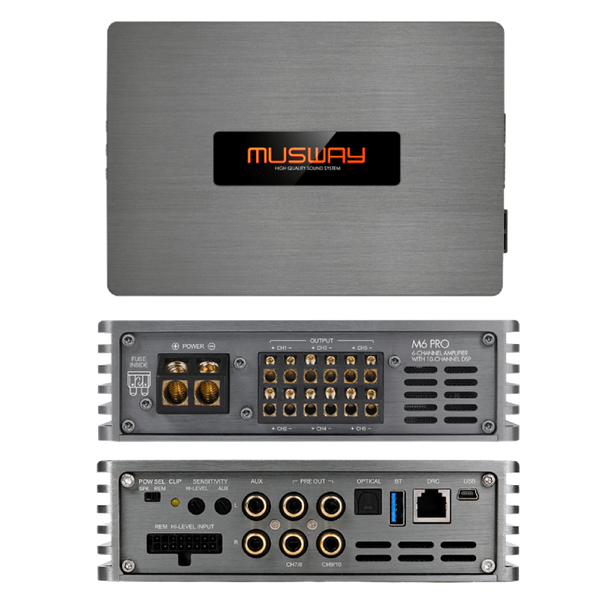

⚡Musway M6Pro Product Overview

🔹 High-Performance Design: The Musway M6Pro combines precision engineering with powerful DSP control, making it a standout choice for premium car audio systems. Featuring Start-Stop readiness and EPS (Intelligent High-Level Input Error Protection System), it ensures reliable performance across modern vehicles.

🔹 Superior Build Quality: Its brushed aluminum heat sink and end panels provide both durability and elegant aesthetics. The 4-fold laminated circuit boards effectively suppress EMI (RF interference), allowing this full-range Class D amplifier to meet and exceed strict European EMI standards.

🔹 Smart Functionality: Enjoy Auto Turn-On via DC Offset or Signal Sensing and benefit from an Output Clipping LED that ensures precise monitoring and optimal sound levels.

🔹 Advanced Connectivity: Easily configure the M6Pro in real time through the MUSWAY PC software or the intuitive Musway app on your smartphone or tablet.

🔹 Optional Add-Ons: Enhance your system with three optional USB Bluetooth dongles — enabling audio streaming, Hi-Res aptX HD audio playback, and DSP tuning via the app. The optional DRC1 digital remote control with OLED display offers convenient system control right at your fingertips.

• 6-Channel
• 200W RMS x 6 at 2 Ohm
• Class-D
• Full Range
• Car Amplifier
• 10-Channel Digital Sound Processor Output
• German Engineered

Pro Series 6-Channel Full Range Class-D Amplifier
with 10-Channel Digital Sound Processor - 512k
Power Output:
• 120 Watts x 6 @ 4 ohms
• 200 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91" (W) × 1.73" (H) × 8.66" (L) (150 × 44 × 220 mm)

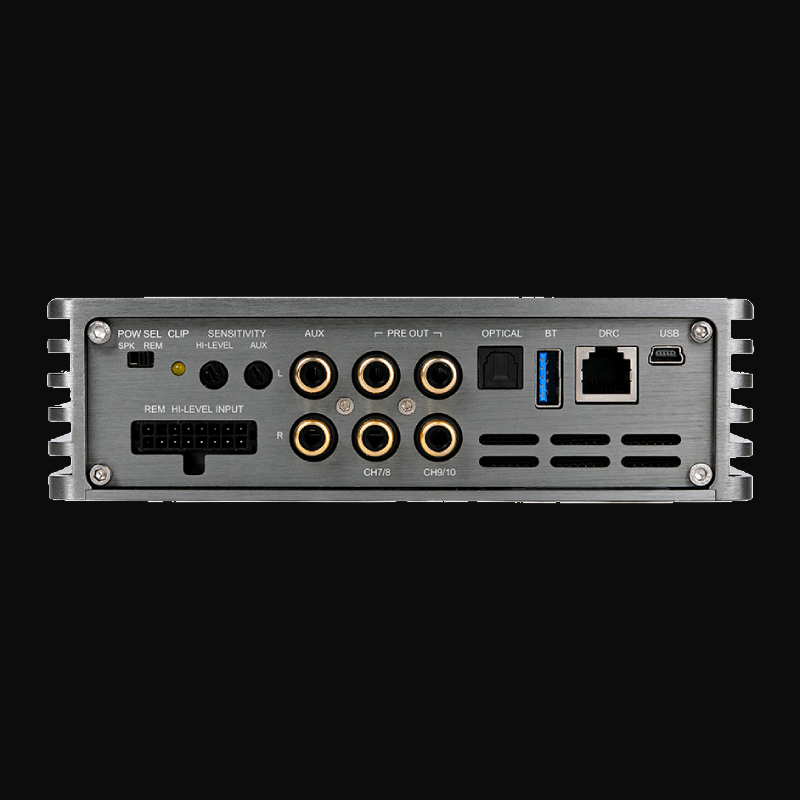

Inputs: High-Level 6 (4.8–20 V RMS)
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1
• Frequency Response: 10 Hz – 22 kHz (–3 dB)
• S/N Ratio: 100 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: > 130 (1 kHz, 2 V RMS, 4Ω)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

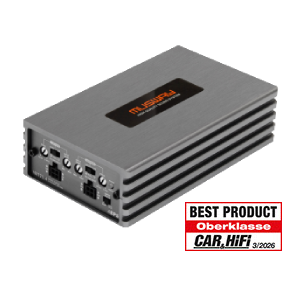

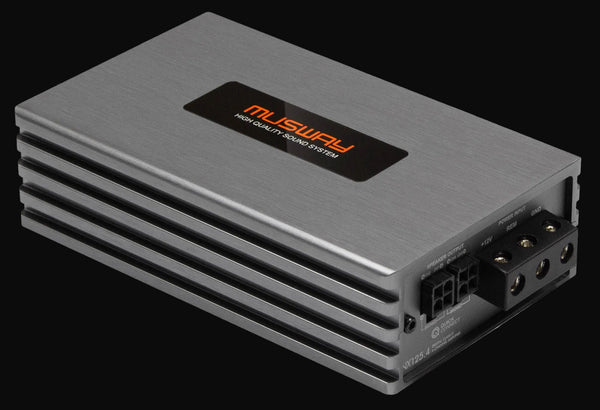

🔹 Why Choose the NX125.4?

🔹 Powerful 4-channel output in a compact body
🔹 Clean, dynamic sound with audiophile-grade clarity
🔹 Flexible crossover tuning
🔹 OEM-friendly integration
🔹 Reliable performance for daily drivers and custom builds

This product is designed to operate in a vehicle with an on-board voltage of +12 V with negative ground. The
device functions as an audio amplifier that is used within a vehicle sound system.

Power RMS @ 13.4 V (≤1% THD+N)
Watt @ 4 Ohm 4 x 80
Watt @ 2 Ohm 4 x 135
Watt @ 4 Ohm bridged 2 x 270
Power RMS (DHR)*
Watts @ 2 Ohms per channel 170
Frequency Range 10 - 40000 Hz @ -1 dB
Signal-to-noise Ratio > 99 dB
THD+N @ 5 W < 0.02 %
Input Sensitivity 425 mV - 8.0 V
Filter Section CH1/CH2
Low Pass Filter or High Pass Filter 50 - 5000 Hz
Filter Section CH3/CH4
Low Pass Filter or High Pass Filter 50 - 5000 Hz
Operating Voltage 8.5 - 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS: Type D
Auto Turn-on: Yes
Bass Level Remote Controller CH3/CH4: NA
Fuse (external): 50 A
Dimensions
Width 89 mm
Height 41 mm
Length 148 mm
