FIVE.100+

New

5-Channel Full Range Class D Amplifier

Call us for pricing

FIND A DEALER

Downloads:

FIVE.100+ Overview

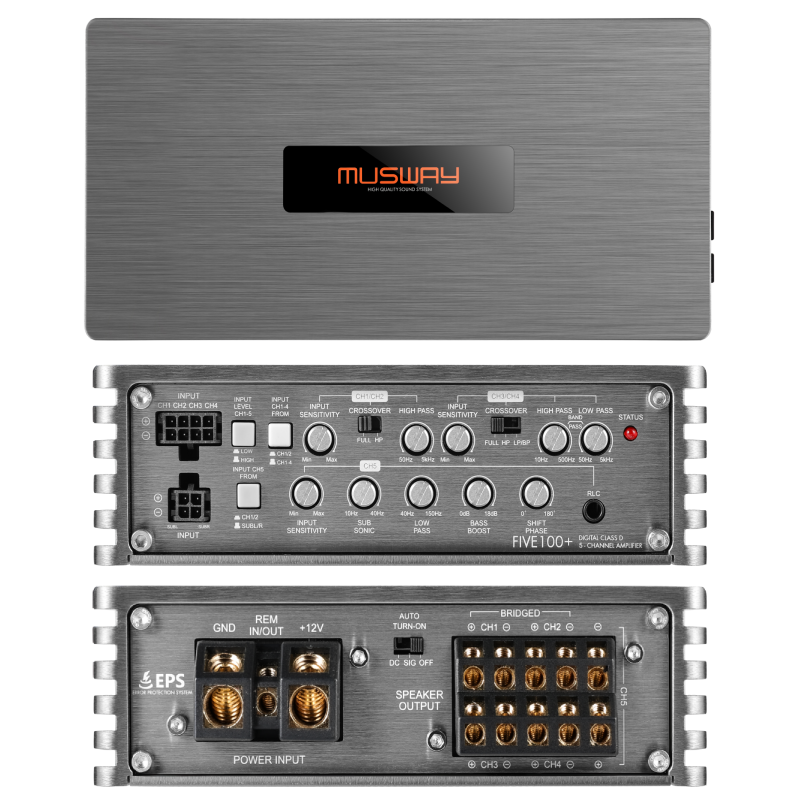

FIVE.100+ Product Overview

Start-Stop ready
EPS (Intelligent High Level Input Error Protection System)
Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must for full range Class D Amplifiers. Passes the difficult EMI European standards.
High- and Low-Level Inputs
RCA (Low Level) output.

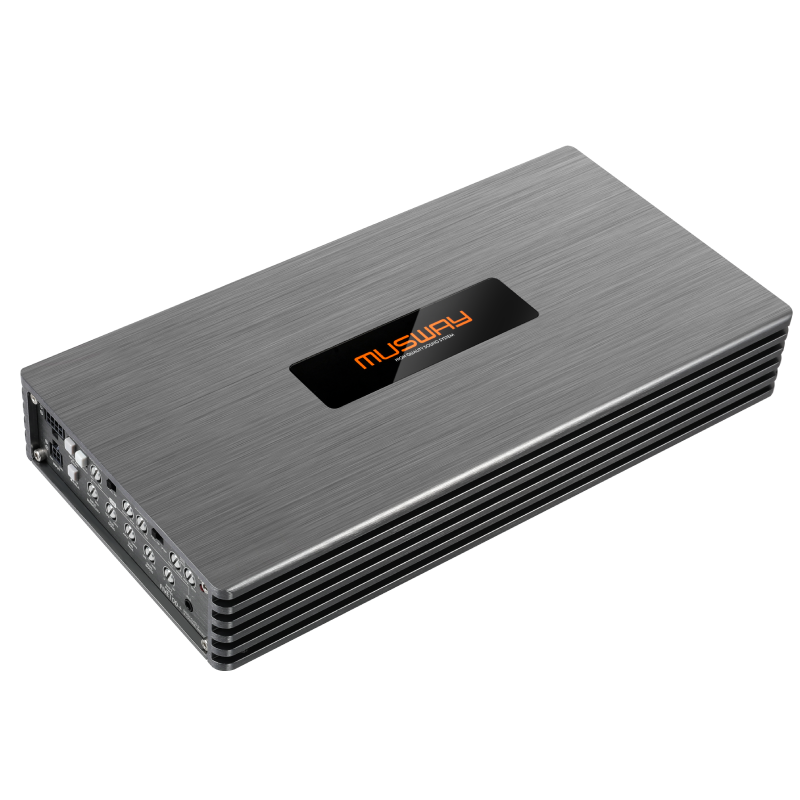

Brushed aluminum heat sink and end panels
Auto Turn On via DC Offset or Signal Sensing
Remote level controller is included in the box

Product Specifications:

OUTPUT POWER RMS @ 13.8v:

(CH1 - CH4) 4 x 115w @ 4 Ohms
(CH1 - CH4) 4 x 200w @ 2 Ohms
(CH1 - CH4) 2 x 400w @ 4 Ohms bridged
(CH5) 1 x 225w @ 4 Ohms
(CH5) 1 x 400w @ 2 Ohms
(CH5) 1 x 600w @ 1 Ohms

OUTPUT POWER RMS @ 14.4v:

(CH1 - CH4) 4 x 125w @ 4 Ohms
(CH1 - CH4) 4 x 225w @ 2 Ohms
(CH1 - CH4) 2 x 450w @ 4 Ohms bridged
(CH5) 1 x 250w @ 4 Ohms
(CH5) 1 x 425w @ 2 Ohms
(CH5) 1 x 650w @ 1 Ohms

Frequency Range -3dB: 4-39000 Hz
Damping Factor: 300
S/N ratio: > 107 dB
THD+N: < 0.02%
Input Sensitivity

Low-Level: 0,3 - 7,8V
High-Level: 0,7 - 15,6V

Channel 1/2

Crossover Modes: Full - HP-Copy
High Pass Filter: 50 - 5000 Hz

Channel 3/4

Crossover Modes: Full - HP - LP/BP
High Pass Filter: 10 - 500 Hz
Low Pass Filter: 50 - 5000 Hz

Channel 5

Subsonic Filter: 10 - 40 Hz
Low Pass Filter: 40 - 150 Hz
Bass Boost: 0 - 18 dB @ 45Hz
Phase Shift: 0 - 180

Start-stop capability: 8.5V
High Level Input with EPS : Yes
Auto Turn On: Via DC or Signal
Fuse Rating: 1 x 125A (external)
Dimensions: 295 x 45 x 150 mm
