M12

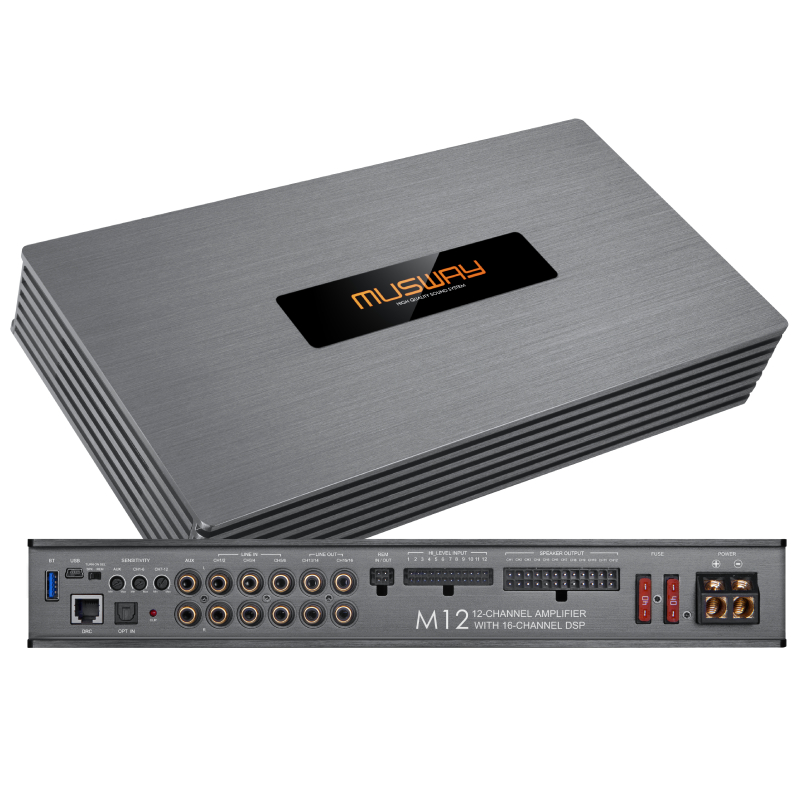

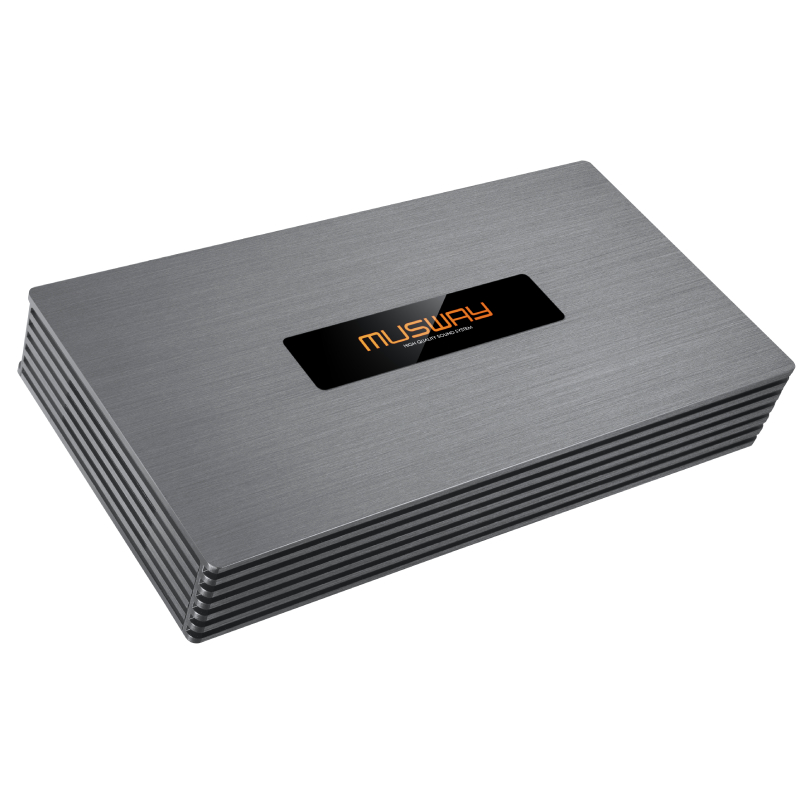

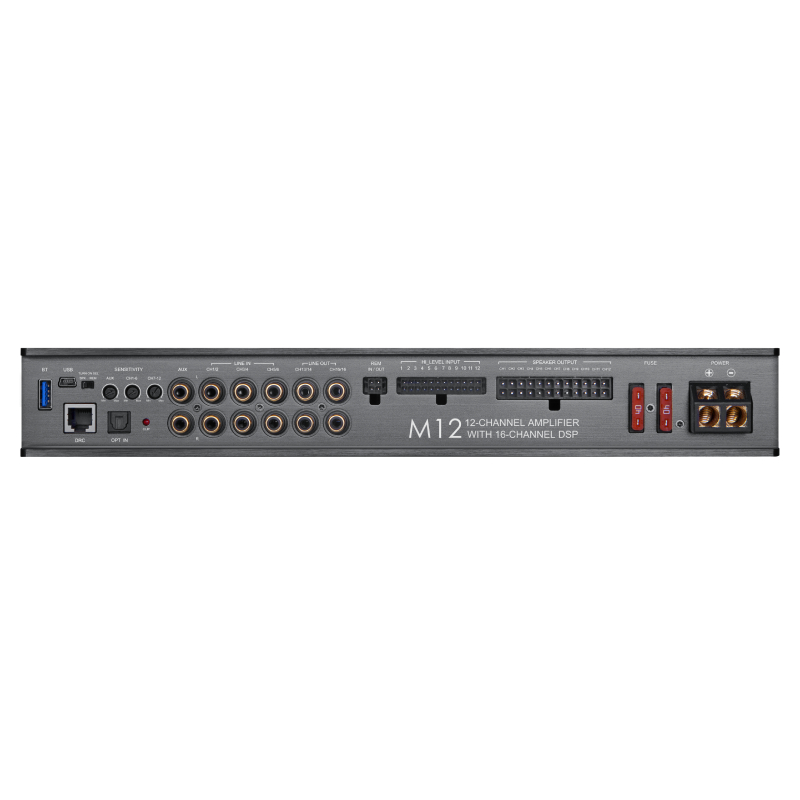

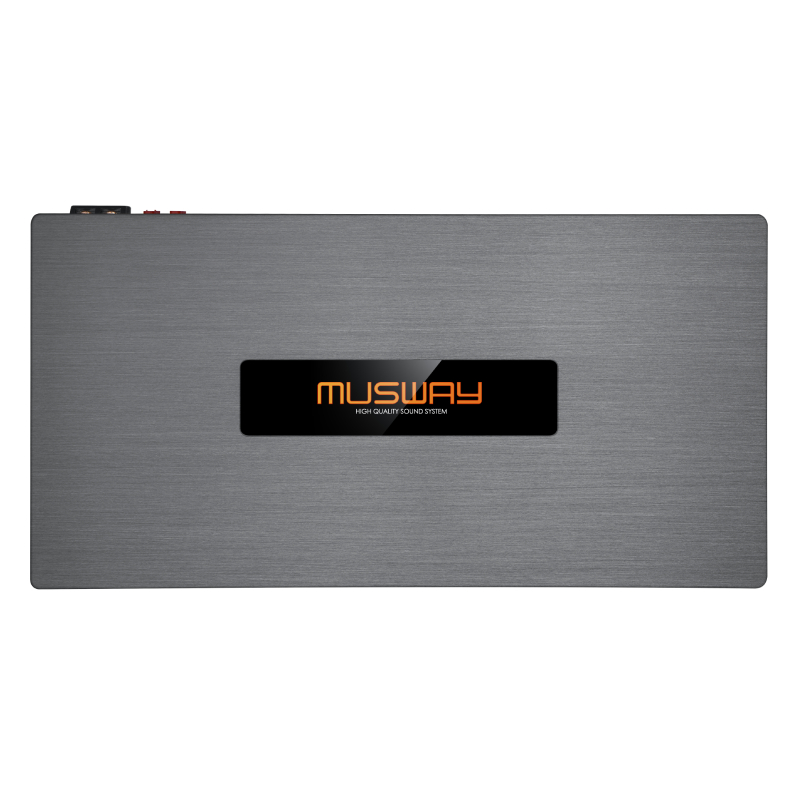

12 Channel Full Range Class D Amplifier with 16 Channel DSP
The elegant and well thought out MUSWAY M12 is groundbreaking. There truly is nothing else that can compare. The M12 has 12 channels of amplification featuring 12 x 85 Watts at 4 Ohms, 12 x 125 Watts at 2 Ohms and is bridgeable at 240 Watts @ 4 Ohms. It also offers 16 channels of Digital Sound Processing! The heart of the M12 is the ADAU1452 processor from Analog Devices®, which is highly coveted by audiophile connoisseurs. The M12 appeals to enthusiasts who want to be able to tune their complex loudspeaker system in the vehicle for the best possible playback and at the same time be able to control it easily without complex cabling or the installation of several devices.
Downloads:
×
![]()
M12 Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Reverse Trigger wire
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Clipping LED’s
- 12 x 85/125 Watts at 4/2 Ohms, 240 Watts at 4 Ohm Bridged
- Analog Devices Dual 32-Bit processor and Burr-Brown converters-330 MIPS digital input/output up to 192 KHZ sample rate.
- With the easy-to-use MUSWAY PC software, the M12 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet
- With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimension: 61(L) x 36(W) x 10(H)
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimension: 61(L) x 36(W) x 10(H)
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimension: 60(L) x 33(W) x 13(H)
MB-DRC
Digital Remote Control Mounting Bracket
Made in Aluminium
4 Mounting bracket holes
DRC-1 not included
For Use on the DRC-1
