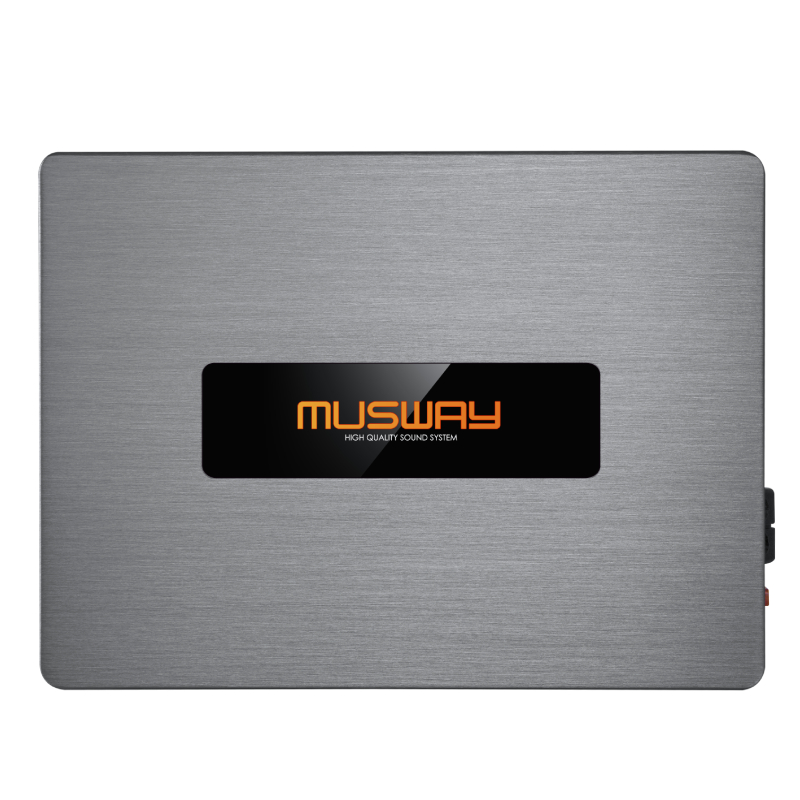

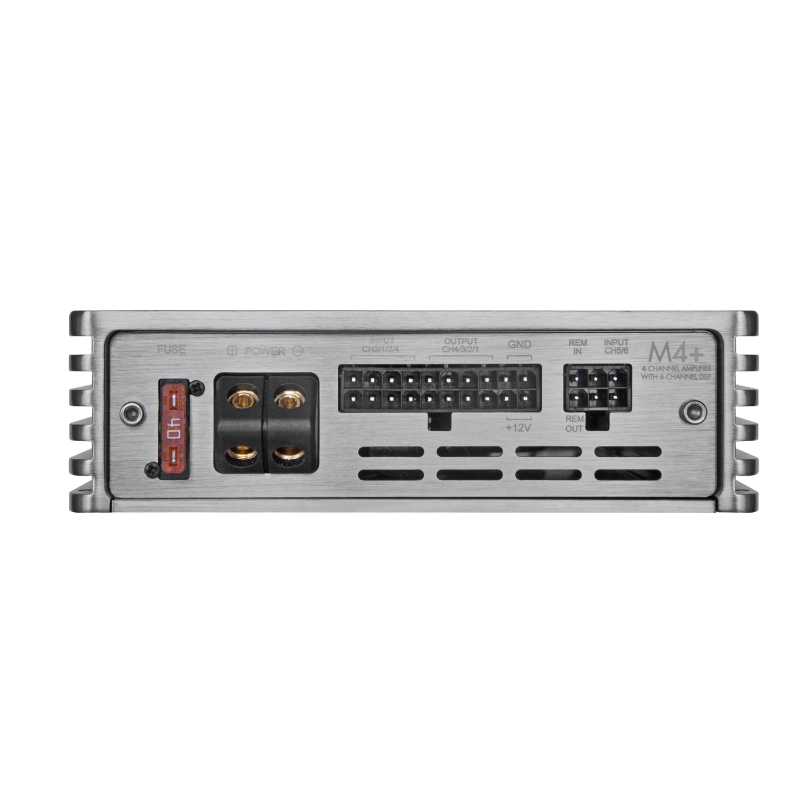

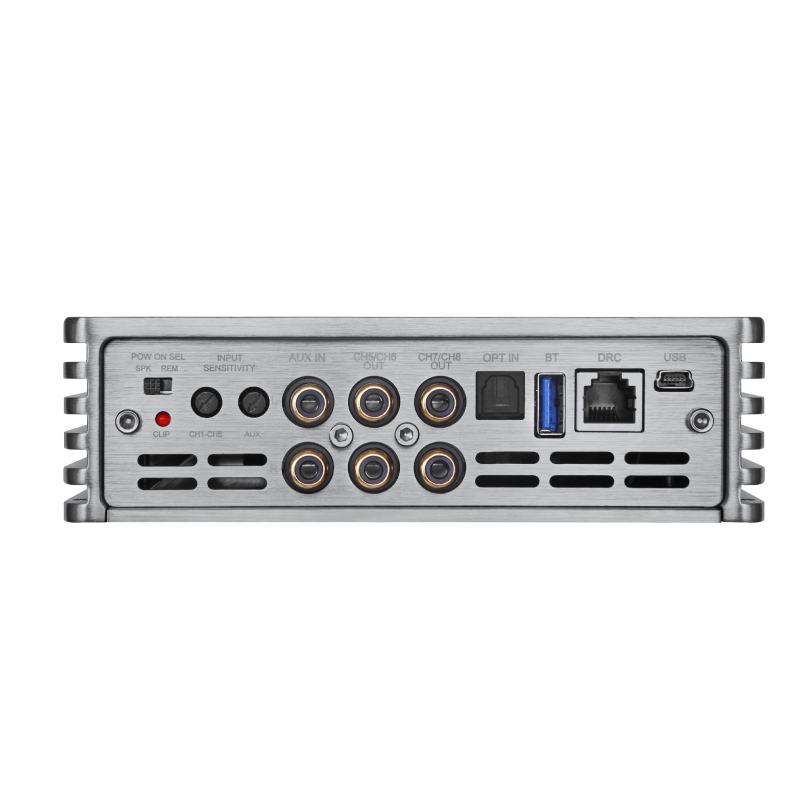

M4+
4-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor
The M4+ DSP/amplifier can be considered as the little brother of the M6 model as both models share the very compact heatsink. The main difference is the M4+ has not only have more power per channel but also has 4 DSP controlled pre-outs. The M4+ features 4 x 100 at 4 Ohms, 4 x 135 at 2 Ohms and is bridgeable to 2 x 270 watts at 4 Ohms.
Downloads:
×
![]()
How to convert M4+ inputs from High-Level to Low-Level.

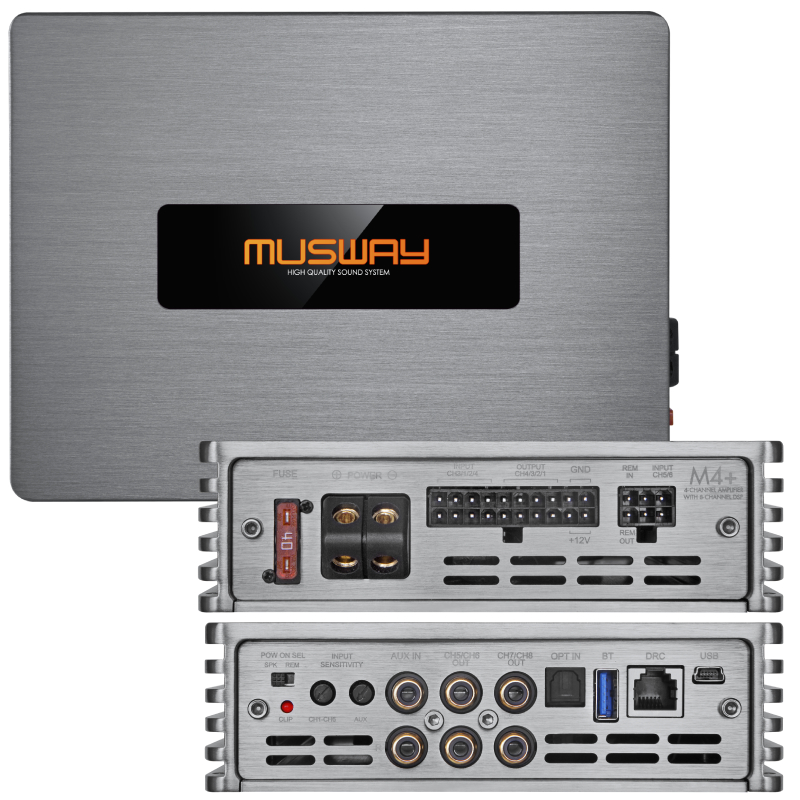

M4+ Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Clipping LED’s
- With the easy-to-use MUSWAY PC software, the M4+ can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet.
- With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimension: 61(L) x 36(W) x 10(H)
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimension: 61(L) x 36(W) x 10(H)
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimension: 60(L) x 33(W) x 13(H)
MB-DRC
Digital Remote Control Mounting Bracket
Made in Aluminium
4 Mounting bracket holes
DRC-1 not included
For Use on the DRC-1
PK-RCA6
RCA Input
Molex Harness RCA Inputs
Designed exclusively for M4+/M6 amplifiers
