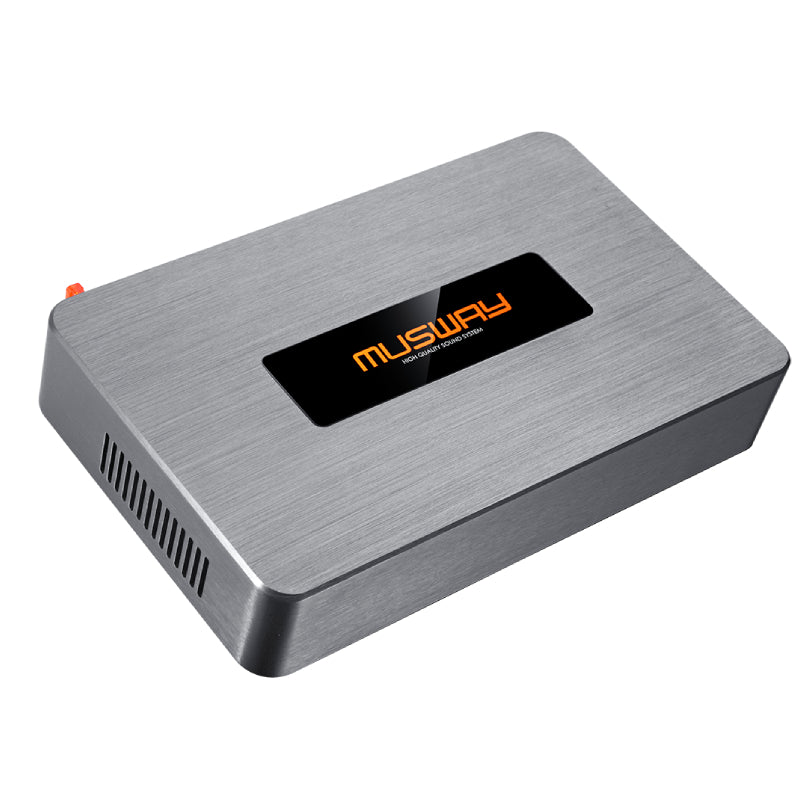

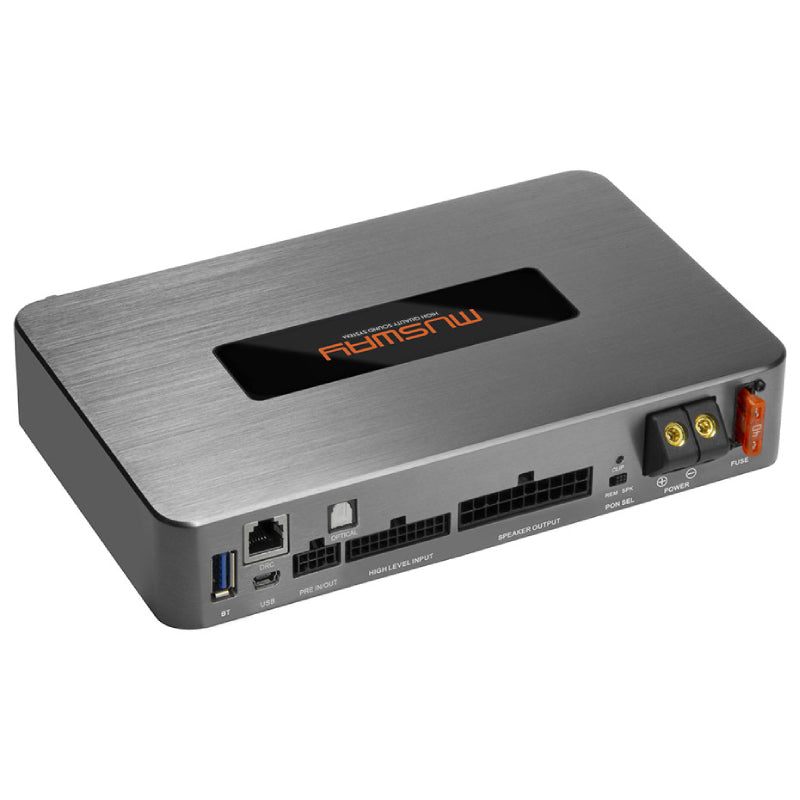

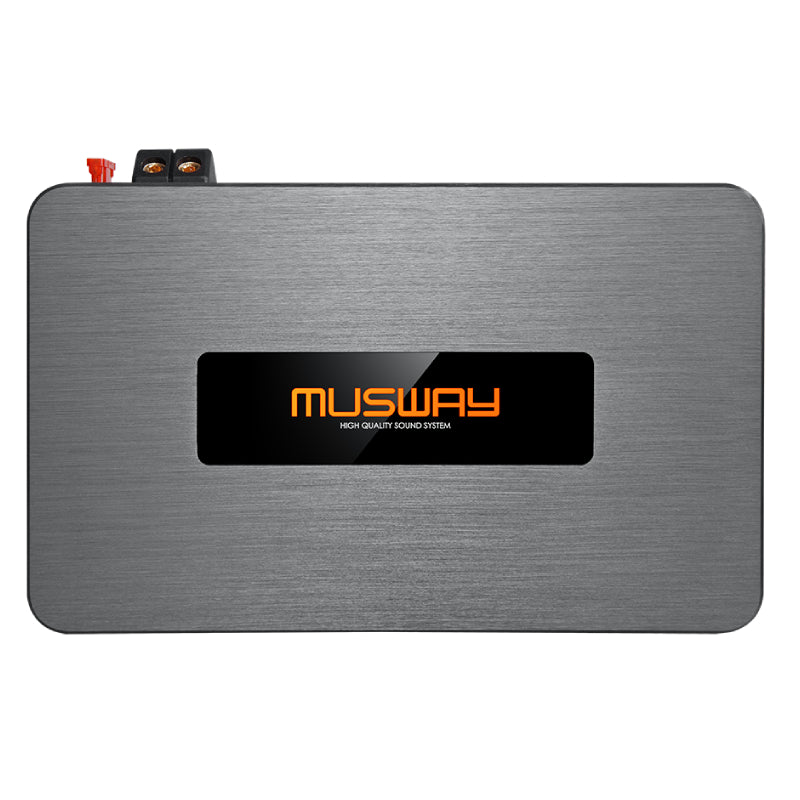

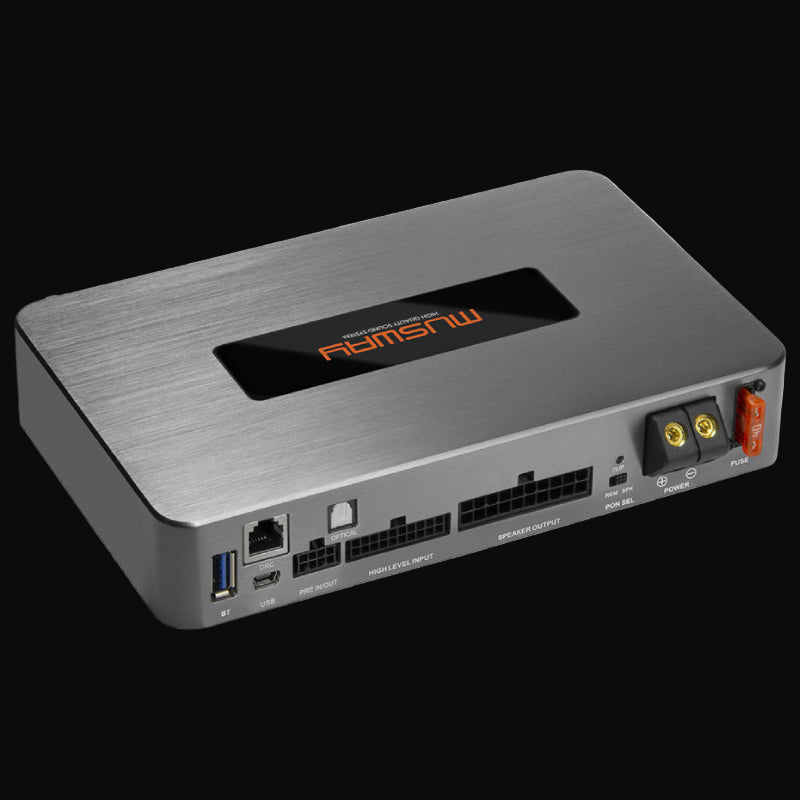

D8 Car Amplifiers

Name: D8 Car Amplifiers
Brand: Musway
SKU: D8v3
Price: 1086.95 USD
Availability: InStock

Vendor: Musway

$1,086.95

$1,086.95 ~~$1,231.95~~

Shipping calculated at checkout.

Modern
Free-Shipping
Warranty

Hurry up, only 6 items left in stock.

8-Channel Full Range Class-D Amplifier with 10-Channel Digital Sound Processor 75Wx8 @ 2 Ohms-13.8V - 150Wx4 @ 4 Ohms Bridged-13.8V

Product Overview

D8 Product Overview
Start-Stop ready
EPS (Intelligent High-Level Input-Error Protection System)
Brushed aluminum heat sink and end panels
Auto Turn On via DC Offset or Signal Sensing
Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
Output Clipping LED
With the easy-to-use MUSWAY PC software, the D8 can be configured perfectly and in real time via PC or the new app for your smartphone or tablet.
With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.

Product Prower

OUTPUT POWER (RMS) at 13.8 VDC, 1% THD:
8 x 50 Watts RMS @ 4 Ohms
8 x 75 Watts RMS @ 2 Ohms
4 x 150 Watts RMS @ 4 Ohms bridged
OUTPUT POWER (RMS) at 14.4 VDC, 1% THD:
8 x 65 Watts RMS @ 4 Ohms
8 x 90 Watts RMS @ 2 Ohms
4 x 360 Watts RMS @ 4 Ohms bridged
8 x High Level Input 10 – 18 V RMS
1 x AUX Input/Stereo (RCA) 8 V RMS

Product Specifications

Product Specifications:

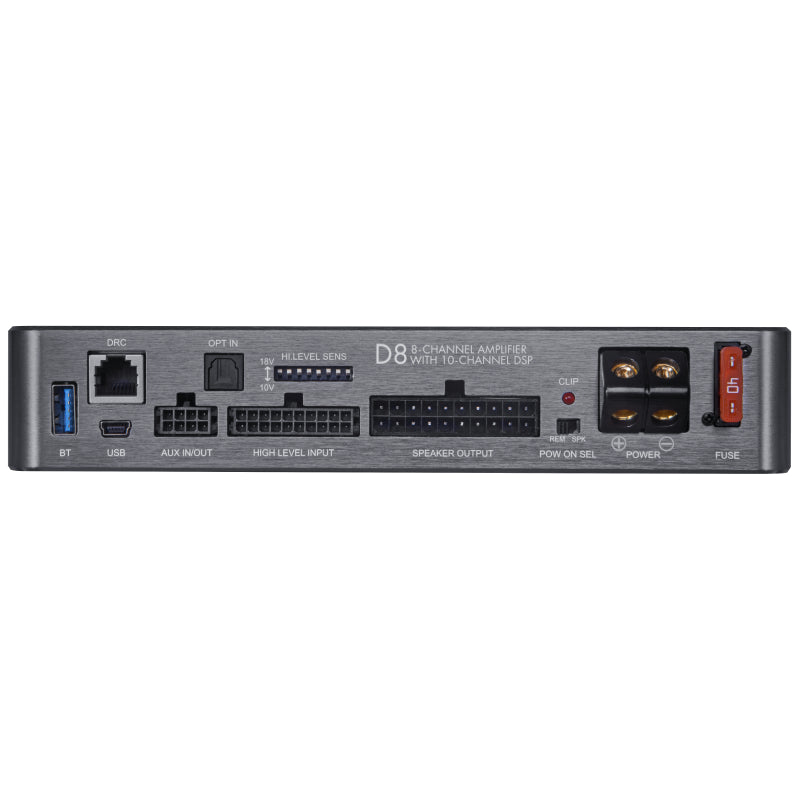

1 x Optical Input/Stereo (PCM, 192 kHz / 24 bit)
8 x Loudspeaker Output amplified
2 x Pre-Amplifier Output (RCA) 4 V RMS (configurable via DSP)
Dimensions: 3.85 x 6.49 x 1.30 Inches

What's Inside?

D8 8-Channel Full Range Class D Amplifier with 10-Channel DSP
Owner’s Manual
High Level Input Harness
Low Level (RCA) Input Harness
High Level Output Harness
USB Tuning Cable
Extra 40-amp ATC Fuse
Mounting Hardware

Extremely compact audio power plant

The MUSWAY D8 is an extremely compact audio power plant in a shapely housing with eight amplifier channels and 10-Channels of Digital Sound Processing. The D8 features 8 x 50/75 watts at 4/2 ohms and is bridgeable at 150 watts x 4 at 4 ohms. The centerpiece is the high end dual 32 bit, 330 MIPS DSP processors from Texas Instruments which are controllable via PC software or the new MUSWAY app for your smartphone or tablet.

Advance Amplifier Features

Start-Stop ready with advanced features including EPS error protection, brushed aluminum heat sink, auto turn-on via DC offset or signal sensing, 4-fold laminated circuit boards for compact size and EMI suppression, clipping LEDs, versatile inputs and outputs, PC and app configuration, optional Bluetooth dongles for audio streaming and DSP control, and an optional DRC1 digital remote control with OLED display.

Free International Shipping
Free Returns Within 30 days

Limited time offer

Don’t miss out on this limited-time advantage crafted for you

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Downloads

Owner's Manual

Test Review

DSP Software

Optional Accesories

BTS

Bluetooth USB - Dongle

External Bluetooth USB Dongle for Audio Streaming

For Use on the M4, M4+, M6, D8, and DSP68

Dimension: 61(L) x 36(W) x 10(H)
