Product Overview

D1S Product Overview

🔹 Smart Signal Processing: Equipped with EPS (Intelligent High-Level Input Error Protection System) and Start-Stop readiness, the Musway D1S ensures reliable performance in modern vehicles with advanced electrical systems.

🔹 Built-in Hi-Fi Converter: Features an integrated 4-channel high-performance high-to-low converter, providing Hi-Fi sound quality with ultra-low noise, ideal for upgrading factory audio systems.

🔹 Seamless Bluetooth Streaming: The internal Bluetooth module allows high-fidelity audio streaming directly from your smartphone, delivering crisp and clear sound without external adapters.

🔹 Smart Auto Turn-On: For vehicles without an ACC wire, the D1S supports signal-sensing auto on/off, ensuring convenient and automatic amplifier activation.

🔹 Advanced DSP Technology: Powered by a 28-bit DSP main chip, the D1S supports 10-band parametric EQ, digital crossovers, and time alignment, giving you complete control over your sound tuning.

🔹 Flexible Input & Output Options:


  • Inputs: 4 x High-Level, 2 x AUX/RCA

  • Outputs: 4 x High-Level, 6 x Low-Level (RCA) — all configurable via DSP software for versatile system setups.

🔹 User-Friendly Configuration: With the intuitive MUSWAY PC software, you can fine-tune the D1S in real time for optimal sound performance tailored to your vehicle and preferences.

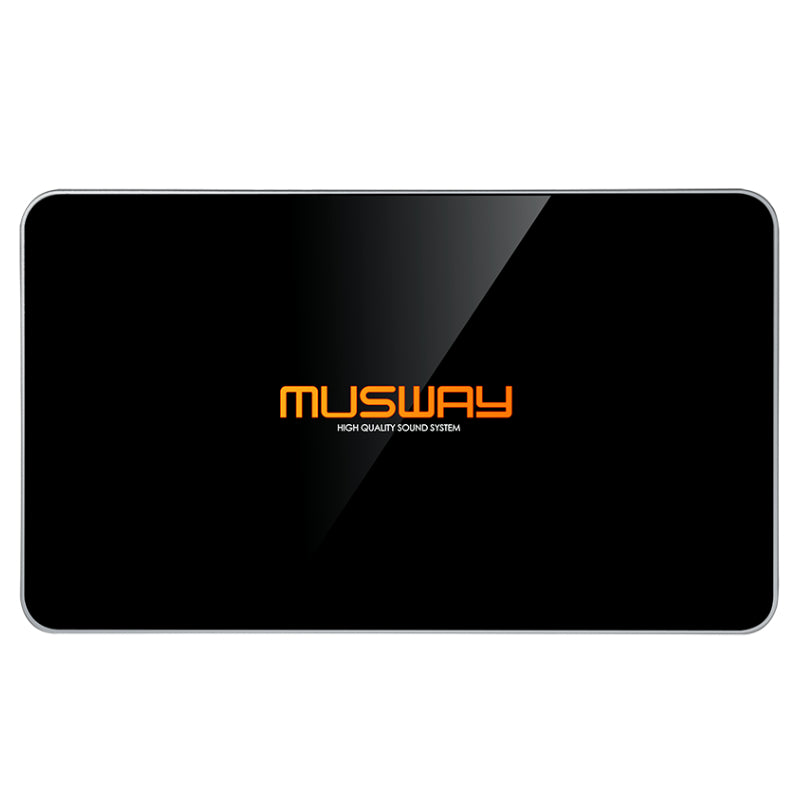

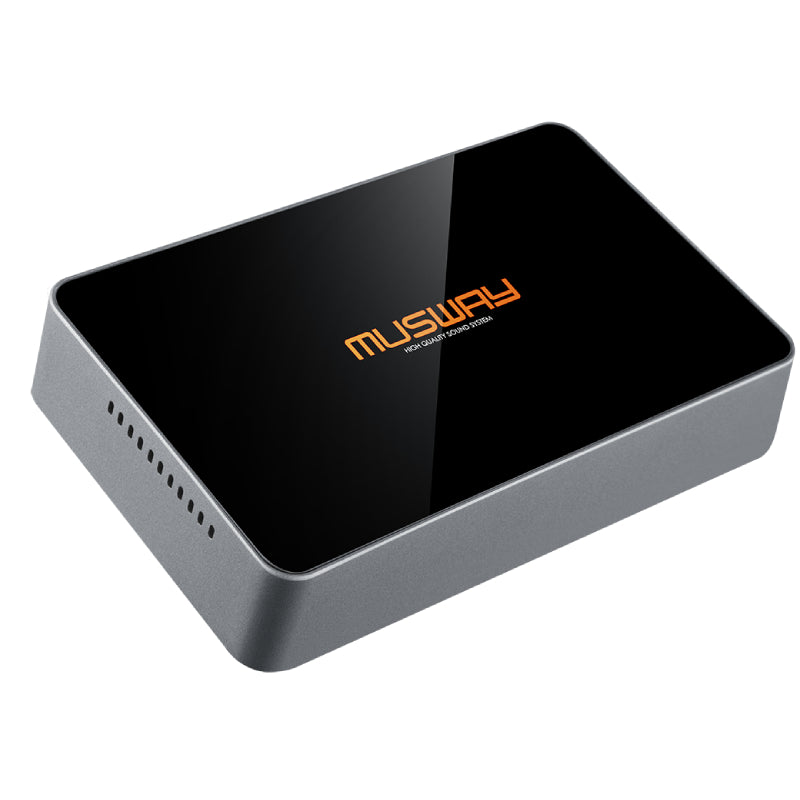

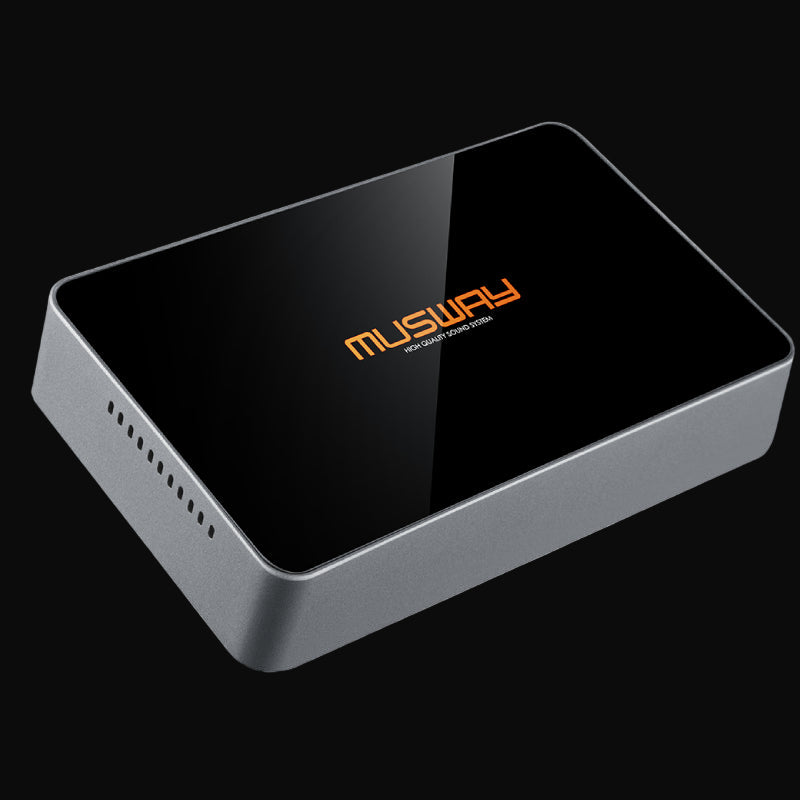

Musway D1S

Product Specifications

4-Channel Full Range Class-AB Amplifier with 6-Channel DSP
Power Output:
4 × 25 W @ 4 Ω
Frequency Response: • Full-range (DSP-dependent)
THD: • 0.022% (1 kHz @ 4 Ω, 90% power)
S/N Ratio: • 95 dB (A-weighted, 1 V, max power)
Minimum Load Impedance: 4 Ω

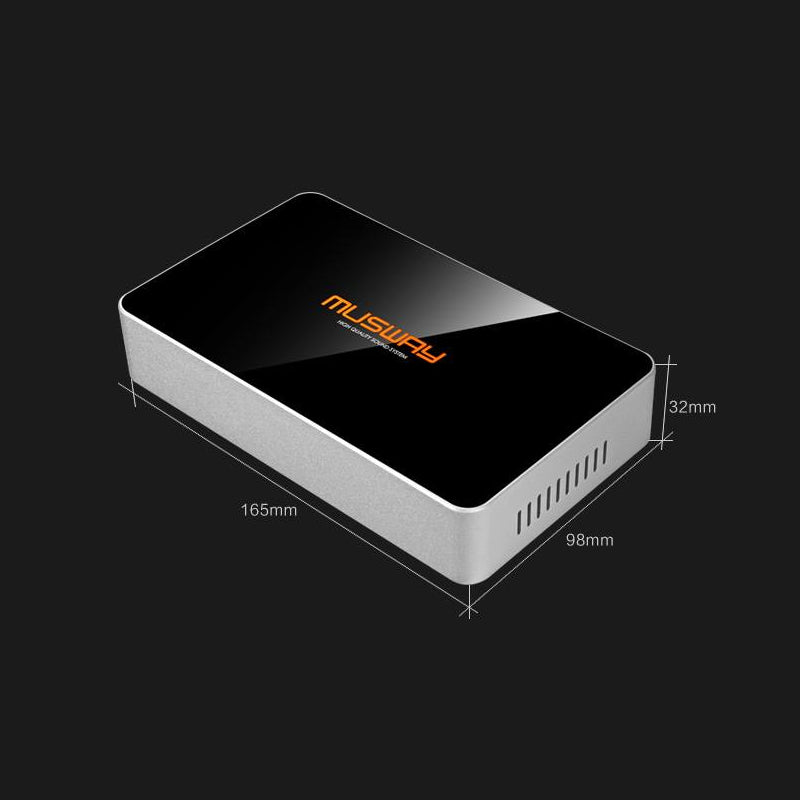

Dimensions: 6.50" (L) × 3.86" (W) × 1.26" (H)

Product Description

What's Inside?

  • 1 - D1S 4-Channel Class AB Amplifier with 6-Channel Digital Sound Processor
  • 1 - Owner’s Manual
  • 1 - Power Harness
  • 1 - Input/Output Harness
  • 1 - USB Tuning Cable

All new D1S Amplifier with DSP

The new D1S is a remarkable value for the new to DSP user or the budget conscious audiophile. The D1S features 4 x 38 watts @ 2 Ohms with 6 channels of Digital Sound Processing. The 28 bit DSP main chip supports the 10 band parametric EQ, digital crossovers and time correction. The D1S can also be used as a stand alone DSP processor via the 6 low-level RCA outputs. The new entry level D1S is loaded with features and is an undeniable value.


D1S Additional Features
  • EPS (Intelligent High-Level Input-Error Protection System)
  • Start-Stop ready
  • With the easy-to-use MUSWAY PC software, the D1S can be configured perfectly and in real time via PC
  • Built in 4-Channel high performance high to low converter, Hi-Fi sound quality and low noise
  • Internal Bluetooth Module: Hi-Fi Bluetooth for Audio Streaming.
  • For cars without ACC wire, speaker wire can be used turn on/off amplifier
  • 28-bit DSP main chip supports the 10-band parametric EQ, digital crossovers and time correction.

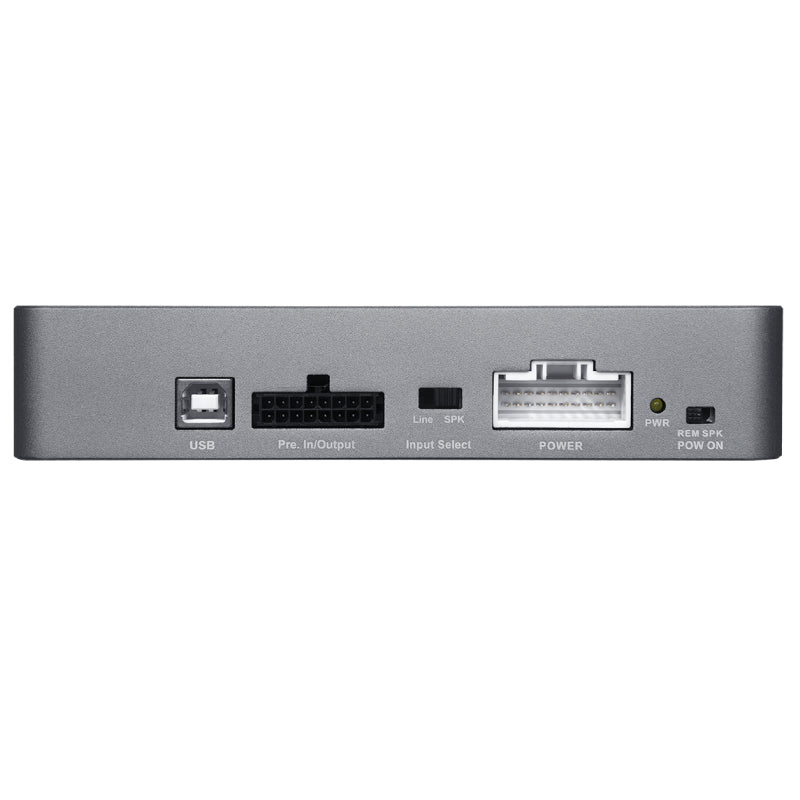

  • Input: 4 x High-Level, 2 x AUX/RCA
  • Output: 4 x High-Level, 6 x Low-Level (RCA) (Configurable via DSP Software)

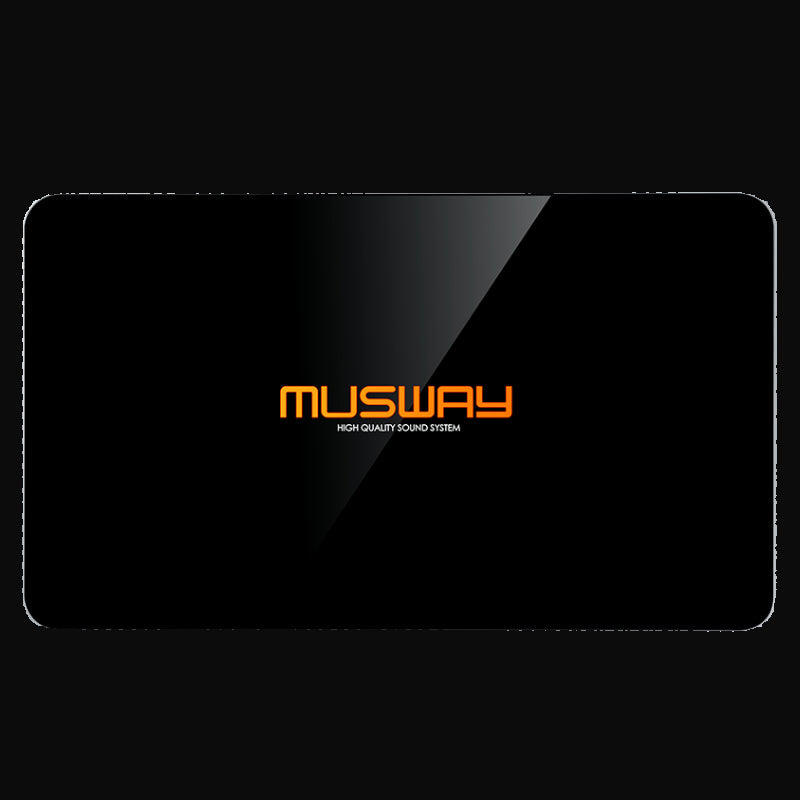

Musway D1S Processors
Load video:

Optional Accesories
