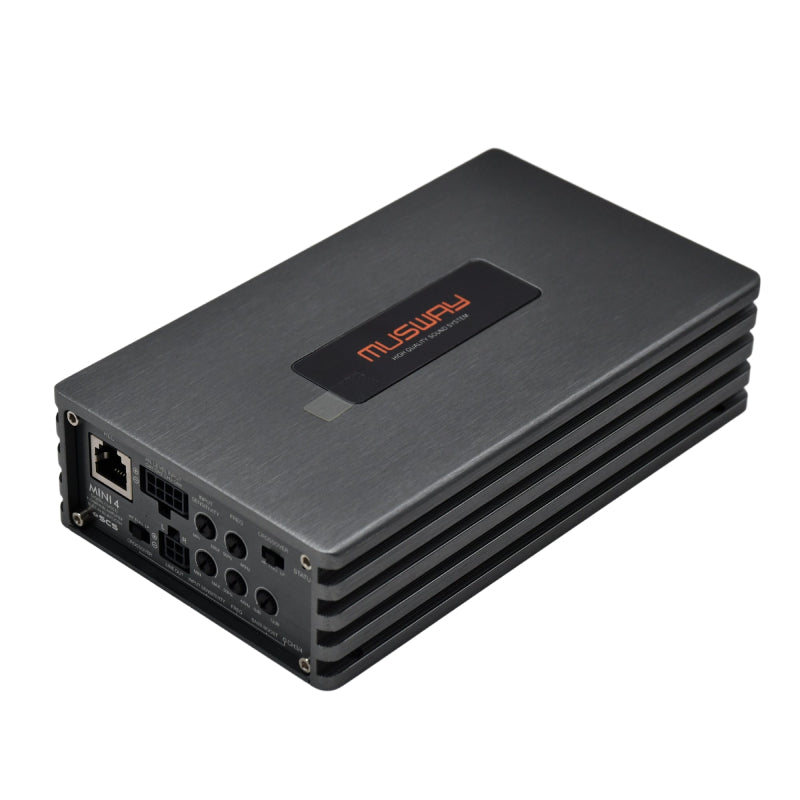

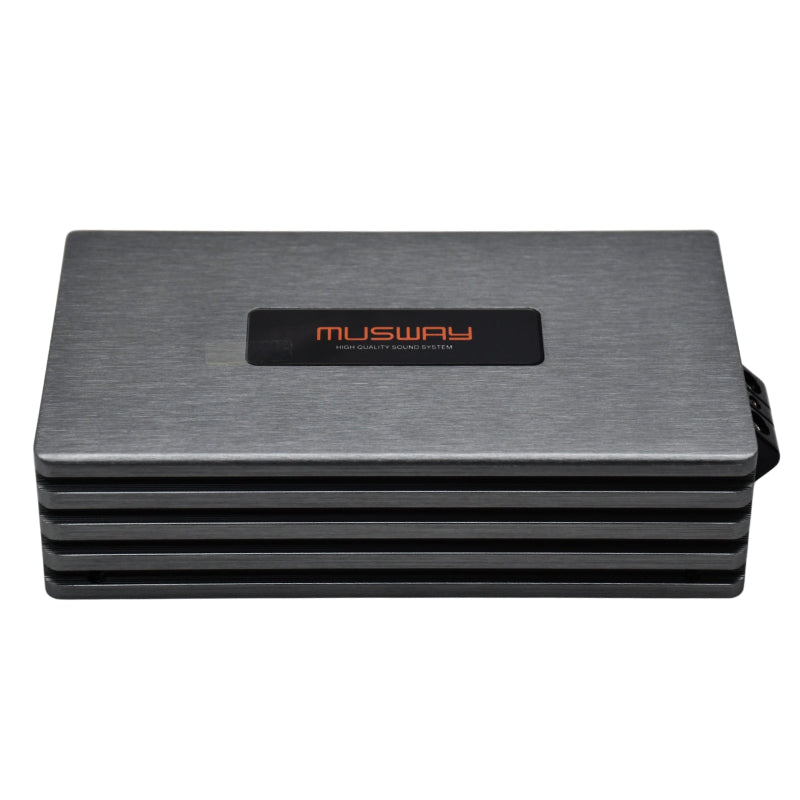

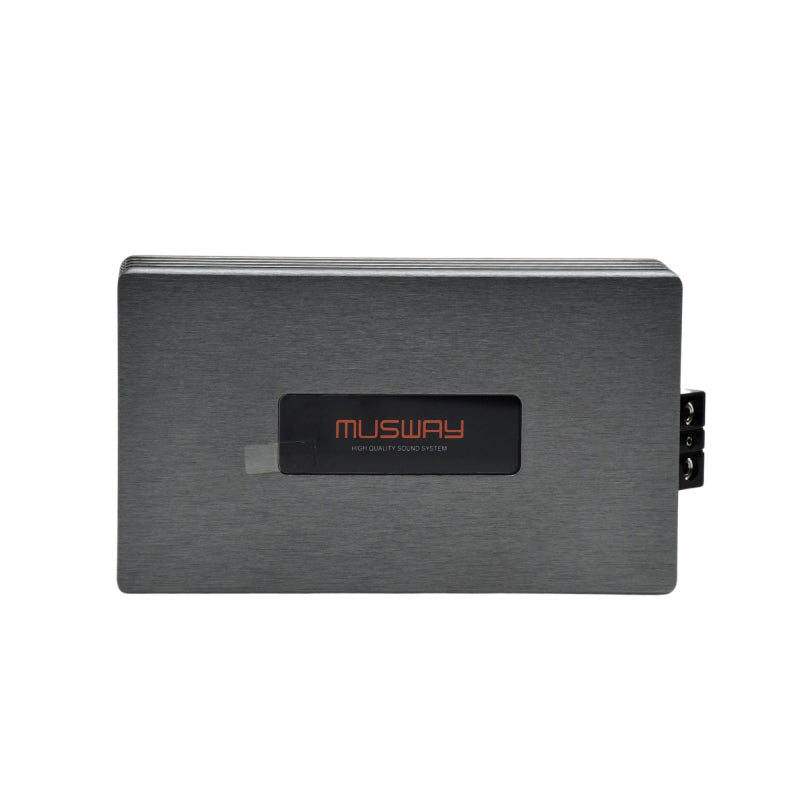

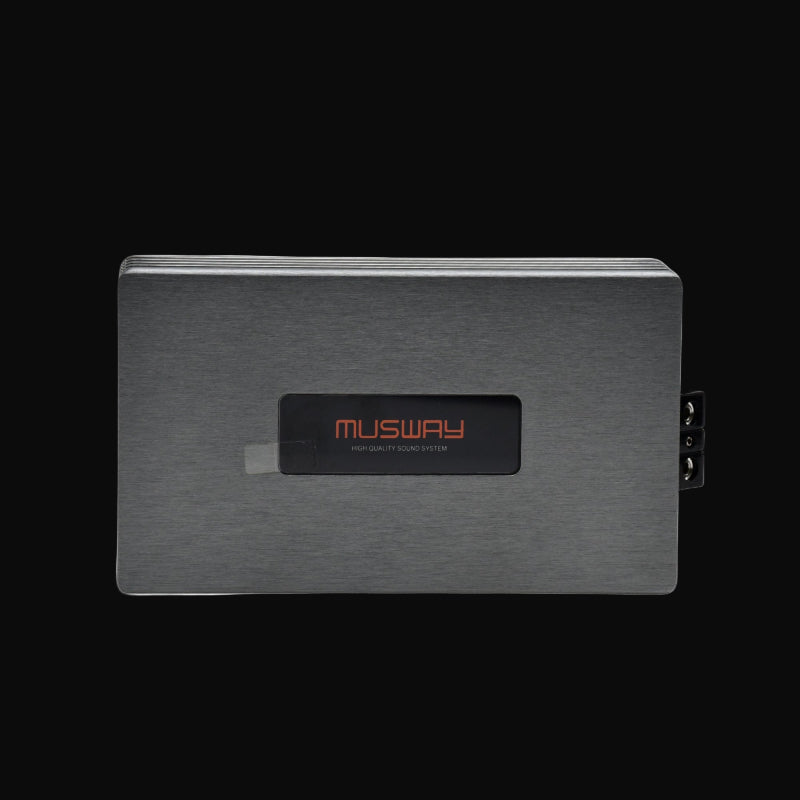

MINI4S

MINI4S Product Overview
• 760 Watts RMS Total Power Output
• 4-Channel Class D Amplifier with Integrated Bluetooth Audio Streaming
• Start-Stop ready
• EPS (Intelligent High Level Input Error Protection System)
• Auto Turn-On via DC Offset or Signal Sensing
• High- and Low-Level Inputs
• RCA (Low Level) Output
• Wide Frequency Response: 10 Hz – 40 kHz
• Input Sensitivity:
• RCA: 0.5V – 6V
• High-Level: 2V – 20V
• Brushed Aluminum Heat Sink and End Panels
• Utilizes 4-fold laminated circuit boards to suppress EMI (RF interference); meets strict European EMI standards
• Compact Size: 7.09 x 4.33 x 1.81 in (180 x 110 x 46 mm)
• Remote Level Controller Included

• OUTPUT POWER RMS @ 13.8V:
4 x 120W @ 4 Ohms
4 x 200W @ 2 Ohms
2 x 400W @ 4 Ohms (bridged)
• OUTPUT POWER RMS @ 14.4V:
4 x 131W @ 4 Ohms
4 x 218W @ 2 Ohms
2 x 435W @ 4 Ohms (bridged)

Product Specifications:
• Frequency Range -3dB: 4 – 39,000 Hz
• Damping Factor: 300
• S/N Ratio: > 107 dB
• THD+N: < 0.02%
• Input Sensitivity:
• 5V – 0.2V
• Channel 1/2:
• Crossover Modes: Full - HP-Copy
• High Pass Filter: 50 – 5000 Hz
• Channel 3/4:
• Crossover Modes: Full - HP - LP/BP
• High Pass Filter: 10 – 500 Hz
• Low Pass Filter: 50 – 5000 Hz
• Bass Boost: 0 – 12 dB @ 45 Hz
• Start-Stop Capability: 8.5V
• High Level Input with EPS: Yes
• Auto Turn-On: Via DC or Signal
• Fuse Rating: 1 x 70A (external)
• Dimensions: 220 x 45 x 150 mm
