Type: Amplifiers

SKU: M10

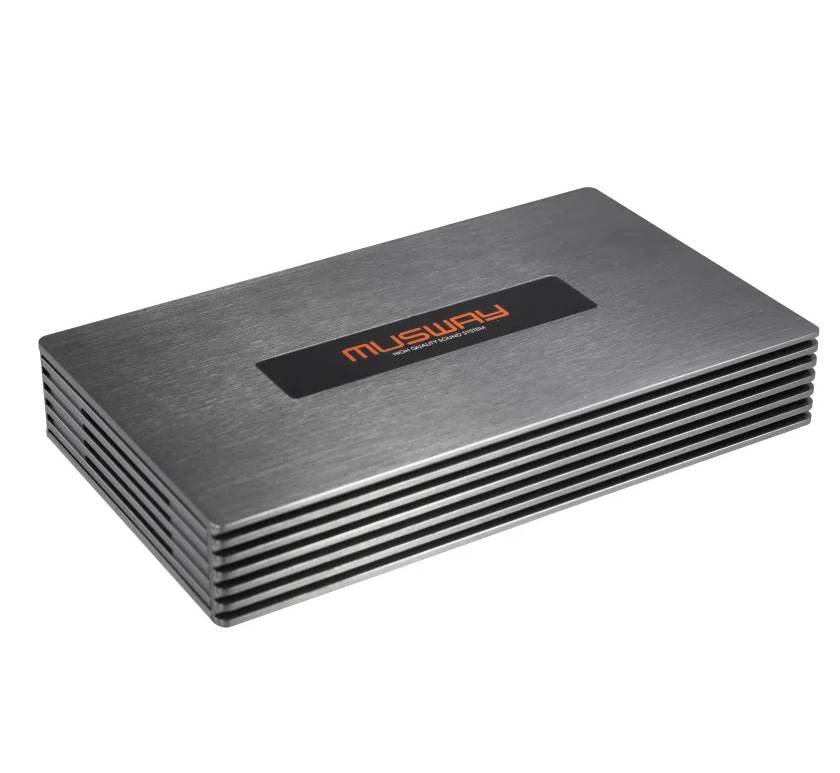

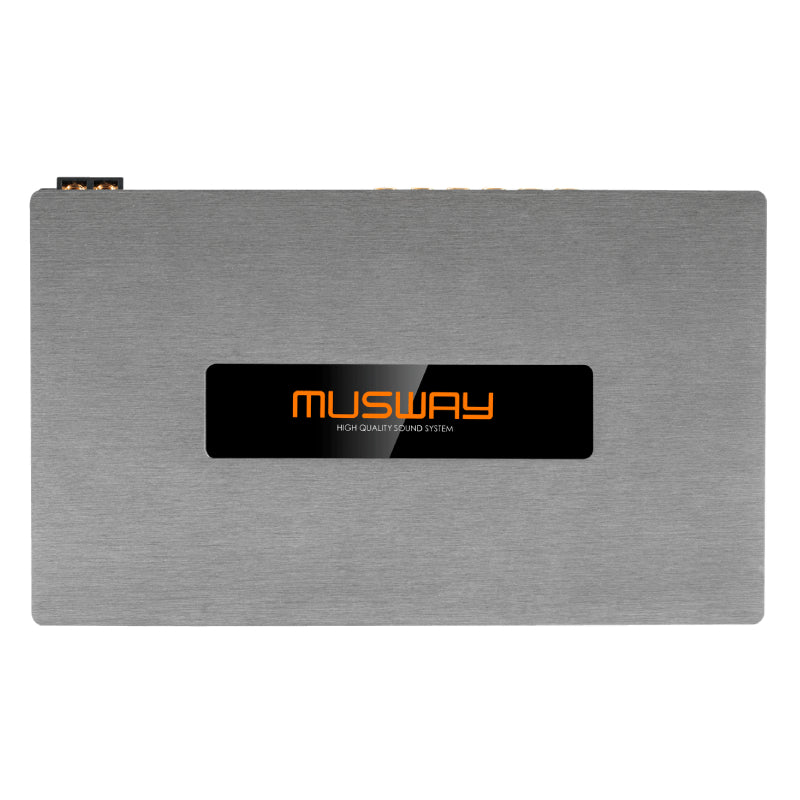

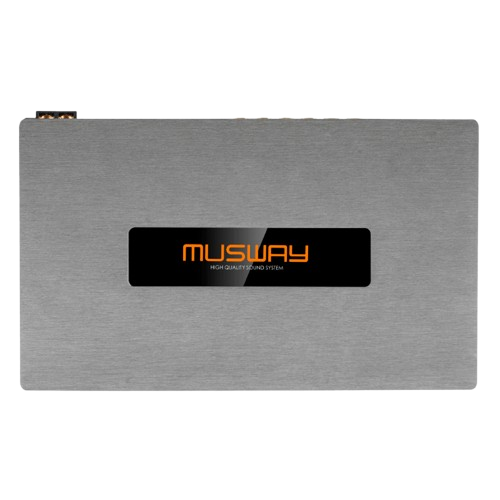

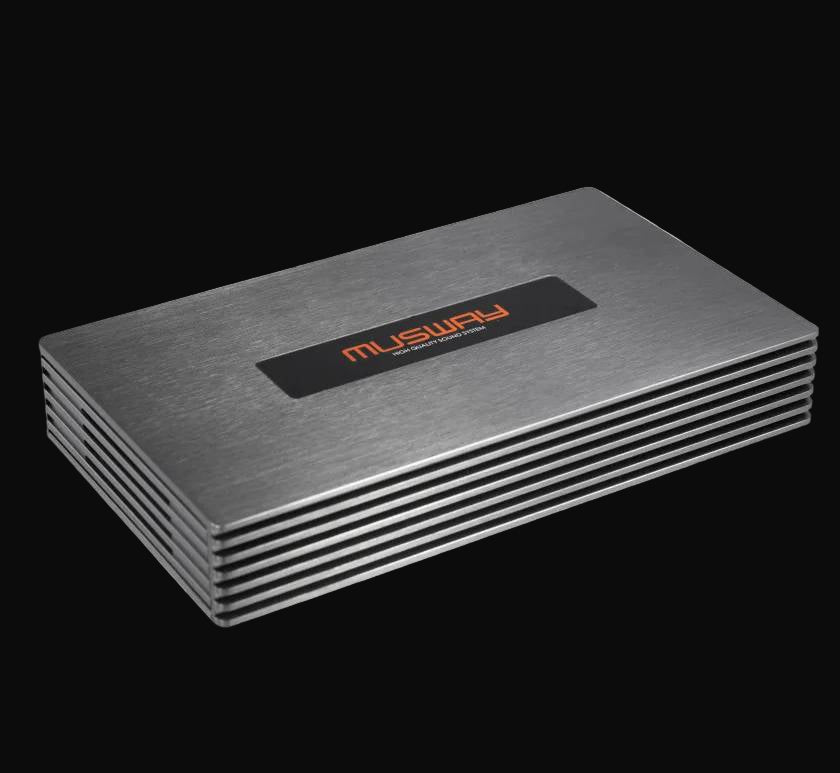

Musway M10 512K

Name: Musway M10 512K
Brand: Musway
SKU: M10
Price: 2334.95 USD
Availability: InStock

10-Channel Full Range Class-D Amplifier with 14 Channel DSP 8 × 155 W | 2Ω (DHR*)

$2,334.95 USD

Shipping calculated at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Nationwide Shipping
Free Returns Within 30 days

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock restock expected in 2 to 3 weeks

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

Share:

Downloads

Owner's Manual ↘

DSP Software ↘

Overview:

⚡ Musway M10 Product Overview

🔹 Precision DSP Engineering: Equipped with Burr-Brown converters (PCM3168A) and an Analog Devices ADAU1466 DSP, the Musway M10 harnesses 32-bit / 295 MHz processing power to deliver crystal-clear, distortion-free sound across every channel.

🔹 Start-Stop Ready & Smart Protection: Designed with an Intelligent High-Level Input (Error Protection System), the M10 ensures reliable performance and compatibility with modern vehicles. Auto Turn-On via DC offset or signal sensing makes integration seamless.

🔹 Exceptional Audio Clarity: Experience a signal-to-noise ratio of ≥95dB and THD ≤0.05% (1kHz, 4Ω, 90% Power), ensuring ultra-clean, accurate playback with dynamic detail and depth.

🔹 Wide Frequency Response: With an impressive 15 Hz – 22 kHz (-3 dB) range, the M10 reproduces deep bass and pristine highs with precision, bringing every note to life.

🔹 Flexible Control & Configuration: Adjust with ease using separately controllable input sensitivity for Channels 1–8, Channels 9–10, and AUX inputs. Clipping LEDs provide instant visual feedback for accurate tuning.

🔹 Advanced Software & App Tuning: Configure your system effortlessly via the new V3 PC software or the Musway TuneSt App for real-time DSP adjustments and personalized sound optimization.

🔹 Optional Wireless & Remote Control: Expand functionality with Bluetooth® USB dongles (BTS, BTS-HD & BTA2) for audio streaming and app control, or add the DRC1 digital remote control with OLED display for convenient in-vehicle tuning.

0:00 / 0:00

Specifications:

10-Channel Full Range Class D Amplifier with 14-Channel Digital Sound Processor 512k
Power Output:
• 8 × 80 W @ 4Ω + 2 × 120 W @ 4Ω
• 8 × 135 W @ 2Ω + 2 × 220 W @ 2Ω
• 8 × 155 W @ 2Ω (DHR*)
• Bridged: 4 × 270 W @ 4Ω + 1 × 440 W @ 4Ω
• 4 × 310 W @ 4Ω (DHR*)
Dimensions: 11" (W) × 6.5" (H) × 1.79" (L)

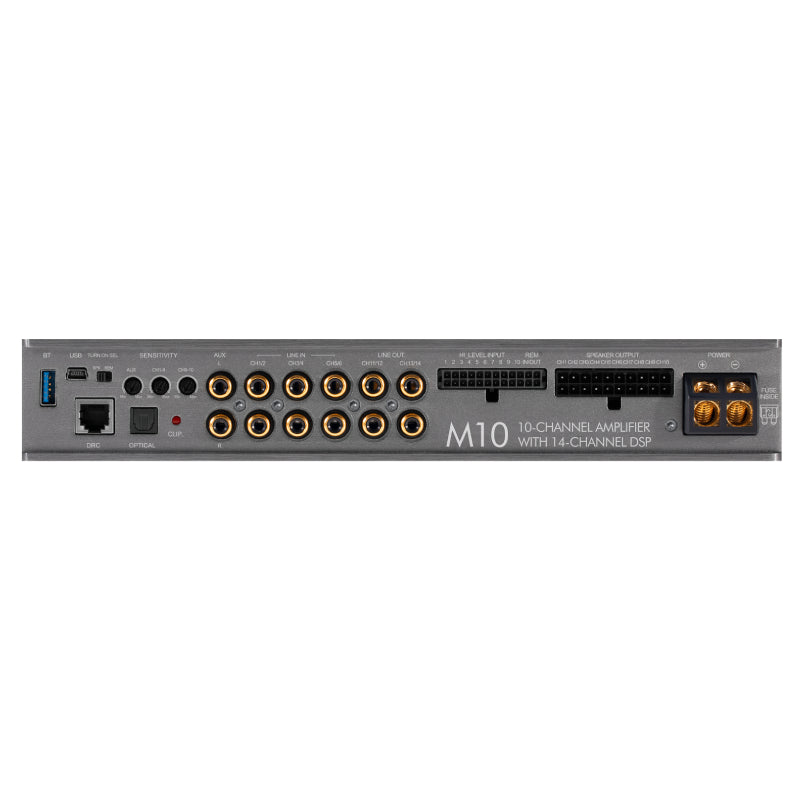

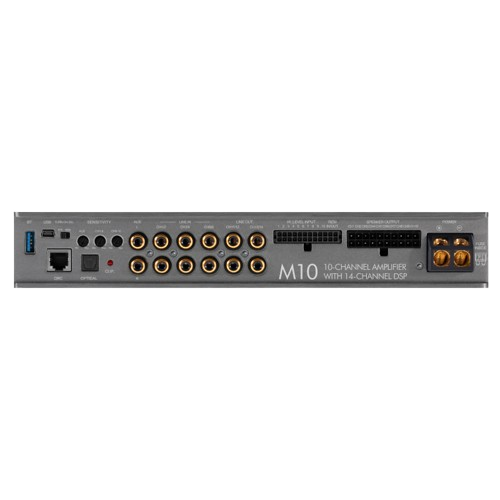

Inputs: CH1–8 High-Level 8–24 V
CH9–10 High-Level 8–32 V
Low-Level 2–6 V
AUX 1–8 V
• Frequency Response: 5 Hz – 22 kHz
• S/N Ratio: 95 dB (A-weighted)
• THD: 0.01% (1 kHz @ 4Ω, 10 W)
• Damping Factor: >100
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

Description:

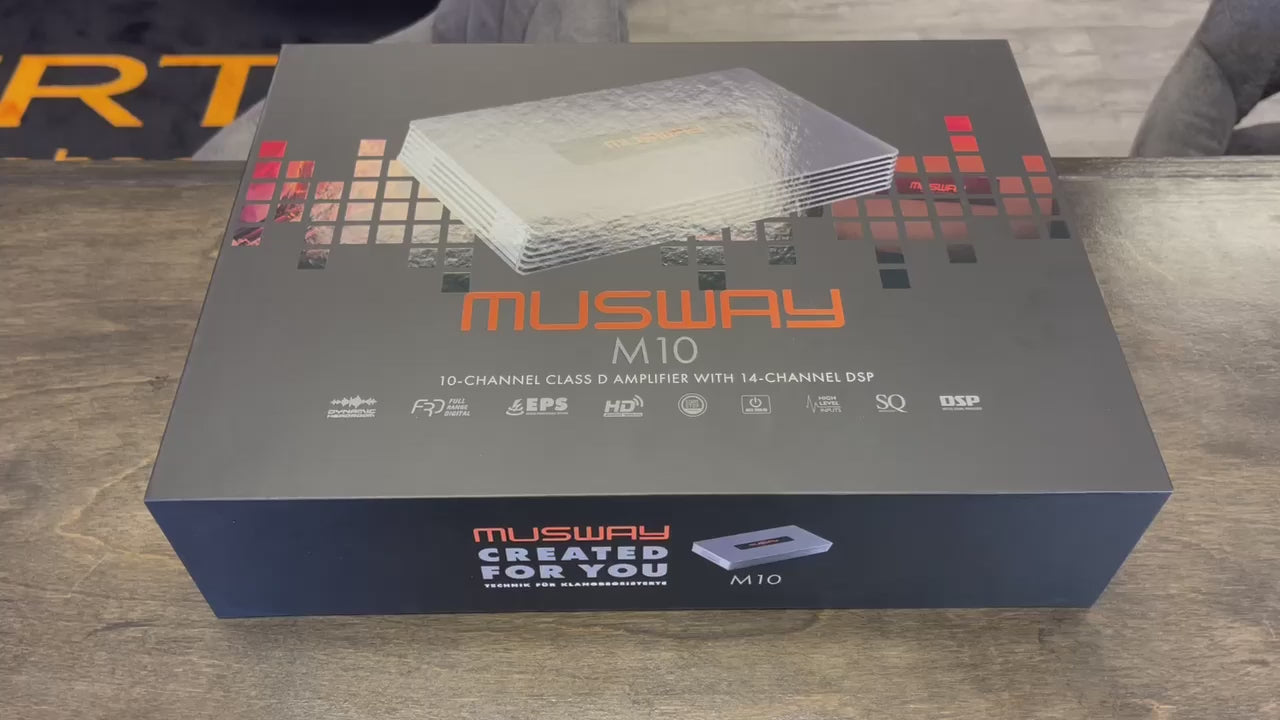

What's Inside?

10-Channel Amplifier with 12-Channel Advanced Digital Sound Processor
Owner’s Manual
USB Tuning Cable

Pressure for Reliable Cooling

The M10 relies on a classic transformer solution for the power supply, which may cost some efficiency, but performance is not a problem. Musway has hidden the digital section on the underside of the board on the heat sink side. Four mounting holes of the typical size can be seen, and based on our experience with the M12, a 32-bit ARM processor, an ADAU1452 DSP or a related Sigma processor from Analog Devices, and two PCM3168 audio codecs with AD and DA converters are likely to be hidden underneath.

Can Be Driven on High-Powered Channels

All channels can also be bridged so that a subwoofer with 444 watts can be driven on the high-power channels. And as if that wasn‘t impressive enough, the M10 comes into its own when all channels are loaded. With 10 x 2-ohm load resistors, the power output adds up to an impressive. With the M10, Musway has created a powerful and universally applicable sound tool. Anyone who can cope with the 8+2 channel confi guration should shortlist the M10

BTS

Bluetooth USB - Dongle

External Bluetooth USB Dongle for Audio Streaming

For Use on the M4, M4+, M6, D8, and DSP68

Dimension: 61(L) x 36(W) x 10(H)
