M6 Car Amplifiers

Name: M6 Car Amplifiers
Brand: Musway
SKU: M6
Price: 951.95 USD
Availability: InStock

Vendor: Musway

$951.95

$951.95 ~~$1,063.95~~

Shipping calculated at checkout.

Modern
Free-Shipping
Warranty

Hurry up, only 1 item left in stock.

6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor 105Wx6 @ 2 Ohms-13.8V - 210Wx3 @ 4 Ohms Bridged-13.8V

Product Overview

M6 Product Overview
• Start-Stop ready
EPS (Intelligent High-Level Input-Error Protection System)
Brushed aluminum heat sink and end panels
Auto Turn On via DC Offset or Signal Sensing
Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
• Output Clipping LED
With the easy-to-use MUSWAY PC software, the M6 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet.
With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.

Product Prower

• OUTPUT POWER (RMS) @ 13.8 VDC, 1% THD
• 6 x 70 Watts RMS at 4 Ohms
• 6 x 105 Watts RMS at 2 Ohms
• 3 x 210 Watts RMS at 4 Ohms bridged

Product Specifications

Product Specifications:

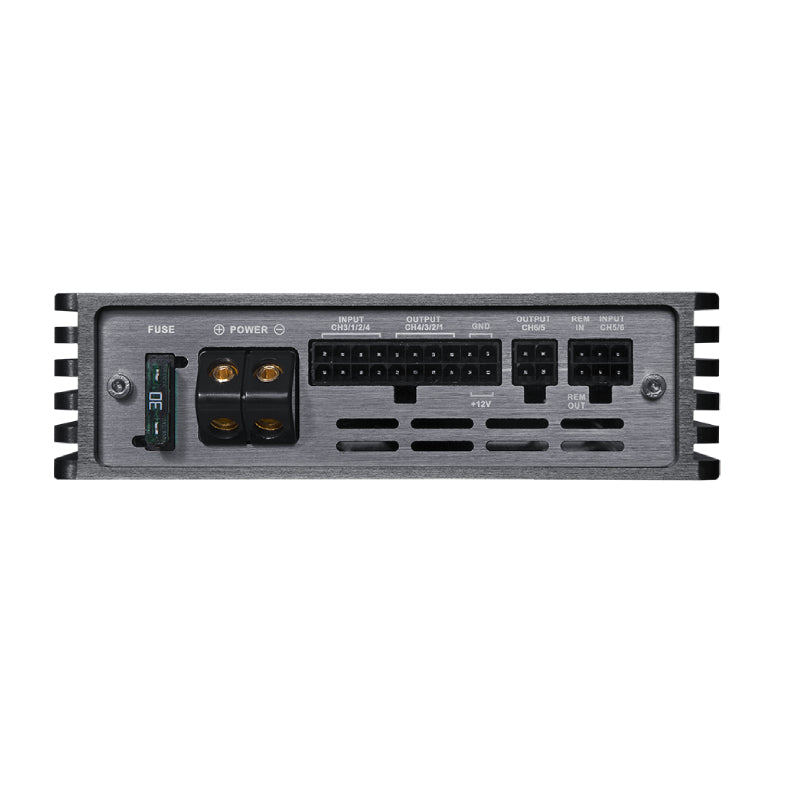

• 6 x High Level Input 4,8 – 20 V RMS
• 6 x RCA Low Level Input* (RCA) 2 – 6 V RMS
• 1 x AUX Input/Stereo (RCA) 2 – 6 V RMS
• 1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
• 6 x Loudspeaker Output amplified
• 2 x Pre-Amplifier Output (RCA) 4 V RMS (configurable via DSP)
• Dimensions: 150 x 44 x 220 mm

What's Inside?

1 - M6 6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor
1 - Owner’s Manual
1 - Power Harness
1 - Input/Output Harness
1 - USB Tuning Cable
1 - Extra 30-amp ATC Fuse
1 - Mounting Hardware

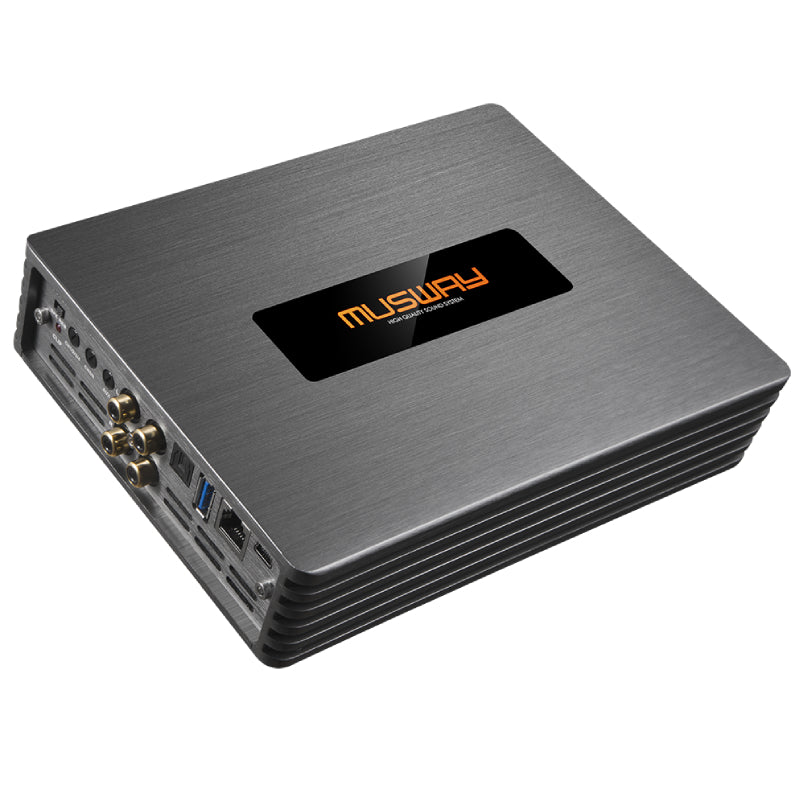

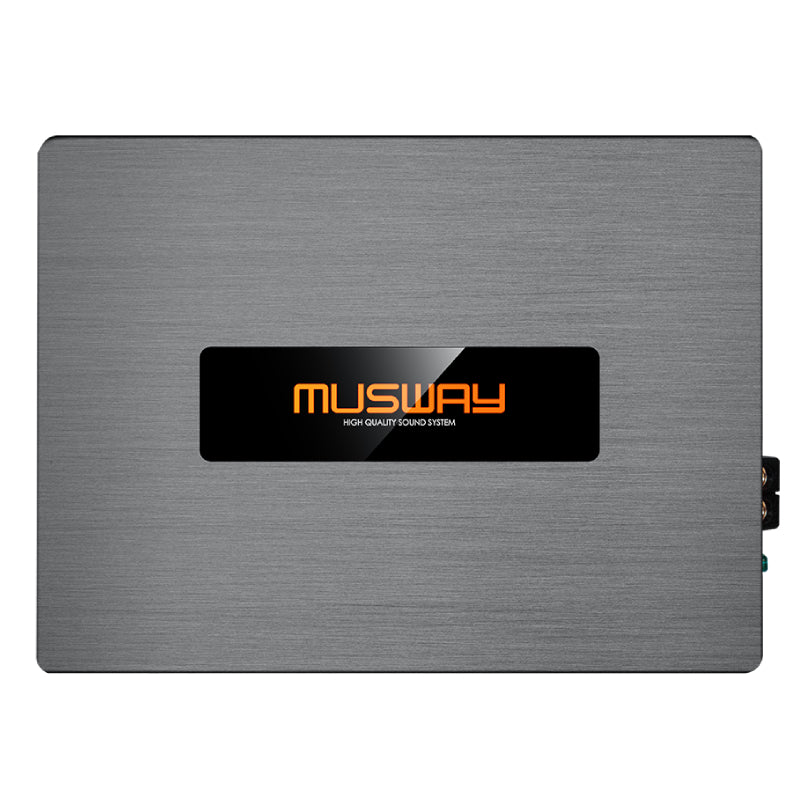

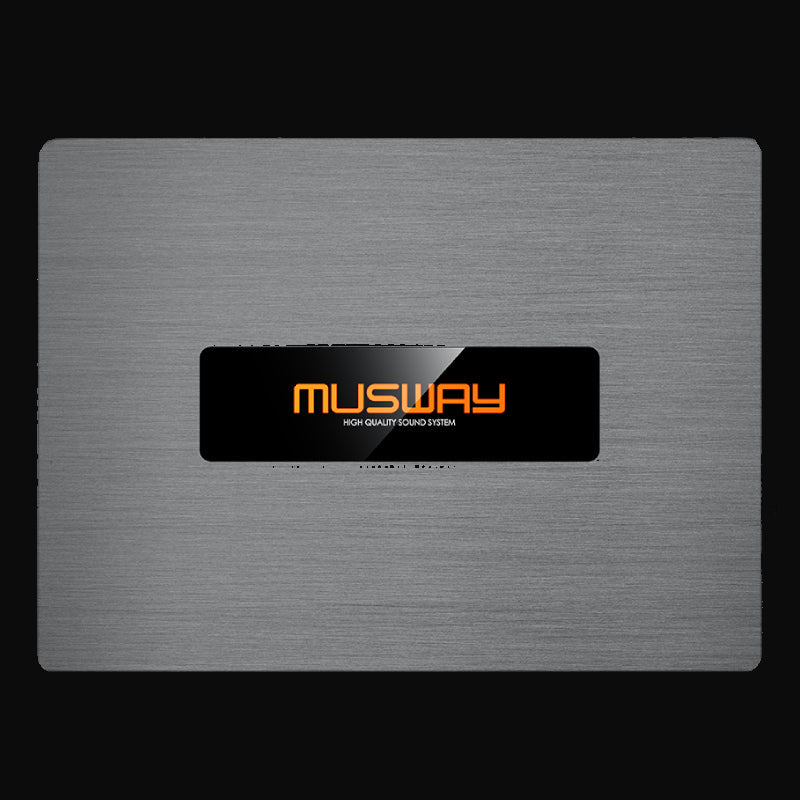

M6 Amplifier with built-in DSP

The M6 model can surely be seen as a new milestone in amplifier construction. It is barely imaginable that a fully grown six channel class D amplifier works in this small housing, featuring six channels of amplification, and 8 channels of Digital Sound Processing. The centerpiece is the high end dual 32 bit, 330 MIPS DSP processors from Texas Instruments which are controllable via PC software or the new MUSWAY app for your smartphone or tablet. The M6 features 6 x 70/105 watts at 4/2 Ohms and is bridgeable at 210 watts x 3 at 4 Ohms.

Product Highlights:

• Start-Stop ready• EPS (Intelligent High-Level Input-Error Protection System)• Brushed Aluminum Heat sink and End Panels• Auto Turn On via DC Offset or Signal Sensing• Utilizes 4-fold Laminated Circuit Boards that Allows for Small size and Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers• Clipping LED’s• Inputs: 6 x High-Level, 2 x AUX/RCA, 1 x Optical• Outputs: 6 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP) with up to 6.5v• With the Easy-to-Use MUSWAY PC Software, the M6 can be Configured Perfectly and in Real Time via PC or the New Musway App (via the optional BTA2) for your Smartphone or Tablet• With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)• Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips

Free International Shipping
Free Returns Within 30 days

Limited time offer

Don’t miss out on this limited-time advantage crafted for you

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Downloads

Owner's Manual

Test Review

DSP Software

Optional Accesories

BTS

Bluetooth USB - Dongle

External Bluetooth USB Dongle for Audio Streaming

For Use on the M4, M4+, M6, D8, and DSP68

Dimension: 61(L) x 36(W) x 10(H)
