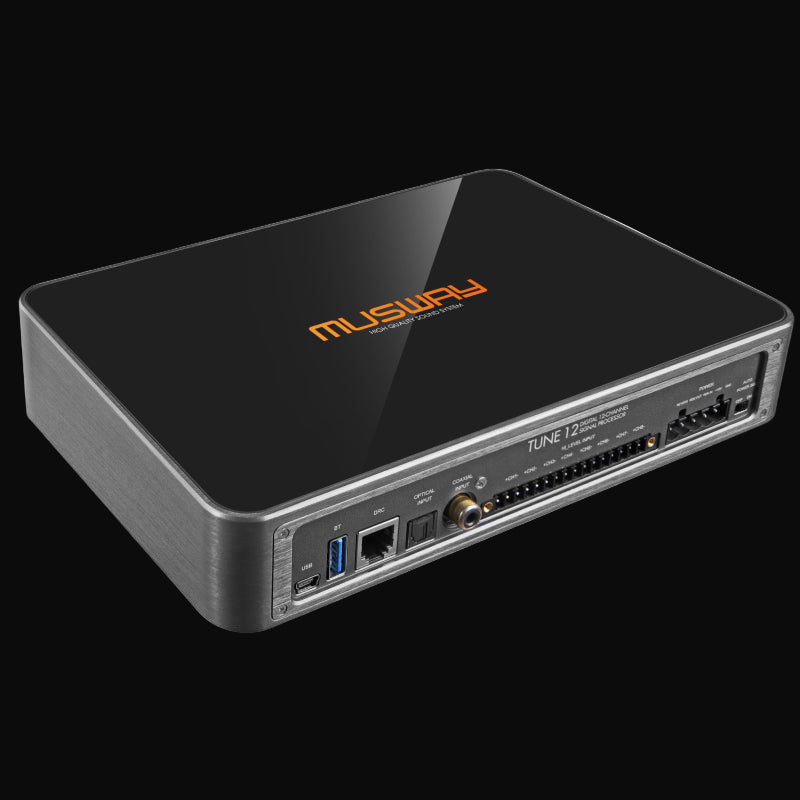

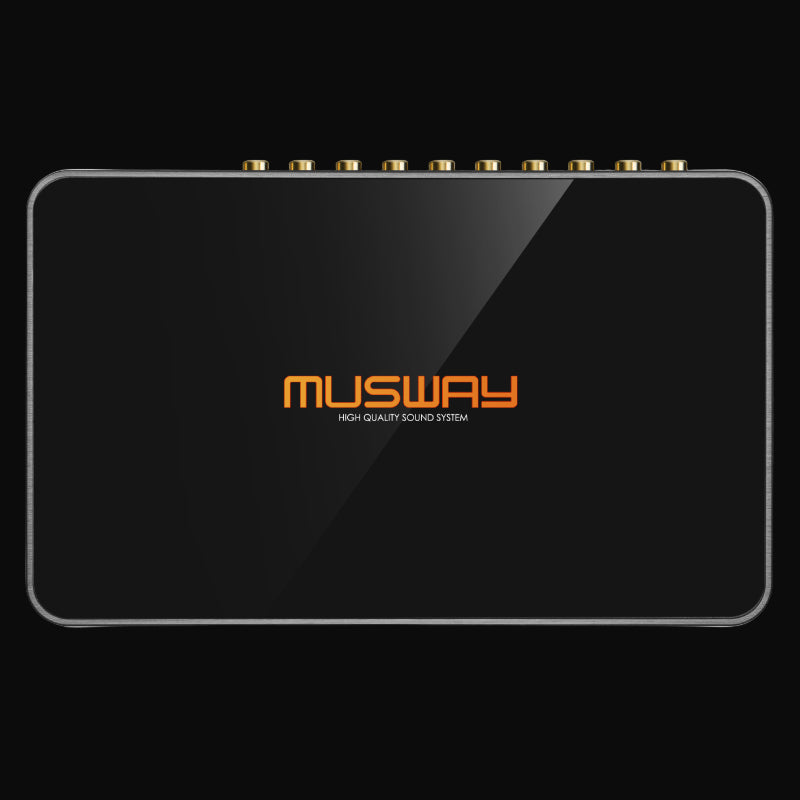

TUNE12 Processors

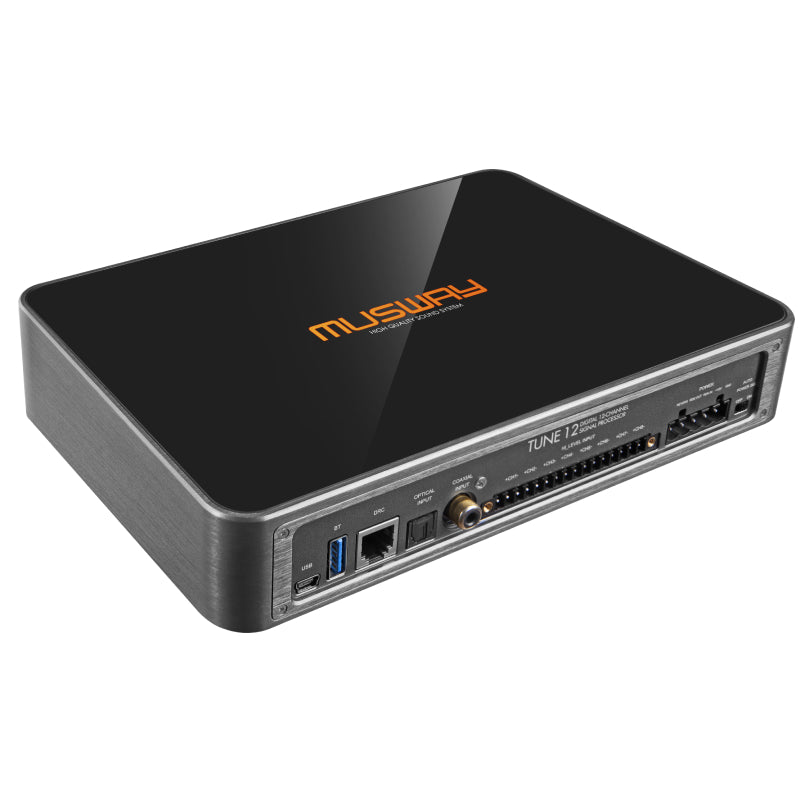

TUNE12 Product Overview
Three Burr-Brown converters were installed to optimize the channel separation and enables the multiple use of different sources. The centerpiece is the state-of-the-art Analog Devices ADAU1452 DSP chip, which was fine-tuned by the Musway engineers which will leave no audiophile’s wishes unfulfilled.

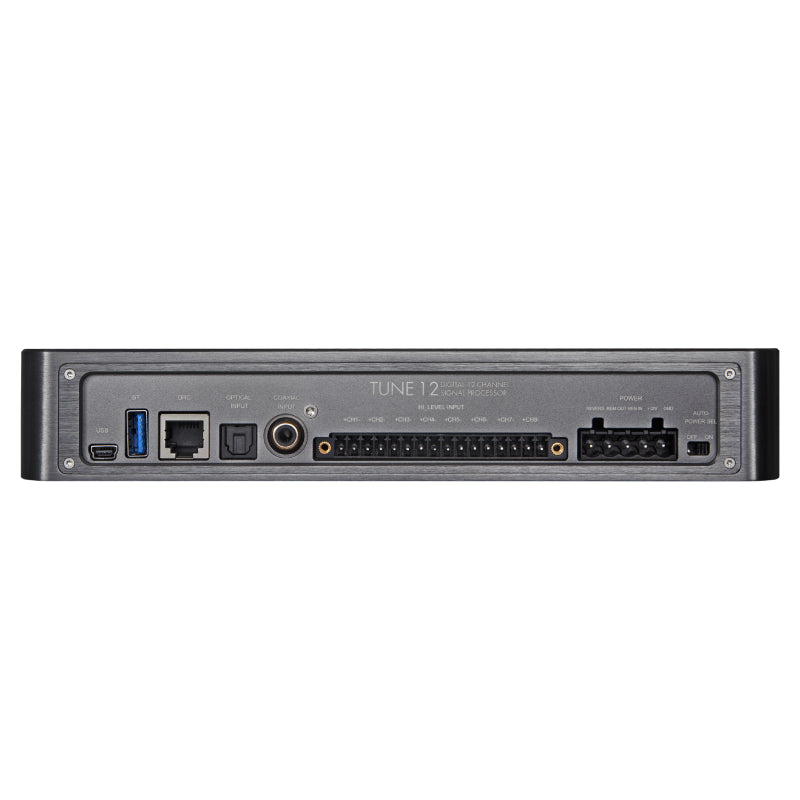

In addition to the TUNE12’s extremely high-end sound, it has a great feature set: It not only has 12 fully processable outputs, but also has optical, coaxial, and Aux inputs as well as: 8 High Level inputs, 6 Low Level (RCA) inputs and 12 preamplifier outputs (up to 6.5v rms) that are easily configurable via the DSP software. It also features Start-Stop technology and Intelligent Hi-Level EPS (Error Protection System) With the 3 optional USB Bluetooth dongles you can stream audio, HI-RES Audio and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.

Product Highlights:
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Three Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 295 MHz DSP technology, controllable via new V3 PC software or V3 App

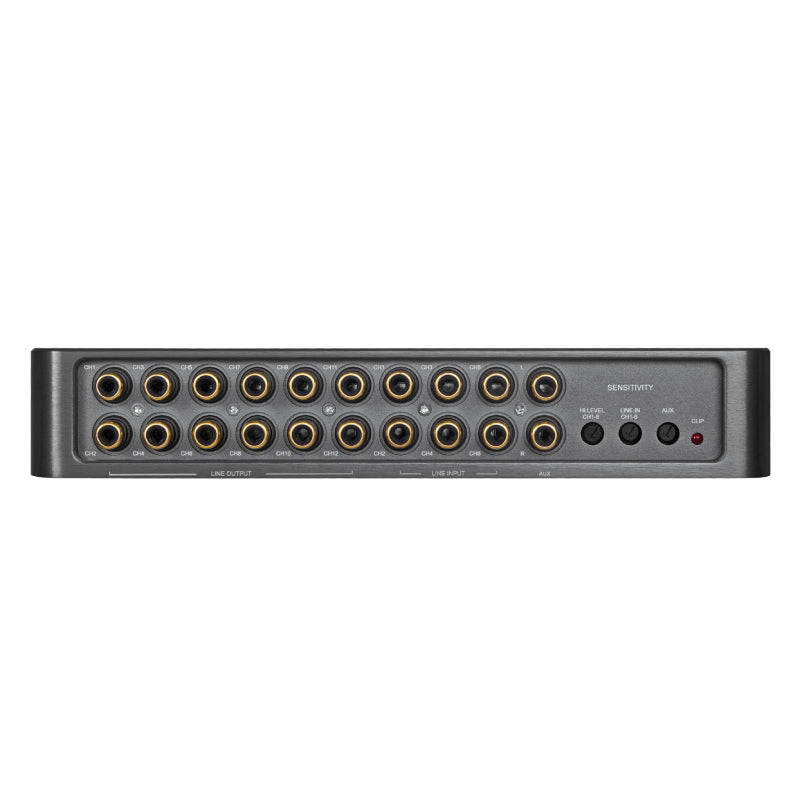

• Separately adjustable input sensitivity (CH1-8 high level, CH1-6 low level, AUX)

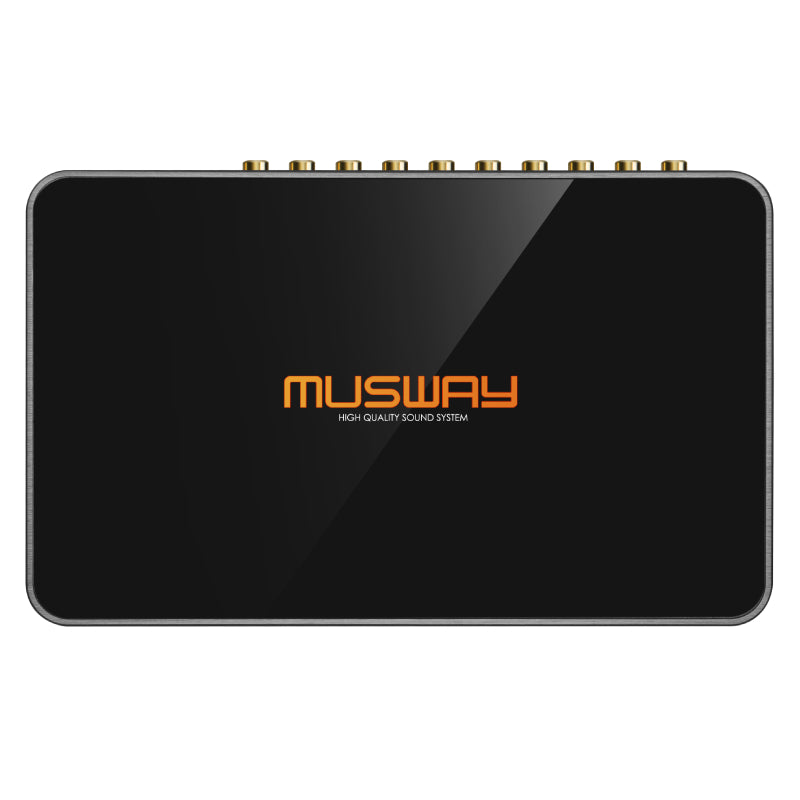

• High quality full aluminum housing with glass plate

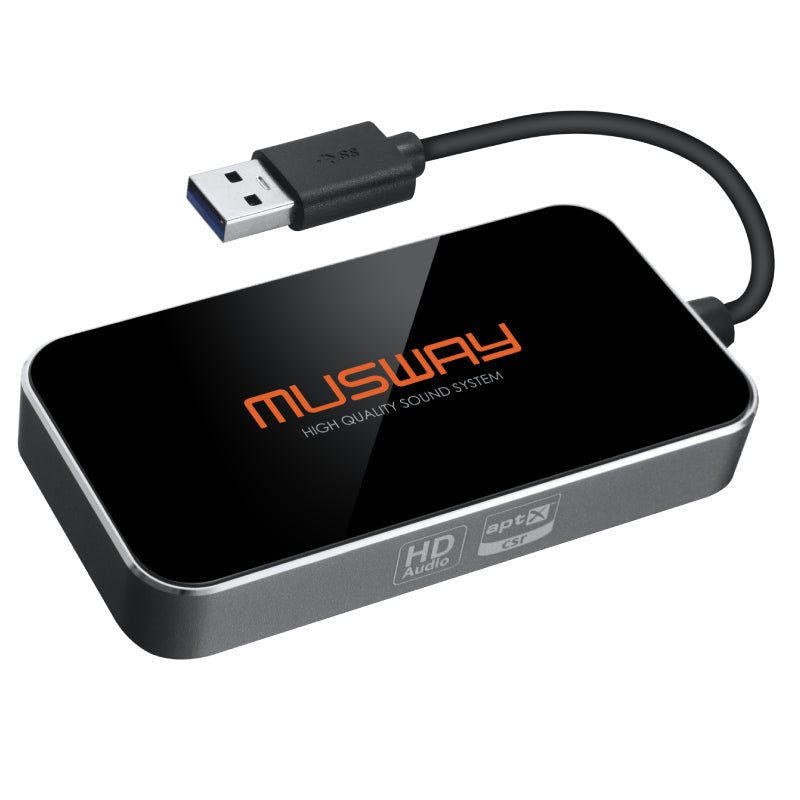

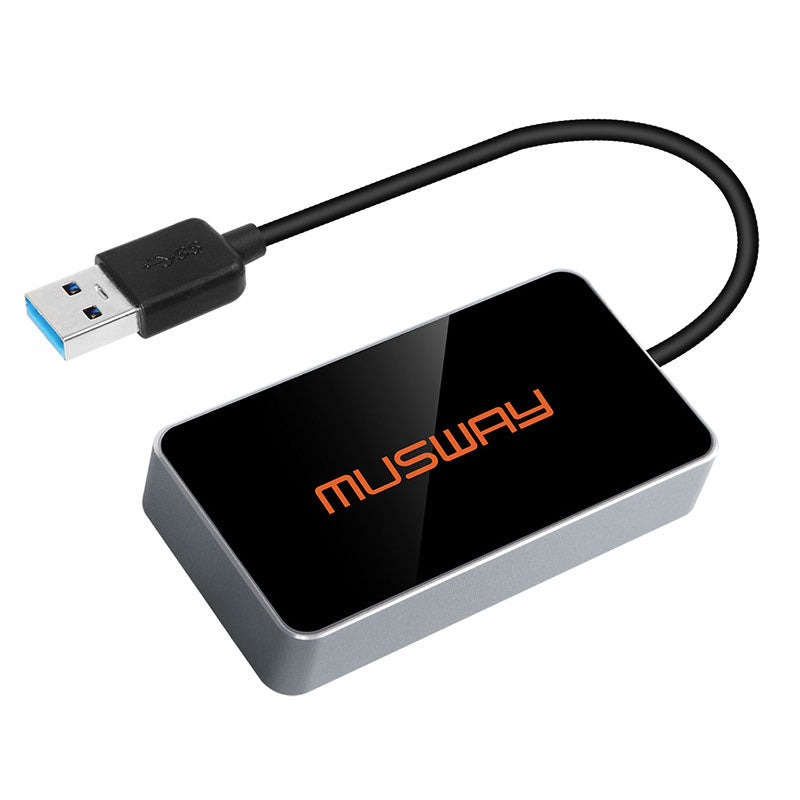

External Bluetooth® USB-Dongles (BTS & BTA2.0) for Audio Streaming & App Control (optional)

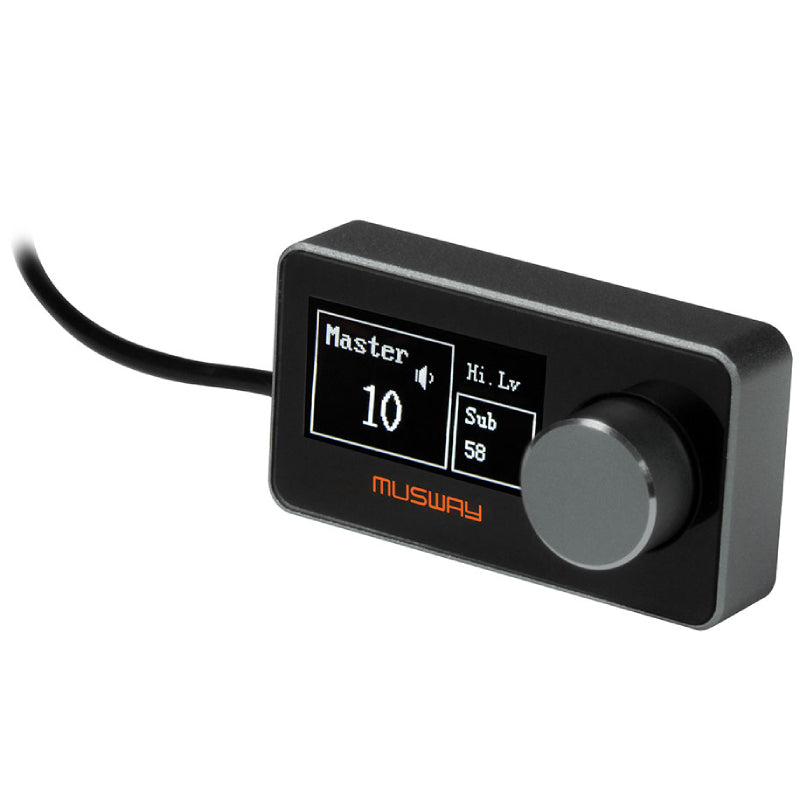

• Digital remote control (DRC1) with OLED display for controlling various DSP functions (optional)
Product Specifications:
• Distortion - THD+N (Digital Input): c 0.0005 %
• Distortion - THD+N (Analog Input): < 0.004%
• Bandwidth (-1 dB): 15 Hz - 22 kHz • S/N Ratio A weighted (Digital Input): 116dB
• Input Impedance: 13 0 (High Level); 22 kO (Low Level, AUX)
• SIGNAL CONVERTERS A/D: Burr-Brown 24 Bit / 96 kHz D/A: Burr-Brown 24 Bit / 192 kHz
• Crosstalk: > 90 dB • Output Voltage: 6.5V RMS
• Operating Voltage DC 8 -16V (down to 6V)
• Dimension: 8.66 x 5.31 x 1.48 inch
