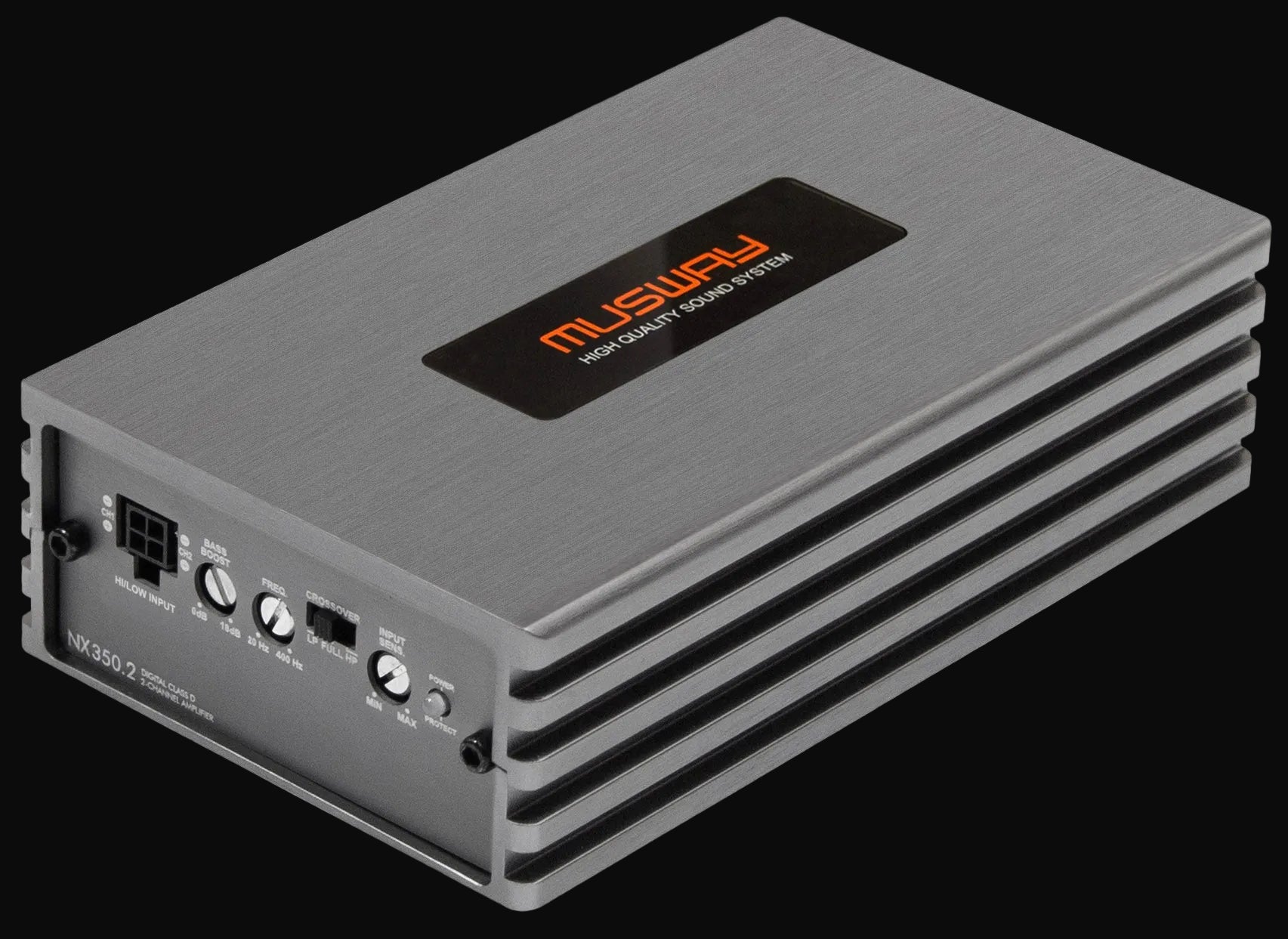

NX350.2

Model: NX350.2
Channels: 2
Circuit: Digital Class D
Power @ 14.4 V (≤1% THD+N):
• Watts @ 4 Ohms: 2 × 200
• Watts @ 2 Ohms: 2 × 350
• Watts @ 4 Ohms bridged: 1 × 700
Frequency Range: 6 – 43,000 Hz @ -3 dB
Signal-to-noise Ratio: > 99 dB
THD+N @ 5 W: < 0.02 %
Input Sensitivity: 410 mV – 8.5 V
Filter Section:
• Low Pass Filter or High Pass Filter: 20 – 400 Hz
• Bass Boost @ 40 Hz: 0 – 18 dB
Operating Voltage: 10.5 – 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS*: Yes
Auto Turn-on: Yes
Bass Level Remote Controller: No
Fuse (external): 60 A
Dimensions:
• Width: 89 mm
• Height: 41 mm
• Length: 148 mm
