Power with headroom
350 watts at 4 ohm, 550 at 2 ohm, 800 at 1 ohm. Digital Class D with under 0.02% distortion, so the impact stays clean at any volume.
800W at 1 Ohm

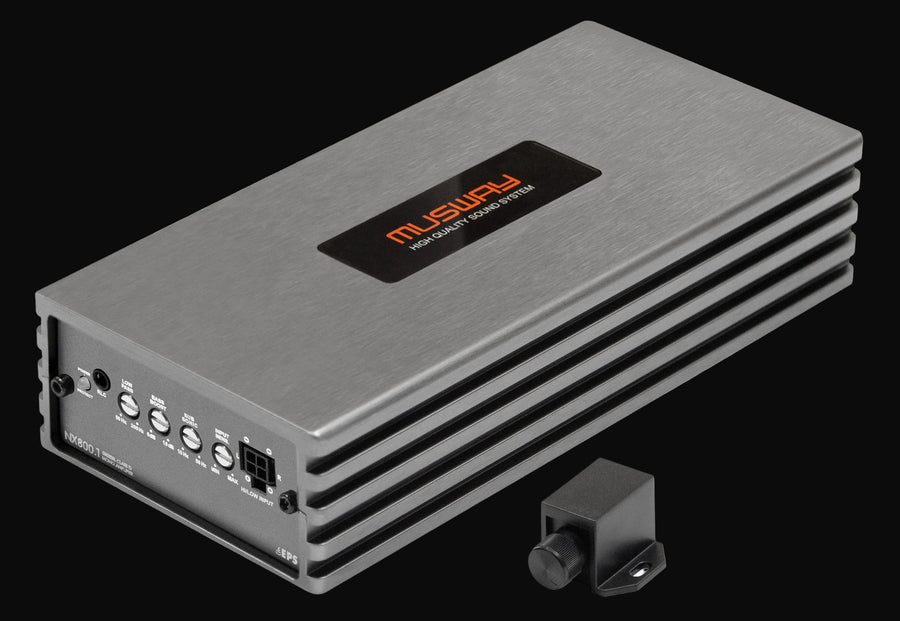

NX800.1
800 Watts. Total Control.
A high-power Class D monoblock that puts 800 watts into your subwoofer at 1 ohm, with subsonic and low pass filters, 18 dB of bass boost, EPS high-level inputs, and a bass remote in the box.
$595.95Free shipping.
Free nationwide shipping
3 year warranty included
30 day hassle-free returns
Secure encrypted checkout
0:00 / 0:00
2021 to 2026
Hi-Fi Product of the Year
100% German
Engineered and measured
3 Year
Warranty on every unit
Plug and Play
Factory-fit integration
Why drivers upgrade
Bass that hits hard and stops on time.
Big power is easy. Controlled power is not. The NX800.1 pairs 800 watts with the filtering that keeps a subwoofer tight, protected, and tuned to your car.
Filtering that protects the woofer
A 10 to 50 Hz subsonic filter stops wasted energy below the box tuning, a 50 to 250 Hz low pass keeps the sub on bass, and 0 to 18 dB of boost at 40 Hz sets the feel.

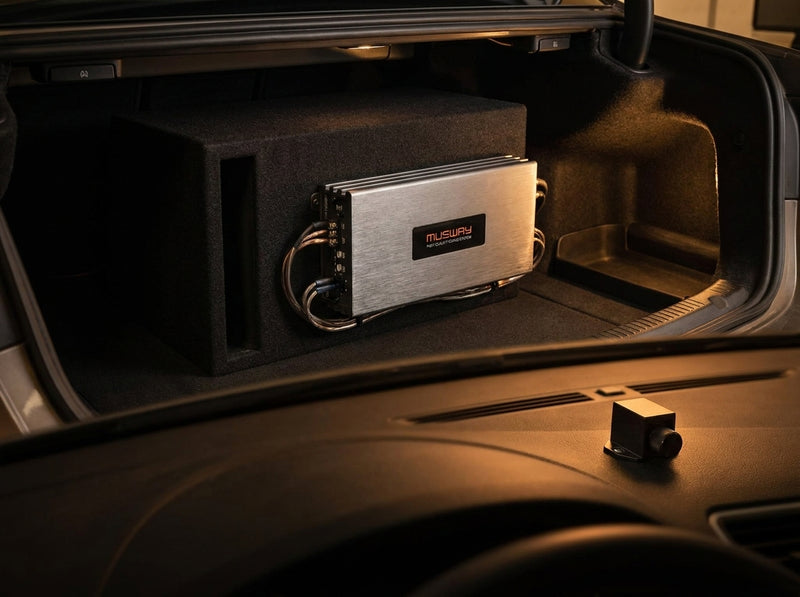

Remote in the box
The bass level controller is included. Mount it in the dash and adjust sub level for every track without opening the trunk.

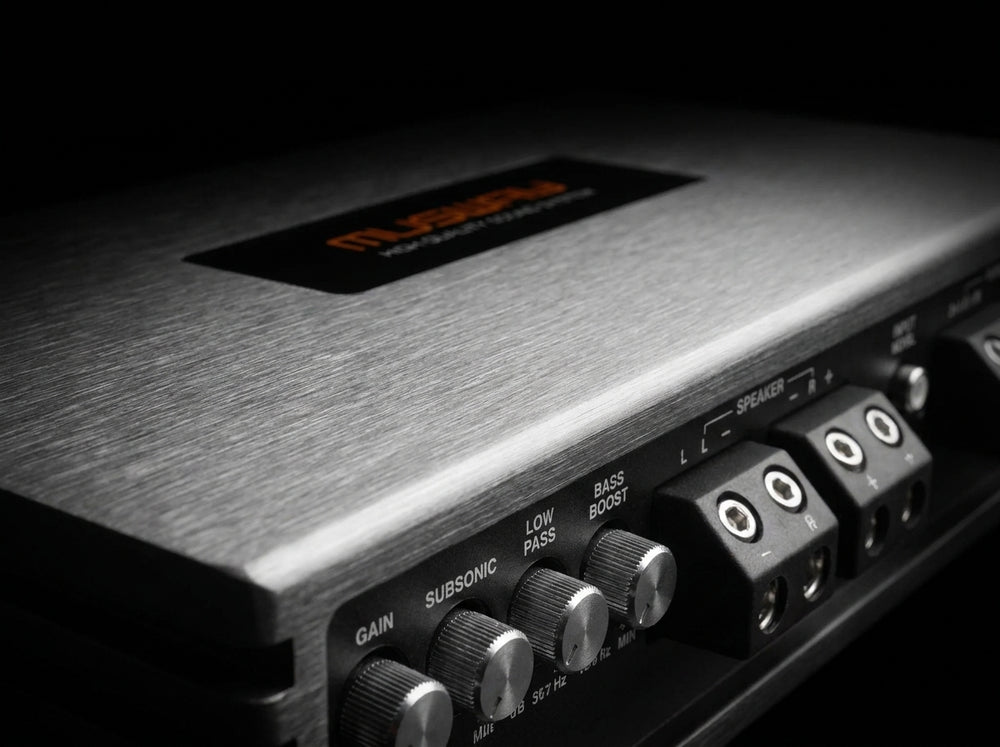

Built for bass
Everything a serious subwoofer install needs, remote included.
800W Class D Monoblock
350W at 4 ohm, 550W at 2 ohm, 800W at 1 ohm. High efficiency, cool running.

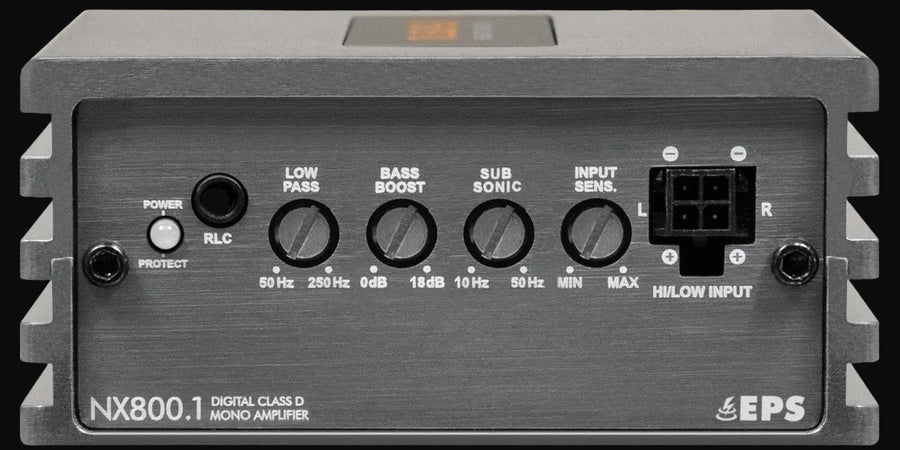

Subsonic and Low Pass Filters
10 to 50 Hz subsonic, 50 to 250 Hz low pass, so the woofer plays only what it should.
18 dB Bass Boost
Adjustable 0 to 18 dB at 40 Hz for the exact amount of punch you want.
Bass Remote Included
Dash mounted level control ships in the box.
EPS High-Level Inputs
Type D inputs with error protection connect to factory speaker wires with auto turn-on.
Start-Stop Ready
Stable from 10.5 to 16.5 volts through engine start-stop cycles.
Technical specifications
| Amplifier type | Digital Class D monoblock |
|---|---|
| Power at 4 ohm | 350W |
| Power at 2 ohm | 550W |
| Power at 1 ohm | 800W |
| Frequency response | 10 to 250 Hz (-1 dB) |
| Signal to noise | greater than 90 dB |
| THD+N | under 0.02% at 5W |
| Input sensitivity | 370 mV to 8.0 V |
| Subsonic filter | 10 to 50 Hz |
| Low pass filter | 50 to 250 Hz |
| Bass boost | 0 to 18 dB at 40 Hz |
| Operating voltage | 10.5 to 16.5 V |
| External fuse | 80 A |
| Dimensions | 3.5 x 1.6 x 7.3 inches |
| Warranty | 3 years |
| Box | 1x NX800.1 amplifier, 1x bass level remote controller, 1x high-level input harness, 1x owner's manual, 1x mounting hardware |
| Note | An 80 A external fuse and 4 gauge power wire are recommended. Wire the subwoofer for 1 ohm to reach the full 800 watts. |
What is in the box
- 1xMusway M6 512K amplifier
- 1xPower harness
- 1xInput and output harness
- 1xUSB tuning cable
- 1xExtra 30 amp ATC fuse
- 1xMounting hardware
- 1xOwner's manual
Add the PK-RCA6 RCA input harness at checkout if you are feeding the M6 from an aftermarket head unit with RCA outputs.
Installation
Three steps to serious low end
1
Connect

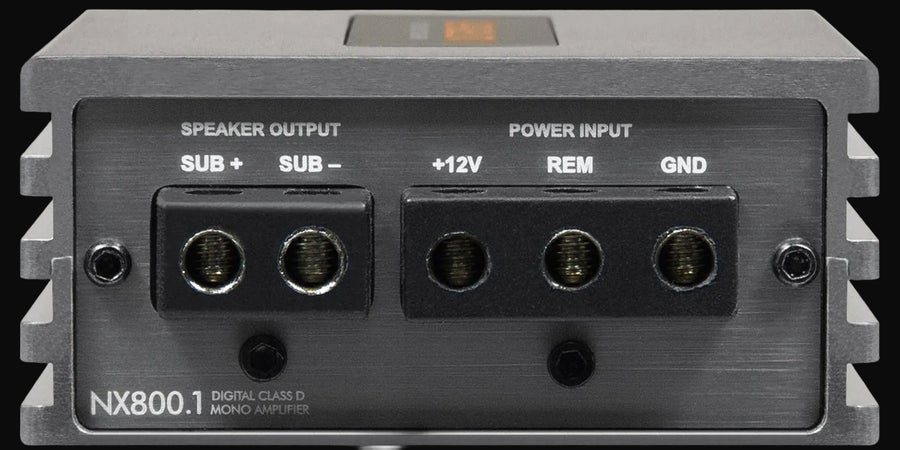

Run 4 gauge power and ground with an 80 A fuse, then plug the high-level harness into your factory rear speaker wires. Auto turn-on handles the rest.
2
Mount
At 3.5 by 7.3 inches it fits beside the sub box or under a seat. Class D runs cool with no fan.
3
Tune
- Set the low pass around 80 Hz, the subsonic to your enclosure, add boost to taste, then ride the level from the included remote.
Compare
Why not just buy any 800 watt amp?
| Feature | Factory system | Generic amp | Musway NX800.1 |
|---|---|---|---|
| True 800W at 1 ohm | − | Varies | |
| Subsonic and low pass filters | − | Varies | |
| 18 dB bass boost | − | − | |
| Plug and play with factory wiring | − | ||
| Start-Stop ready | − | Varies | |
| 3 year warranty | − | Varies |
Featured reviews
Drivers who wanted more and got control with it.
★★★★★
Today's offer
NX800.1 with free nationwide shipping. Bass remote included.
Order the NX800.1 on its own, or pair it with the MB-DRC flush mount bracket or a Musway MG10 subwoofer so the complete low end arrives in one box. Restock ships in 2 to 3 weeks.
- Free nationwide shipping on every order
- 3 year warranty registered automatically
- 30 day returns if it is not the upgrade you expected
- DSP software, manual, and wiring diagrams included with your order
Choose your kit
In stock. Ships within 24 hours.
1
Total
Secure encrypted checkout. Ships within 24 hours from our US warehouse.
QuestionsChoose your kit
Everything you want to know before you order.
Still unsure if the M6 512K fits your vehicle? Every order includes free fitment and tuning support from the Musway USA team.
Yes. The Type D high-level inputs with EPS accept factory speaker wire signals with auto turn-on, so the dash stays untouched.
Wire your subwoofer, or two subwoofers, to a 1 ohm load. At 2 ohm you get 550 watts, at 4 ohm 350.
Yes. The bass level controller ships in the box. Add the MB-DRC bracket for a flush dash mount.
An 80 A external fuse and 4 gauge power and ground wire are recommended.
The NX800.1 is restocking in 2 to 3 weeks. Orders ship in the order received.
Return it within 30 days in its original packaging for a full refund.
Your next drive should hit harder.
800 watts of controlled bass without replacing a single factory part. Free nationwide shipping, a 3 year warranty, and 30 days to decide.
