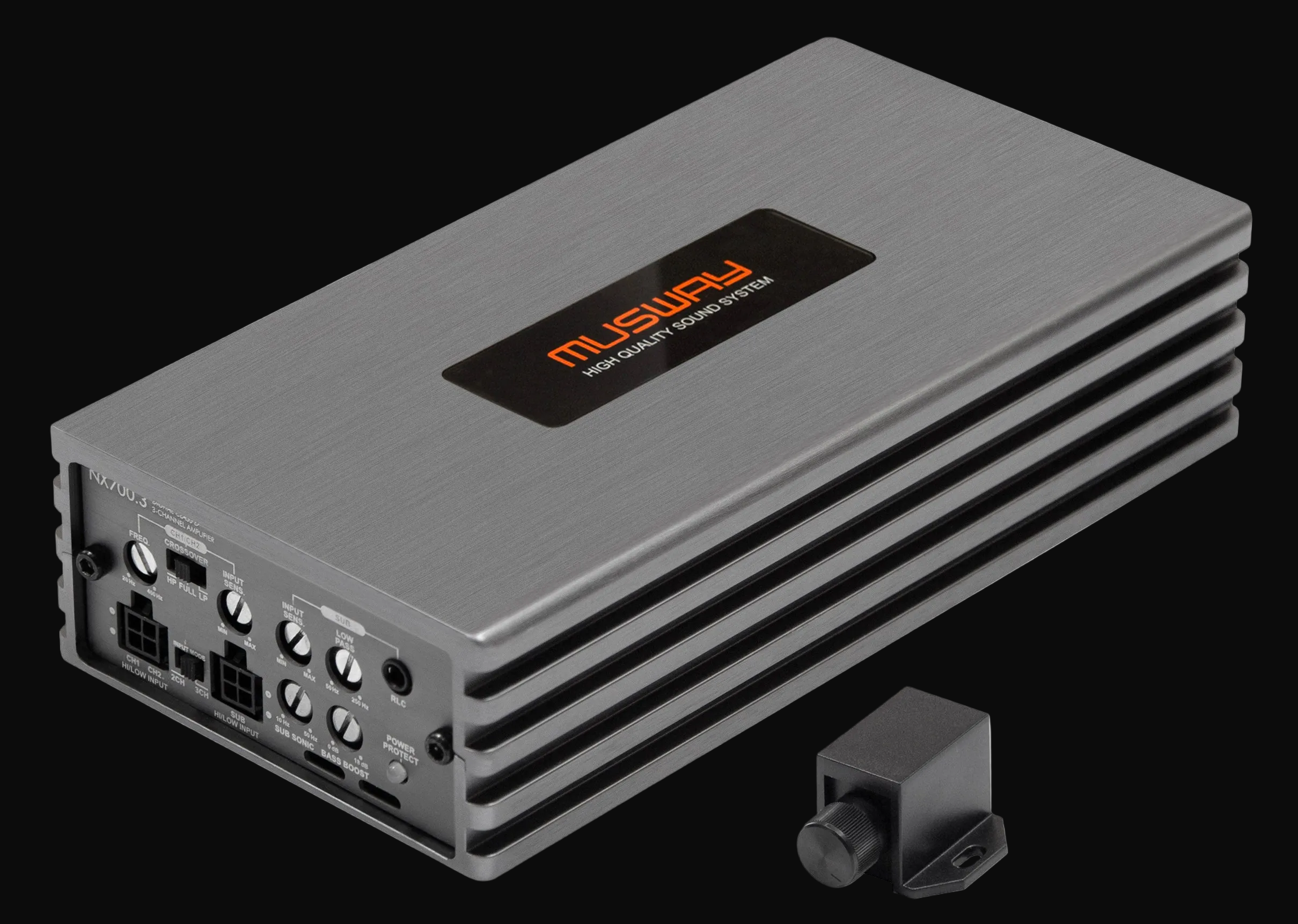

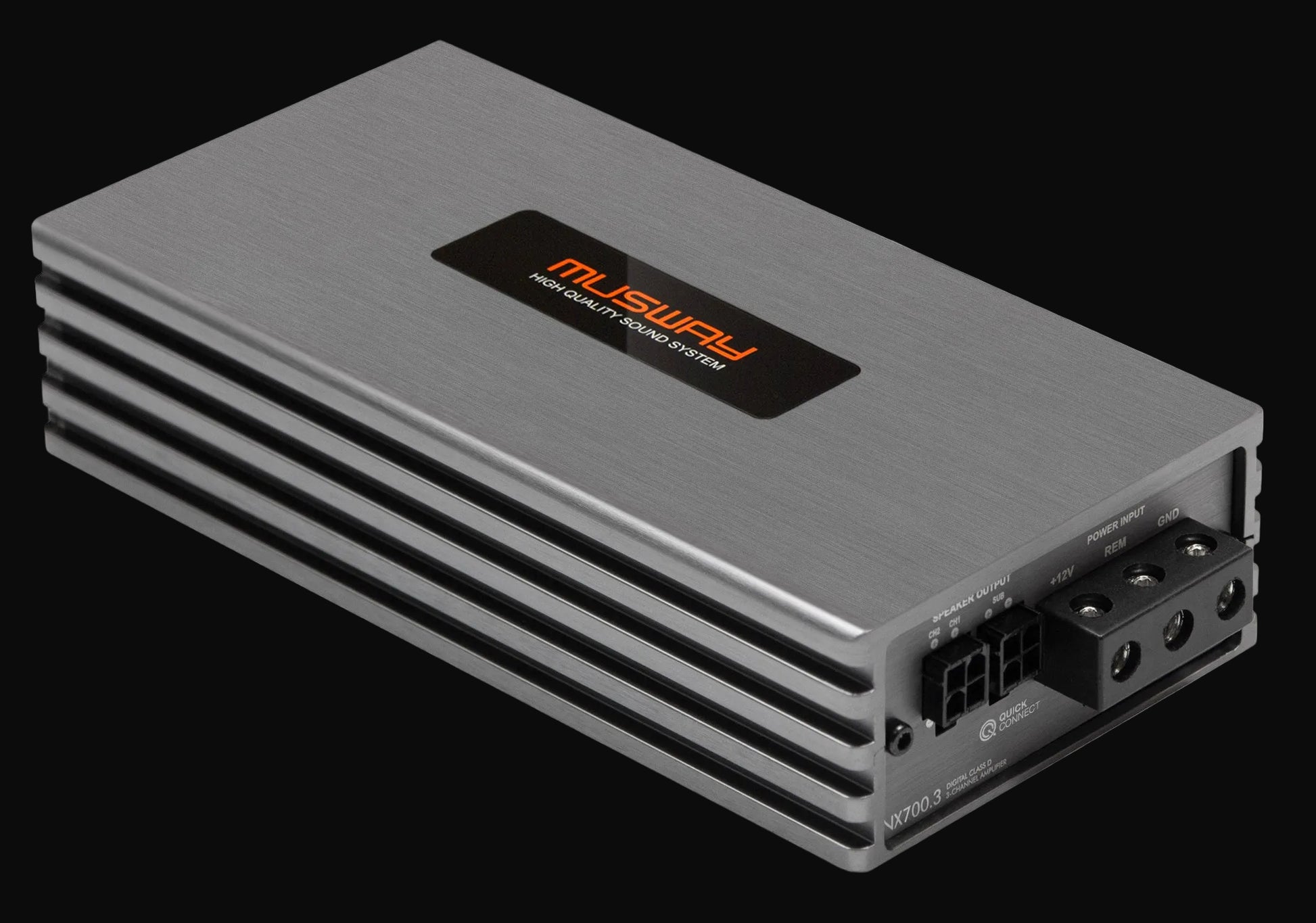

NX700.3

Model: NX700.3
Channels: 3
Circuit: Digital Class D
Power @ 14.4 V (≤1% THD+N):
CH1 / CH2:
• Watts @ 4 Ohms: 2 × 85
• Watts @ 2 Ohms: 2 × 150
• Watts @ 4 Ohms bridged: 1 × 300
SUB:
• Watts @ 4 Ohms: 1 × 250
• Watts @ 2 Ohms: 1 × 425
Frequency Range: 4 – 50,000 Hz @ -3 dB
Signal-to-noise Ratio: > 99 dB
THD+N @ 5 W: < 0.02 %
Input Sensitivity: 470 mV – 8.7 V

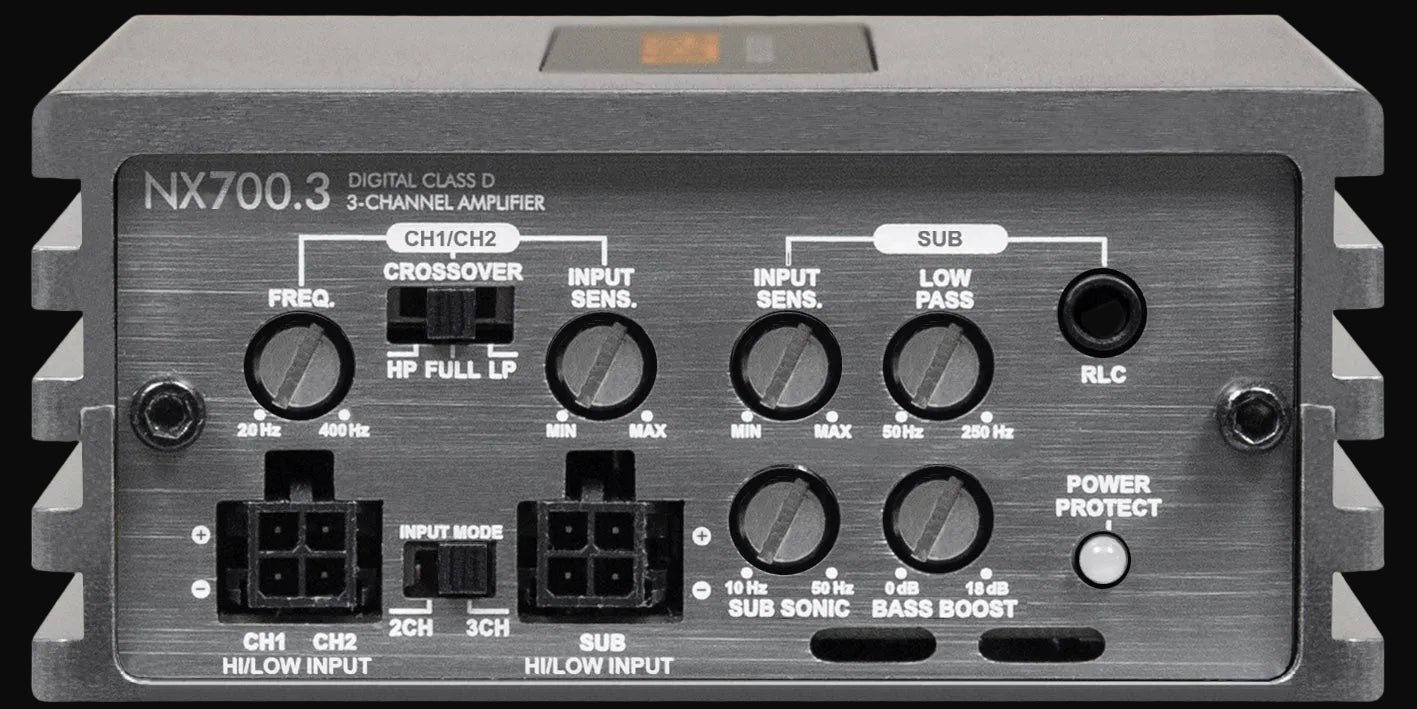

Filter Section (CH1 / CH2):
• Low Pass Filter or High Pass Filter: 20 – 400 Hz
Filter Section (SUB):
• Low Pass Filter: 50 – 250 Hz
• Subsonic Filter: 10 – 50 Hz
• Bass Boost @ 40 Hz: 0 – 18 dB

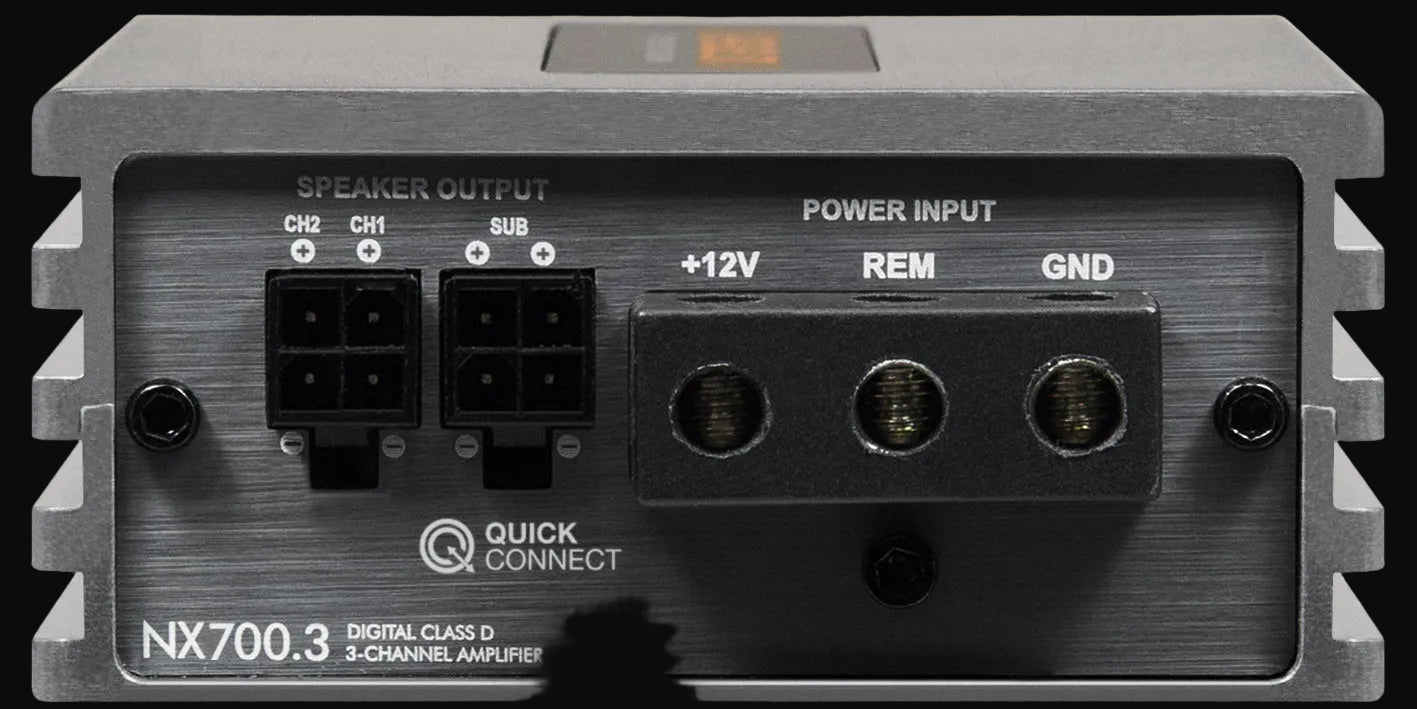

Operating Voltage: 10.5 – 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS*: Yes (Type D, via included cable connectors)
Auto Turn-on: Yes (via High Level Input)
Bass Level Remote Controller (SUB): Yes
Fuse (external): 60 A
Dimensions:
• Width: 89 mm
• Height: 41 mm
• Length: 168 mm
