NX900.5

Model: NX900.5
Channels: 5
Circuit: Digital Class D
Power RMS @ 14.4 V (≤1% THD+N):
• CH1–CH4 Watts @ 4 Ohms: 4 × 70 W
• CH1–CH4 Watts @ 2 Ohms: 4 × 120 W
• CH1–CH4 Watts @ 4 Ohms bridged: 2 × 240 W
• SUB Watts @ 4 Ohms: 1 × 250 W
• SUB Watts @ 2 Ohms: 1 × 425 W
Frequency Range: 10 – 41,000 Hz @ -1 dB
Signal-to-noise Ratio: > 99 dB
THD+N @ 5 W: < 0.02 %
Input Sensitivity: 400 mV – 8.9 V

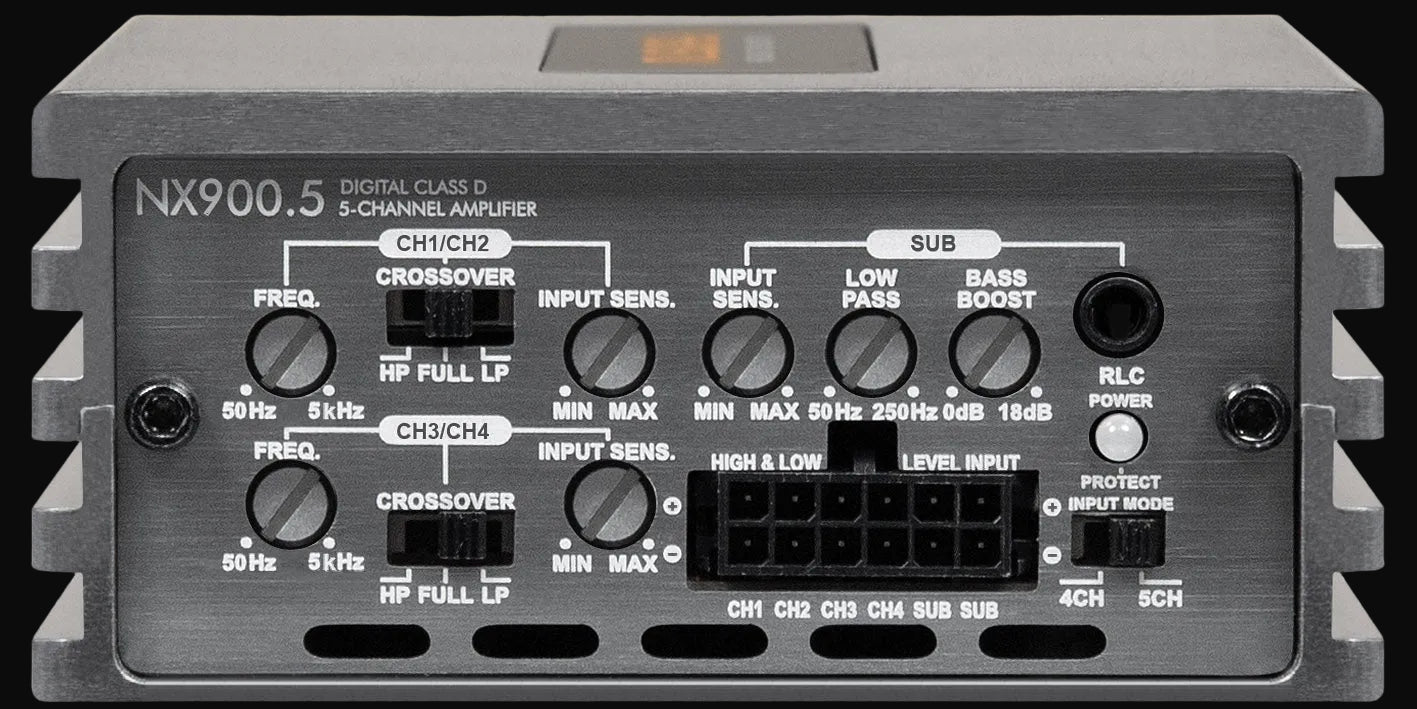

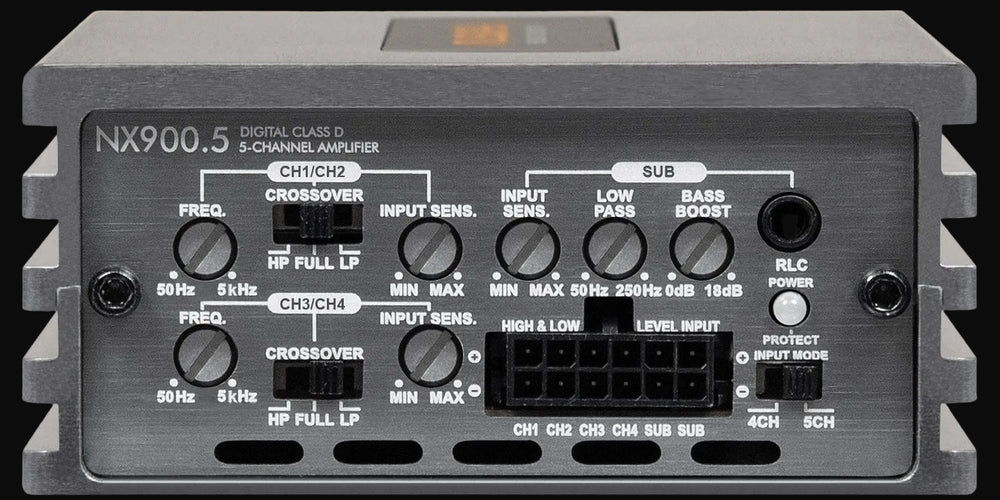

Filter Section CH1/CH2:
• Low Pass or High Pass Filter: 50 – 5000 Hz
Filter Section CH3/CH4:
• Low Pass or High Pass Filter: 50 – 5000 Hz
Filter Section SUB:
• Low Pass Filter: 50 – 250 Hz
• Subsonic Filter: 10 – 50 Hz
• Bass Boost @ 40 Hz: 0 – 18 dB
Operating Voltage: 10.5 – 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS*: Yes (Type D, via included cable connector)
Auto Turn-on: Yes (via High Level Input)
Bass Level Remote Controller (SUB): Yes
Fuse (external): 80 A
Dimensions:
• Width: 89 mm
• Height: 41 mm
• Length: 183 mm
