Type: Amplifiers

SKU: M6

Musway M6 512K

Name: Musway M6 512K
Brand: Musway
SKU: M6
Price: 1049.95 USD
Availability: InStock

6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor 80 watts x 6 | 4 ohm

$1,049.95 USD

Shipping calculated at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Nationwide Shipping
Free Returns Within 30 days

Share:

Downloads

Owner's Manual ↘

Test Review ↘

DSP Software ↘

Overview:

⚡ Musway M6 Product Overview

🔹 Smart and Reliable Performance: The Musway M6 is engineered for precision and efficiency, featuring Start-Stop readiness and EPS (Intelligent High-Level Input Error Protection System) for seamless integration with modern vehicles.

🔹 Premium Build Quality: Designed with a brushed aluminum heat sink and end panels, the M6 combines sleek aesthetics with superior thermal management. Its 4-fold laminated circuit boards minimize EMI (RF interference), ensuring exceptional performance and compliance with strict European EMI standards.

🔹 Advanced Functionality: Enjoy Auto Turn-On via DC Offset or Signal Sensing for effortless setup, and monitor your system with the Output Clipping LED to maintain perfect audio balance and clarity.

🔹 Intuitive DSP Control: Configure your M6 in real time via the MUSWAY PC software or the Musway app for smartphones and tablets — giving you precise control over your sound.

🔹 Enhanced Connectivity Options: With three optional USB Bluetooth dongles, you can stream audio, enjoy aptX HD Hi-Res Audio, and access DSP tuning control through your mobile device. The optional DRC1 digital remote control with OLED display puts advanced tuning and volume adjustments conveniently within reach.

Specifications:

6-Channel Full Range Class-D Amplifier with 8-Channel DSP – 512k
Power Output:
• 80 watts x 6 @ 4 ohms
• 130 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91" (W) × 1.73" (H) × 8.66" (L) (150 × 44 × 220 mm)
Inputs:
High-Level 6 (4.8–20 V RMS
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1 (96 kHz / 24-bit)
• Frequency Response: 10 Hz – 20 kHz (–3 dB)
• S/N Ratio: 94 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: 55 (1 kHz)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

Description:

What's Inside?

1 - M6 6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor
1 - Owner’s Manual
1 - Power Harness
1 - Input/Output Harness
1 - USB Tuning Cable
1 - Extra 30-amp ATC Fuse
1 - Mounting Hardware

M6 Amplifier with built-in DSP

The M6 model can surely be seen as a new milestone in amplifier construction. It is barely imaginable that a fully grown six channel class D amplifier works in this small housing, featuring six channels of amplification, and 8 channels of Digital Sound Processing. The centerpiece is the high end dual 32 bit, 330 MIPS DSP processors from Texas Instruments which are controllable via PC software or the new MUSWAY app for your smartphone or tablet. The M6 features 6 x 70/105 watts at 4/2 Ohms and is bridgeable at 210 watts x 3 at 4 Ohms.

Product Highlights:

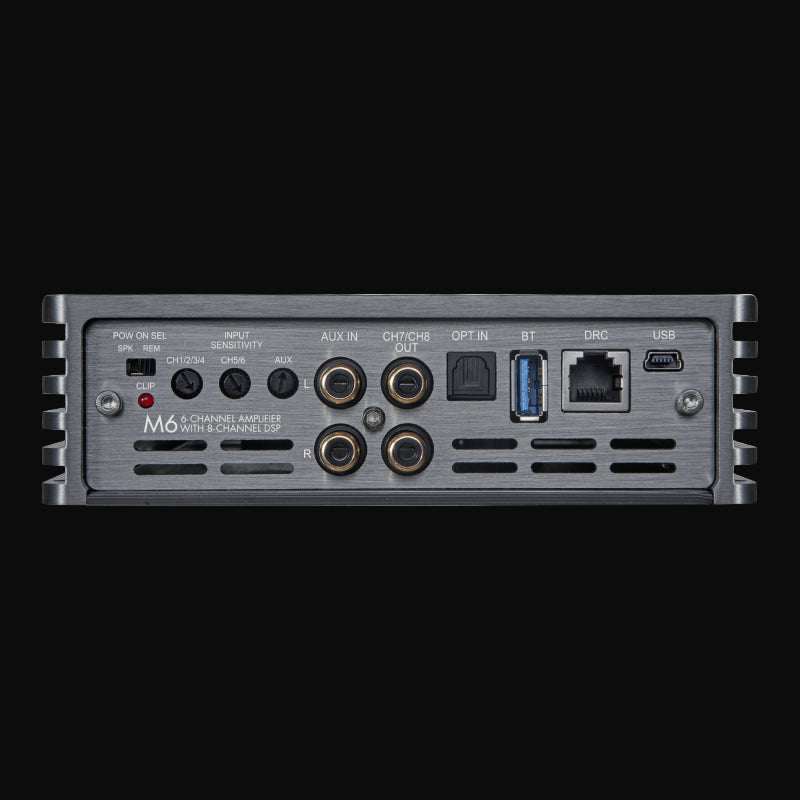

• Start-Stop ready• EPS (Intelligent High-Level Input-Error Protection System)• Brushed Aluminum Heat sink and End Panels• Auto Turn On via DC Offset or Signal Sensing• Utilizes 4-fold Laminated Circuit Boards that Allows for Small size and Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers• Clipping LED’s• Inputs: 6 x High-Level, 2 x AUX/RCA, 1 x Optical• Outputs: 6 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP) with up to 6.5v• With the Easy-to-Use MUSWAY PC Software, the M6 can be Configured Perfectly and in Real Time via PC or the New Musway App (via the optional BTA2) for your Smartphone or Tablet• With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)• Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips

Load video: Musway High Quality Sound System

BTS

Bluetooth USB - Dongle

External Bluetooth USB Dongle for Audio Streaming

For Use on the M4, M4+, M6, D8, and DSP68

Dimension: 61(L) x 36(W) x 10(H)
