Type: Amplifiers

SKU: M6PRO

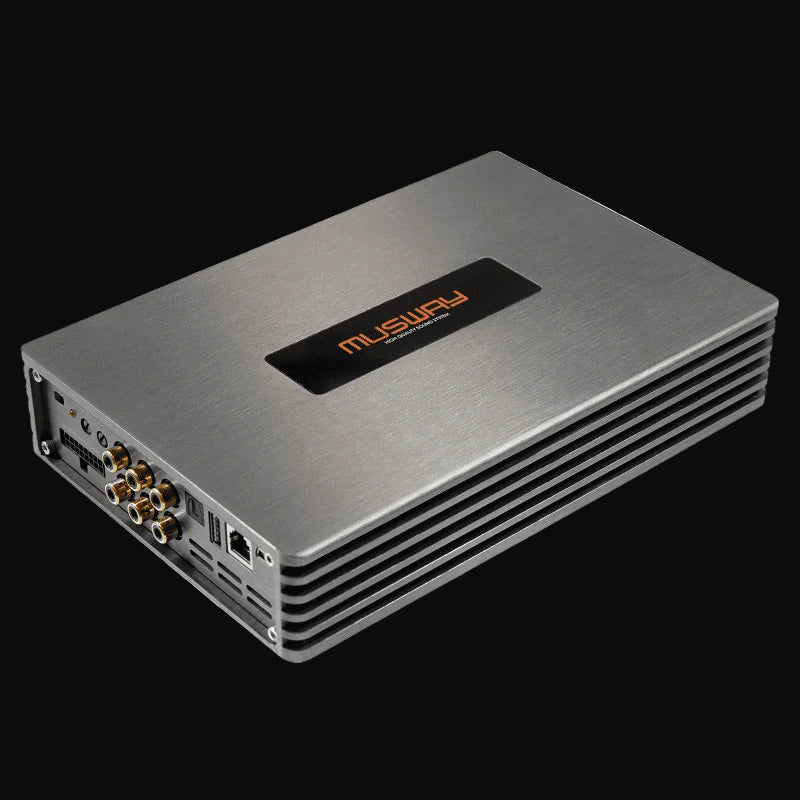

Musway M6PRO 512K

Name: Musway M6PRO 512K
Brand: Musway
SKU: M6PRO
Price: 1109.95 USD
Availability: InStock

Musway M6 Pro Series 6-Channel Class-D Digital Amplifier with 10-Channel DSP 6 x 200W RMS | 2 Ohm

$1,109.95 USD

Shipping calculated at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Free Nationwide Shipping
Free Returns Within 30 days

Share:

Downloads

Owner's Manual ↘

Test Review ↘

DSP Software ↘

Overview:

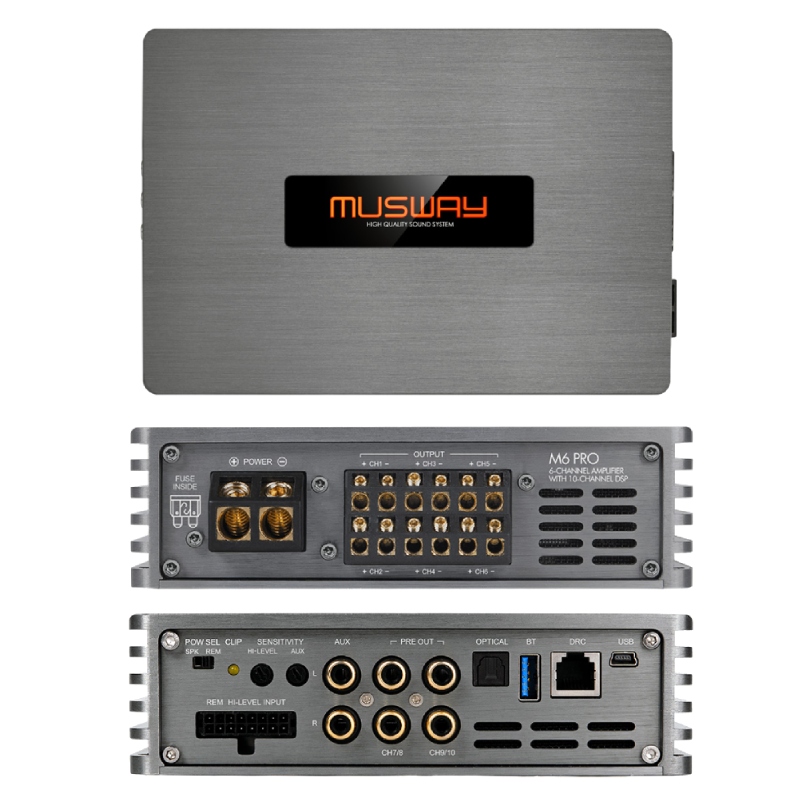

⚡Musway M6Pro Product Overview

🔹 High-Performance Design: The Musway M6Pro combines precision engineering with powerful DSP control, making it a standout choice for premium car audio systems. Featuring Start-Stop readiness and EPS (Intelligent High-Level Input Error Protection System), it ensures reliable performance across modern vehicles.

🔹 Superior Build Quality: Its brushed aluminum heat sink and end panels provide both durability and elegant aesthetics. The 4-fold laminated circuit boards effectively suppress EMI (RF interference), allowing this full-range Class D amplifier to meet and exceed strict European EMI standards.

🔹 Smart Functionality: Enjoy Auto Turn-On via DC Offset or Signal Sensing and benefit from an Output Clipping LED that ensures precise monitoring and optimal sound levels.

🔹 Advanced Connectivity: Easily configure the M6Pro in real time through the MUSWAY PC software or the intuitive Musway app on your smartphone or tablet.

🔹 Optional Add-Ons: Enhance your system with three optional USB Bluetooth dongles — enabling audio streaming, Hi-Res aptX HD audio playback, and DSP tuning via the app. The optional DRC1 digital remote control with OLED display offers convenient system control right at your fingertips.

Specifications:

Pro Series 6-Channel Full Range Class-D Amplifier
with 10-Channel Digital Sound Processor - 512k
Power Output:
• 120 Watts x 6 @ 4 ohms
• 200 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91" (W) × 1.73" (H) × 8.66" (L) (150 × 44 × 220 mm)
Inputs: High-Level 6 (4.8–20 V RMS)
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1
• Frequency Response: 10 Hz – 22 kHz (–3 dB)
• S/N Ratio: 100 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: > 130 (1 kHz, 2 V RMS, 4Ω)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)

Description:

What's Inside?

6-Channel Class D Amplifier
Owner’s Manual

Enhanced Channel Capacity

The M6 Pro DSP amplifier, considered the big brother of the M5 Evo model, features 6 amplified channels and 10 processor-controlled channels. In comparison, the M5 Evo offers 5 amplified channels and 8 processor-controlled channels.

Compact Design, Class D Amplifier

The newly developed Class D technology is highly resistant to EMC interference, ensuring interference-free music enjoyment in modern vehicles equipped with numerous electronic components. boasting very compact housing dimensions, achieved through the innovative 4-fold laminated circuit board design.

BTS

Bluetooth USB - Dongle

External Bluetooth USB Dongle for Audio Streaming

For Use on the M4, M4+, M6, D8, and DSP68

Dimension: 61(L) x 36(W) x 10(H)
