MWF1022SQ

Despite its extremely flat design, the MWF1022SQ offers an impressive Xmax of ±20 mm, allowing the driver to move substantial amounts of air for powerful, dynamic, and controlled low-frequency reproduction. With 500 watts RMS power handling and up to 1000 watts peak, the MWF1022SQ is designed to deliver strong bass performance without requiring the installation depth of a conventional subwoofer.

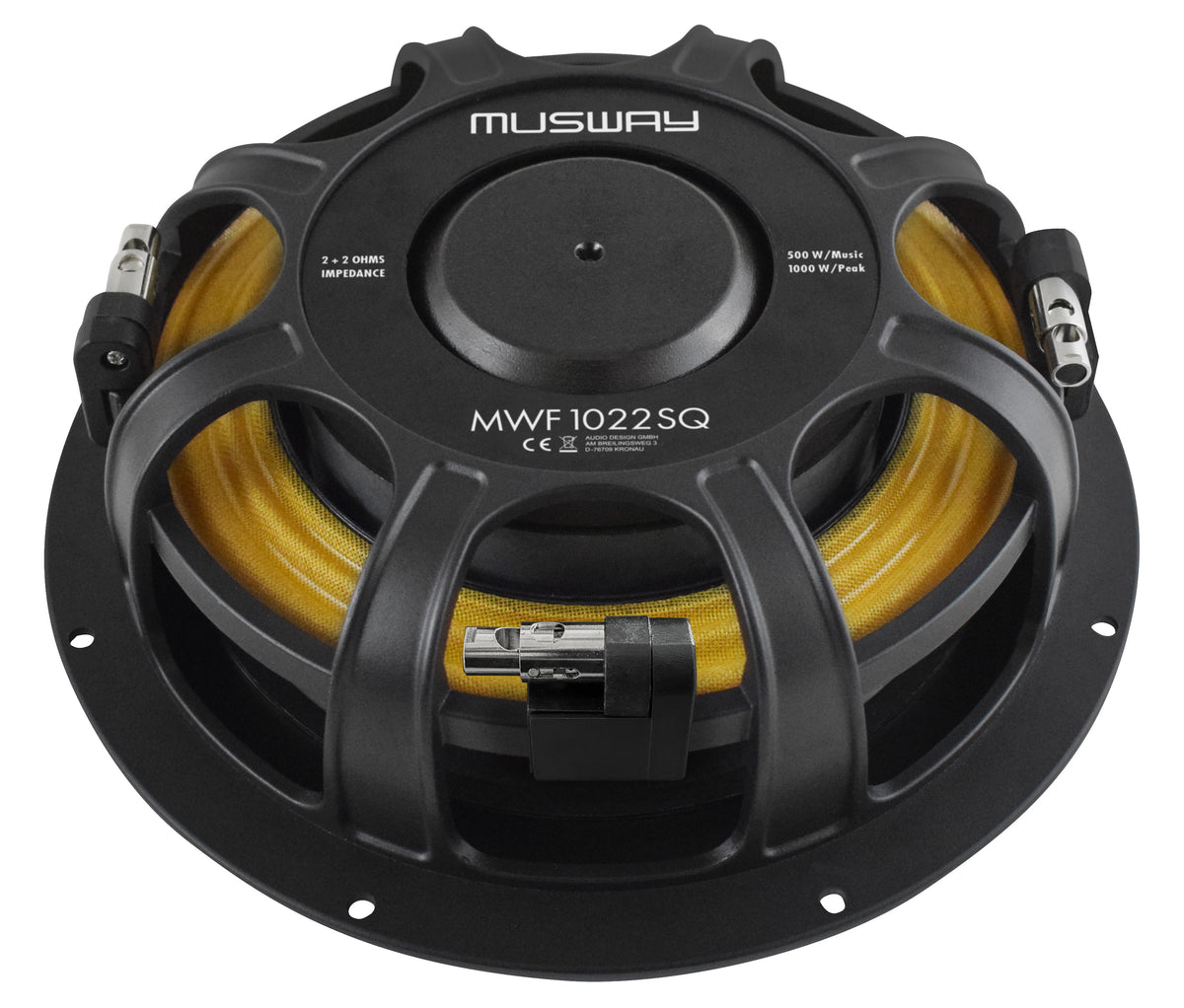

The MWF1022SQ is optimized for compact sealed enclosures ranging from 14 to 25 liters, where it delivers excellent impulse response, precise control, and clean bass reproduction. Its 2 + 2 ohm dual voice coil configuration also provides flexible wiring options, making it easier to match the subwoofer with a wide range of amplifier systems.

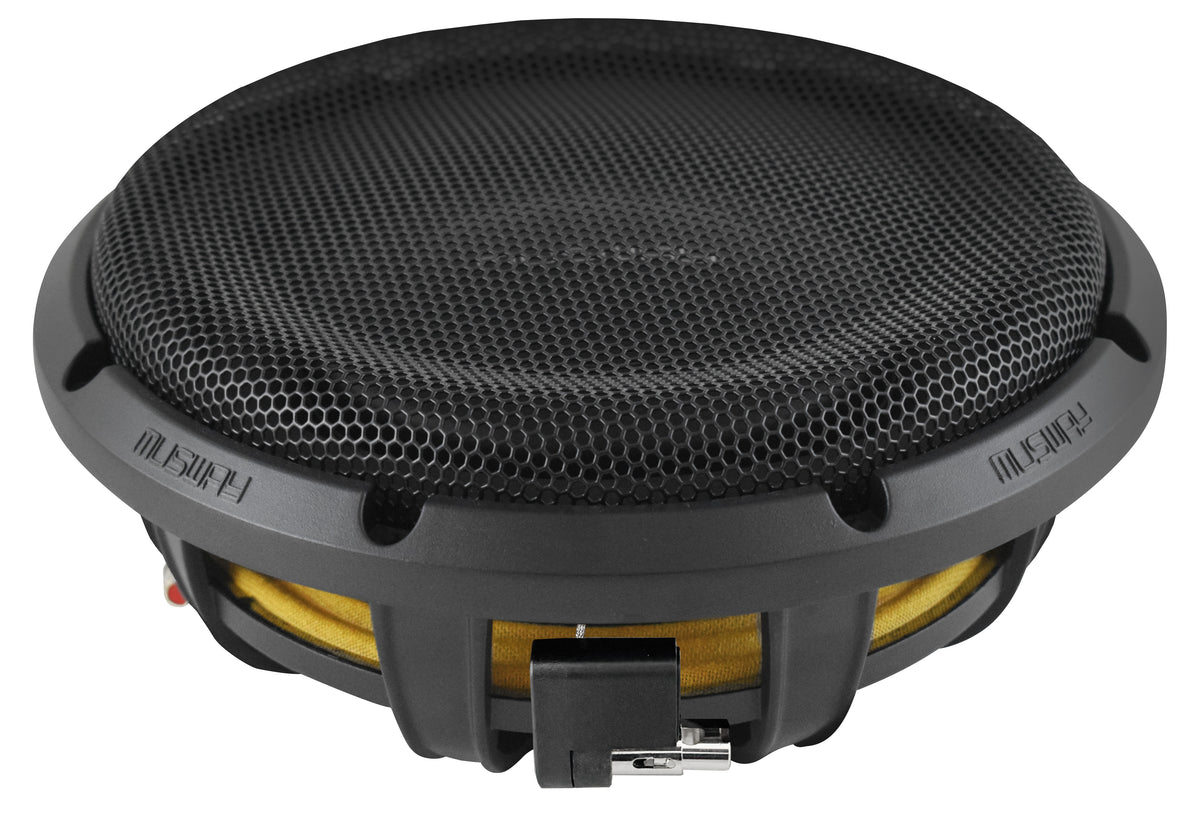

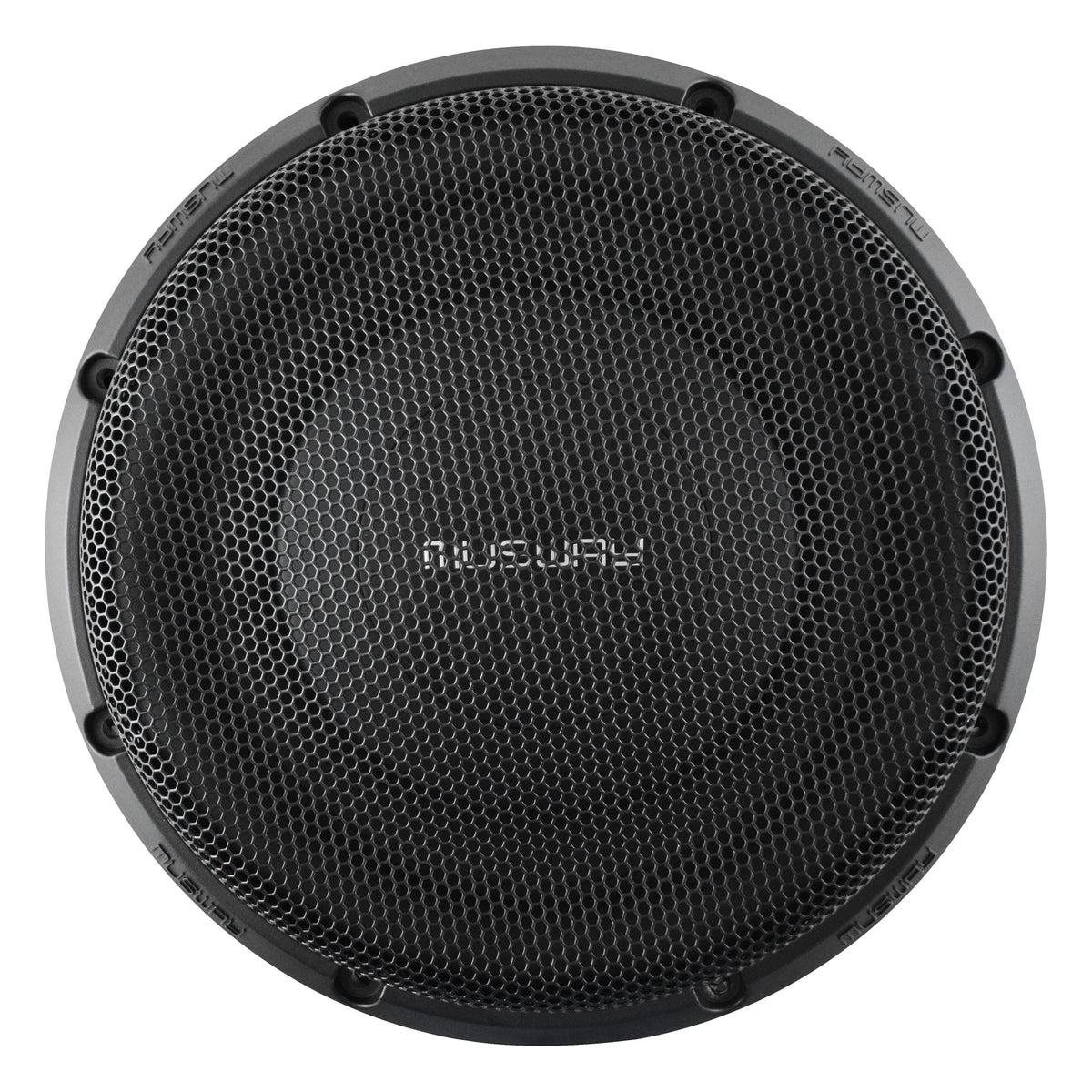

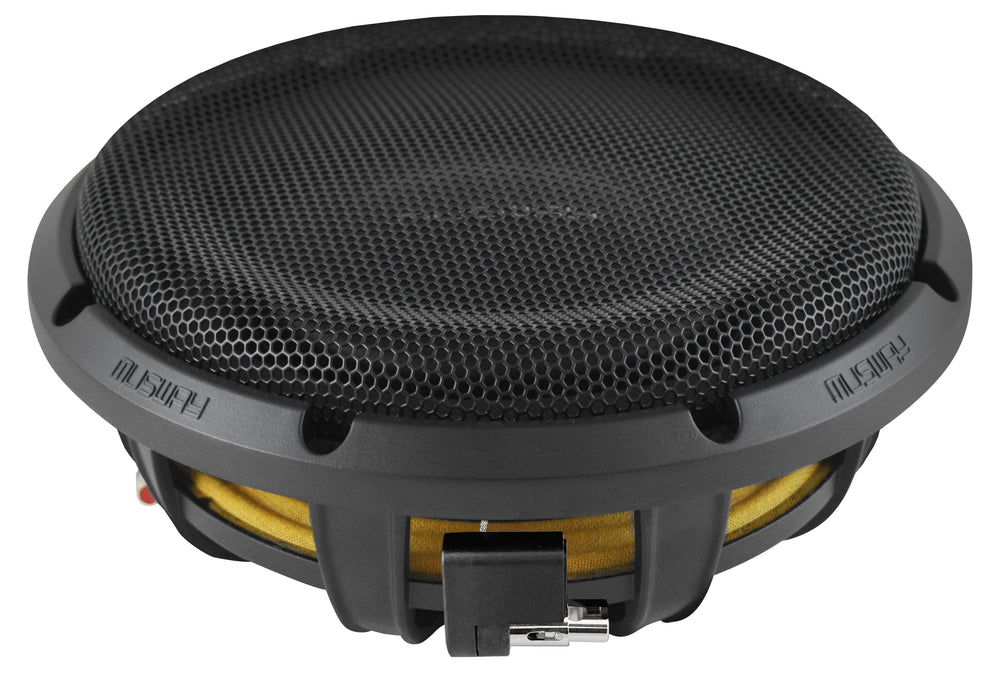

From the very first touch, the MWF1022SQ underscores its premium construction. A robust protective grille and precision-machined aluminum mounting ring are included as standard, helping protect the driver while ensuring a secure and rigid installation. The optimized basket design promotes efficient airflow around the driver system, while the solid construction helps minimize unwanted resonance and deformation during high-output operation.

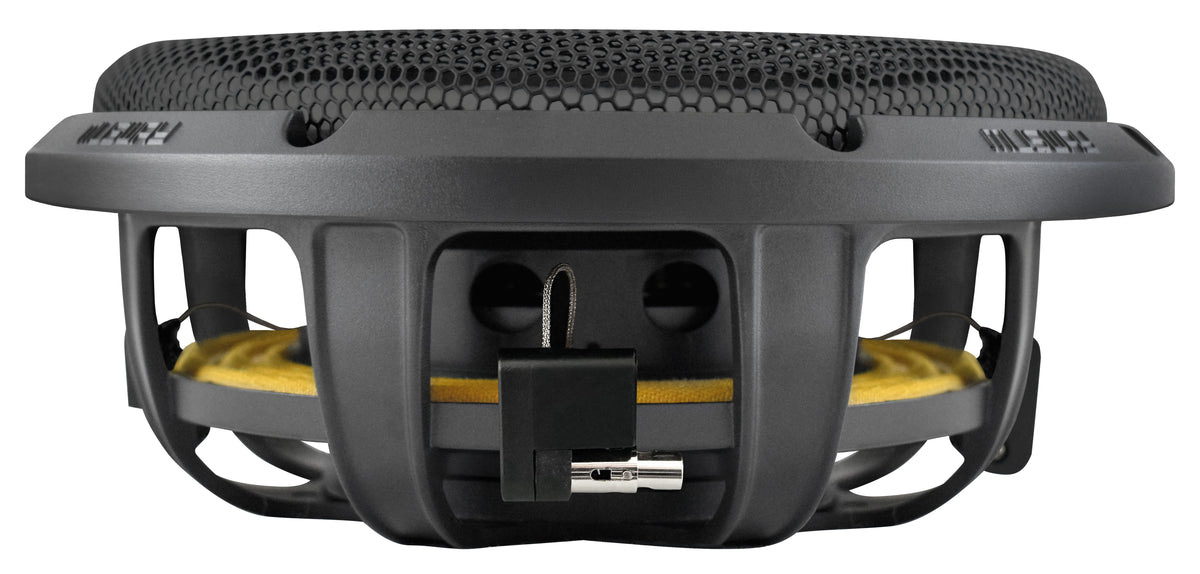

With a mounting depth of only 74.1 mm, the MWF1022SQ is ideally suited for installations where space is at a premium. Spare tire wells, slim side-panel enclosures, and compact custom installations can all benefit from its shallow profile without sacrificing the powerful and accurate bass performance expected from a premium MUSWAY subwoofer.
