Musway M12-Bundle

Musway M12-Bundle

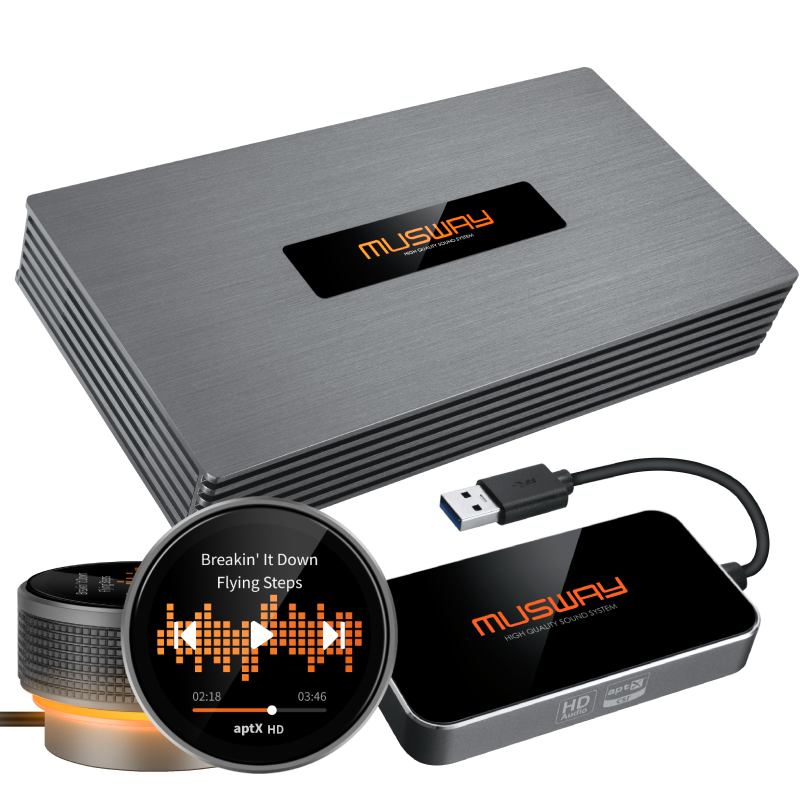

Musway Complete DSP Integration Bundle MyCon Smart DSP Controller + BTA-HD Bluetooth USB Dongle for HD Audio Streaming + M12 12-Channel 120W RMS x 12 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

$2,676.95 USD
$2,676.95 USD
Shipping calculated at checkout.
Payment & Security
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Free Nationwide Shipping
  • Free Returns Within 30 days

Product Overview

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Features:

  • High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
  • Premium Aluminum Housing: Durable and sleek design for a modern look
  • Multi-Function Control: Rotate, press, and touch functions for intuitive operation
  • DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
  • Customizable Backlight: Choose from multiple color options to match your style
  • Flexible Mounting: Includes a long cable for versatile installation locations

Bluetooth USB Dongle for HD Audio Streaming and App Control

Features:

Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.

Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.

Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.

Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.

Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).

Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.

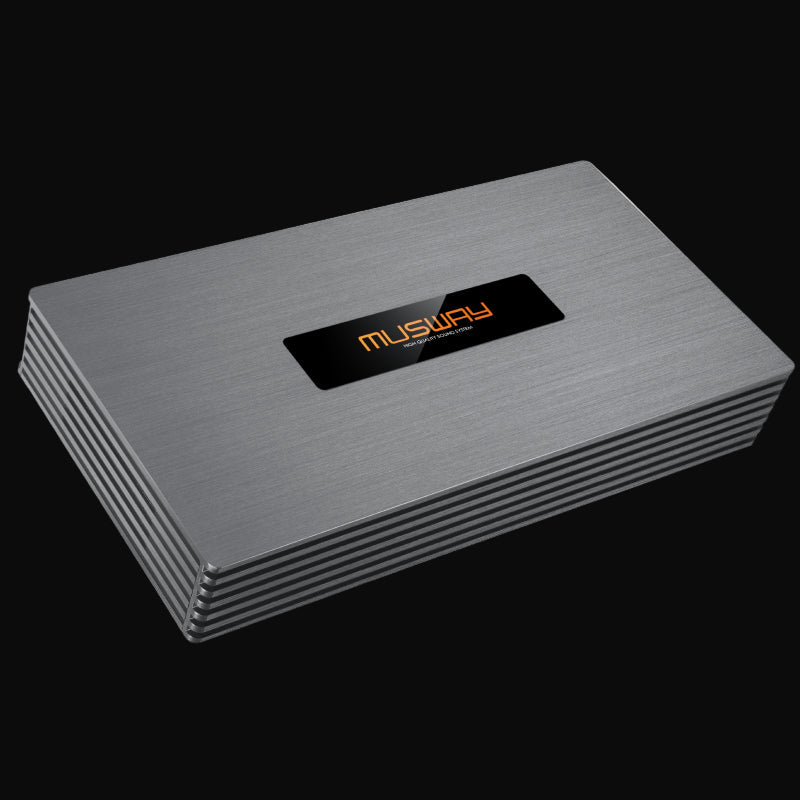

12-Channel 120W RMS x 12 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

Features:

High Level Input with EPS®: Error Protection System for secure high-level input

Start-Stop Ready: Auto Turn-On for seamless power integration

Premium Converters: Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)

Advanced DSP Technology: Dual 64-bit, 295 MHz DSP, controllable via PC software or Smartphone App

Soft-Clipping: Power attenuation for 2 Ohm operation

Signal-to-Noise Ratio: 95dB for superior audio clarity

Wide Frequency Response: 15 Hz – 22 kHz (-3dB)

Low Total Harmonic Distortion (THD): 0.05% at 1 kHz, 4 Ohms, 90% power

Input Sensitivity Control: Independently adjustable for channels 1-6, 7-12, and AUX, with Clipping LEDs

Bluetooth-Ready (Optional): External USB dongles BTS, BTS-HD & BTA2 for wireless audio streaming and app control

Optional Remote Control: Digital remote control DRC1 with OLED display for DSP function control
Musway M12-Bundle

Product Specifications

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)
Specifications:

  • Compatible with all Musway DSP Amps (v3 & Mini Series)
  • High-Def AMOLED Touchscreen
  • Premium Aluminum Housing
  • Rotate • Press • Touch Controls
  • Custom Backlight Colors
  • Long Cable Included for Flexible Mounting


Bluetooth USB Dongle for HD Audio Streaming and App Control

Specifications:

Only compatible with all MUSWAY DSP-512K models

Integrated Bluetooth 5.1 receiver

Supports music formats: aptX, aptX-LL, aptX-HD

Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz

Illuminated MUSWAY logo

Incl. USB connection cable

12-Channel 120W RMS x 12 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

Specifications:

 POWER SUPPLY

Voltage: 8 – 15 VDC

Idle Current: 3.2 A

Switched Off: <0.1 mA

Remote IN: 7.5 – 15 VDC (1 mA)

Remote OUT: 11 – 15 VDC (200 mA)

Fuse: 40 A × 2



AMPLIFIER STAGE

Product Description

Musway M12-Bundle

🔹 The Musway M12-Bundle is a flagship DSP integration solution built for ultimate system control, high-output performance, and uncompromising sound quality. German engineered for precision, this complete bundle is designed for complex, high-end audio builds.

🔹 M12 12-Channel Class-D Full Range Amplifier delivers an impressive 120W RMS x 12 at 2 ohms, providing clean, efficient power for multi-speaker and active system configurations.

🔹 16-Channel Digital Sound Processor Output enables advanced system tuning, expansion, and full active control, including detailed EQ, time alignment, and crossover management.

🔹 MyCon Smart DSP Controller allows real-time adjustment of sound settings and presets, giving you full control over your audio system at any time.

🔹 BTA-HD Bluetooth USB Dongle supports high-definition wireless audio streaming, ensuring superior clarity and convenience.

🔹 Designed with Musway’s renowned German engineering, this bundle delivers exceptional reliability, flexibility, and audiophile-grade performance.

Ideal for: high-end multi-channel systems, fully active speaker setups, OEM integration projects, and professional-level audio installations.
