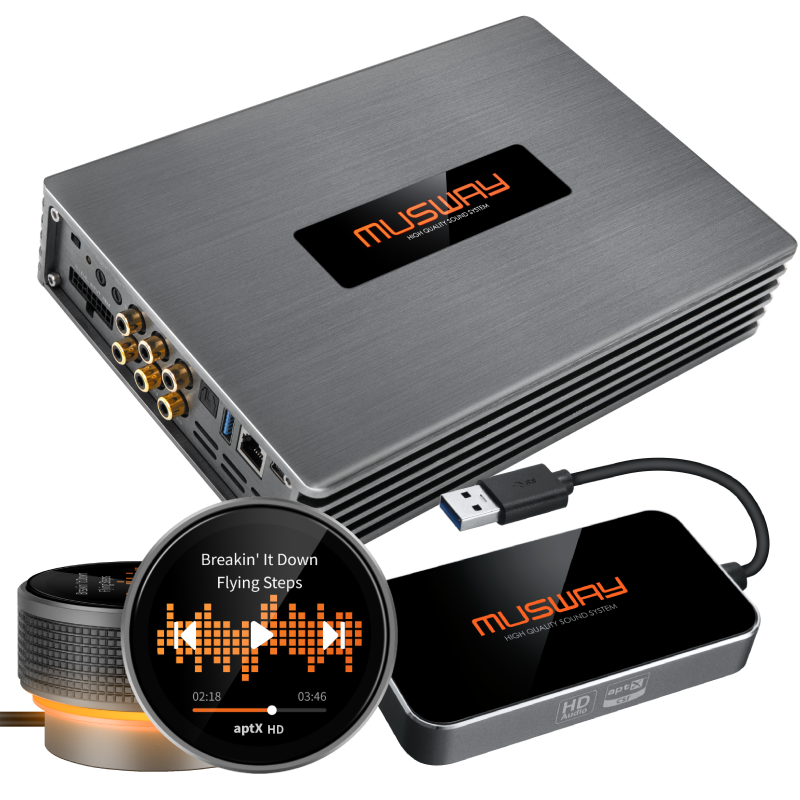

Musway M6PRO-Bundle

Musway M6PRO-Bundle

Musway Complete DSP Integration Bundle MyCon Smart DSP Controller + BTA-HD Bluetooth USB Dongle for HD Audio Streaming + M6PRO 6-Channel 200W RMS x 6 at 2 Ohm, Class-D Full Range Car Amplifier with 10-Channel Digital Sound Processor Output - German Engineered

$1,284.95 USD
$1,284.95 USD
Shipping calculated at checkout.
Payment & Security
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Free Nationwide Shipping
  • Free Returns Within 30 days

Product Overview

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Features:

  • High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
  • Premium Aluminum Housing: Durable and sleek design for a modern look
  • Multi-Function Control: Rotate, press, and touch functions for intuitive operation
  • DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
  • Customizable Backlight: Choose from multiple color options to match your style
  • Flexible Mounting: Includes a long cable for versatile installation locations

Bluetooth USB Dongle for HD Audio Streaming and App Control

Features:

Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.

Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.

Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.

Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.

Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).

Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.

6-Channel 200W RMS x 6 at 2 Ohm, Class-D Full Range Car Amplifier with 10-Channel Digital Sound Processor Output - German Engineered

Features:

Smart EPS Protection: Stay safe with built-in Error Protection System for high-level input

Instant Power-Up: Start-Stop ready with auto turn-on for seamless ignition response

Studio-Grade Components: Burr-Brown converters and Analog Devices DSP for elite sound quality

Next-Gen DSP Control: Dual 64-bit, 295 MHz DSP—tweak your sound via PC or smartphone app

Optimized for Power: Soft-Clipping tech ensures clean output even at 2 Ohm loads

Crystal-Clear Audio: 100 dB signal-to-noise ratio for ultra-clean sound

Deep & Precise Response: Wide frequency range from 10 Hz to 22.5 kHz

Virtually No Distortion: Just 0.01% THD for flawless audio at any volume

Bluetooth-Ready (Optional): Add wireless streaming and control with USB dongles

OLED Remote Control (Optional): Take full DSP command with a sleek digital display
Musway M6PRO-Bundle

Product Specifications

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)
  • Compatible with all Musway DSP Amps (v3 & Mini Series)
  • High-Def AMOLED Touchscreen
  • Premium Aluminum Housing
  • Rotate • Press • Touch Controls
  • Custom Backlight Colors
  • Long Cable Included for Flexible Mounting
Bluetooth USB Dongle for HD Audio Streaming and App Control
Specifications:
Only compatible with all MUSWAY DSP-512K models
Integrated Bluetooth 5.1 receiver
Supports music formats: aptX, aptX-LL, aptX-HD
Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz
Illuminated MUSWAY logo
Incl. USB connection cable

6-Channel 200W RMS x 6 at 2 Ohm, Class-D Full Range Car Amplifier with 10-Channel Digital Sound Processor Output - German Engineered

Features:

Smart EPS Protection: Stay safe with built-in Error Protection System for high-level input

Instant Power-Up: Start-Stop ready with auto turn-on for seamless ignition response

Studio-Grade Components: Burr-Brown converters and Analog Devices DSP for elite sound quality

Next-Gen DSP Control: Dual 64-bit, 295 MHz DSP—tweak your sound via PC or smartphone app

Optimized for Power: Soft-Clipping tech ensures clean output even at 2 Ohm loads

Crystal-Clear Audio: 100 dB signal-to-noise ratio for ultra-clean sound

Deep & Precise Response: Wide frequency range from 10 Hz to 22.5 kHz

Virtually No Distortion: Just 0.01% THD for flawless audio at any volume

Bluetooth-Ready (Optional): Add wireless streaming and control with USB dongles

OLED Remote Control (Optional): Take full DSP command with a sleek digital display



Musway DSP Software for Windows:

DSP Software V3.3

DSP Software V3.4 BETA



Specifications:

Voltage: 6.7 – 16.8 VDC

Idle Current: 1.6 A

Switched Off Current: < 0.1 mA

Remote IN: 5 – 15 VDC (1 mA)

Remote OUT: 8 – 15 VDC (300 mA)

Internal Fuse on PC Board: 40 A × 3

Distortion (THD, 1 kHz @ 4 Ω, 10 W): 0.01 %

Bandwidth (2 V/RMS, 4 Ω): 10 Hz – 22.5 kHz @ -3 dB

S/N Ratio (@ A-weighted, 1 V, Max Power): >100 dB A

Damping Factor (@ 1 kHz, 2 V/RMS, 4 Ω): >130

Input Sensitivity (high-level): 7 – 29 V/RMS

Input Sensitivity (AUX, low-level): 1 – 8 V/RMS

Input Impedance (high-level): 13 Ω

Input Impedance (AUX, low-level): 47 kΩ

Output Power @ 13.8 VDC, 1% THD: 6 × 235 Watts RMS @ 2 Ω (DHR*)

Output Power @ 13.8 VDC, 1% THD: 6 × 120 / 200 Watts RMS @ 4 / 2 Ω

Bridged Output Power @ 13.8 VDC, 1% THD: 3 × 400 Watts RMS @ 4 Ω

Product Description

Musway M6PRO-Bundle

🔹 The Musway M6PRO-Bundle is a high-output DSP integration solution built for serious performance and precise system control. German engineered for professional-grade sound quality, this bundle is ideal for demanding OEM integrations and high-power aftermarket audio systems.

🔹 M6PRO 6-Channel Class-D Full Range Amplifier delivers an impressive 200W RMS x 6 at 2 ohms, providing powerful, clean output for fully active front stages or multi-speaker configurations.

🔹 10-Channel Digital Sound Processor Output allows advanced system tuning and expansion, including detailed EQ, time alignment, and crossover control for optimal sound staging.

🔹 MyCon Smart DSP Controller enables intuitive, real-time adjustment of sound settings and presets, giving you complete control over your audio experience.

🔹 BTA-HD Bluetooth USB Dongle supports high-definition wireless audio streaming for superior clarity and convenience.

🔹 Designed with Musway’s renowned German engineering, this bundle delivers uncompromising power, precision tuning, and audiophile-grade performance.

Ideal for: high-output front stages, fully active systems, professional DSP builds, and premium OEM audio upgrades.
