Product Overview

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Features:

  • High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
  • Premium Aluminum Housing: Durable and sleek design for a modern look
  • Multi-Function Control: Rotate, press, and touch functions for intuitive operation
  • DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
  • Customizable Backlight: Choose from multiple color options to match your style
  • Flexible Mounting: Includes a long cable for versatile installation locations

Bluetooth USB Dongle for HD Audio Streaming and App Control

Features:

Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.

Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.

Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.

Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.

Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).

Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.

4-Channel 135W RMS x 4 at 2 Ohm, Class-D Full Range Car Amplifier with 8-Channel Digital Sound Processor Output - German Engineered

Features:

Start-Stop Ready: Seamless performance with modern vehicle systems

Smart Signal Protection: EPS technology guards your system from high-level input errors

Premium Build: Sleek brushed aluminum heat sink and end panels for durability and style

Hands-Free Power-Up: Auto Turn-On via DC Offset or Signal Sensing for effortless activation

Compact Powerhouse: Space-saving design with 4-layer circuit boards and low EMI

Certified Clean: Passes tough European EMI standards for interference-free audio

Clip Control: Built-in Clipping LEDs keep your sound distortion-free

Real-Time Tuning: Fine-tune your system instantly via MUSWAY PC software or mobile app

Hi-Res Streaming Ready: Optional Bluetooth dongles let you stream in high fidelity and control DSP from your smartphone

Command at Your Fingertips: Optional DRC1 remote with OLED display for full system control



Musway  M4+Bundle

Product Specifications

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Specifications:

  • Compatible with all Musway DSP Amps (v3 & Mini Series)
  • High-Def AMOLED Touchscreen
  • Premium Aluminum Housing
  • Rotate • Press • Touch Controls
  • Custom Backlight Colors
  • Long Cable Included for Flexible Mounting



Bluetooth USB Dongle for HD Audio Streaming and App Control

Specifications:

Only compatible with all MUSWAY DSP-512K models

Integrated Bluetooth 5.1 receiver

Supports music formats: aptX, aptX-LL, aptX-HD

Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz

Illuminated MUSWAY logo

Incl. USB connection cable

 4-Channel 135W RMS x 4 at 2 Ohm, Class-D Full Range Car Amplifier with 8-Channel Digital Sound Processor Output - German Engineered

Specifications:

Output Power (RMS) @ 13.8 VDC, 1% THD: 4CH at 4 Ohms: 100 W x 4

Output Power (RMS) @ 13.8 VDC, 1% THD: 4CH at 2 Ohms: 135 W x 4

Output Power (RMS) @ 13.8 VDC, 1% THD: 2CH (Bridge 1/2; 3/4) at 4 Ohms: 270 W x 2

Distortion - THD (1 kHz at 4 Ohms, 90% Power): 0.1%

Bandwidth (-3 dB, 2 V RMS, 4 Ohms): 10 Hz – 22 kHz

Signal-to-Noise Ratio at A weighted, 1 V, Max Power: 90 dB

Damping Factor at 1 kHz, 2 V RMS, 4 Ohms: >70

Input Sensitivity (High-level): 10V – 30V RMS

Input Sensitivity (Low-level): 2V – 6V RMS

Input Impedance (High-level): 13 Ω

Input Impedance (Low-level): 47K Ω

Load Impedance (Minimum): 4CH: 2 Ohms

Load Impedance (Minimum): 2CH - Bridge (1-2) (3-4): 4 Ohms

Dimensions (inches): 5.9 (L) x 8.66 (W) x 1.73 (H)

Product Description

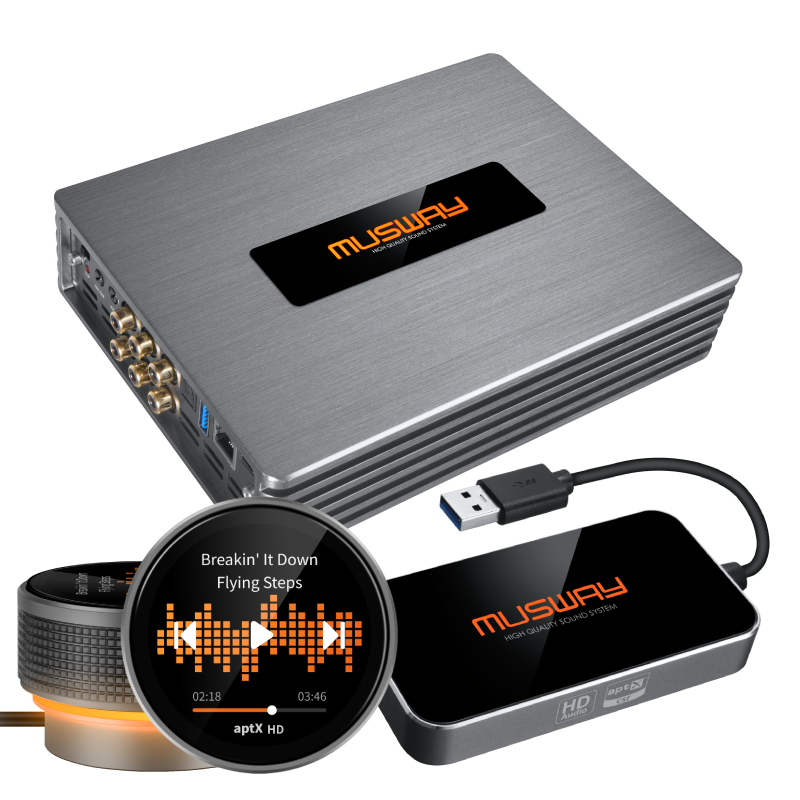

Musway M4+Bundle

🔹 The Musway M4+Bundle is a complete DSP-powered audio upgrade designed for precision tuning, powerful amplification, and seamless wireless connectivity. German engineered for audiophile-level performance, this bundle gives you total control over your sound system.

🔹 M4+ 4-Channel Class-D Full Range Amplifier delivers 135W RMS x 4 at 2 ohms, providing clean, efficient power with an 8-channel digital sound processor output for advanced system expansion and tuning flexibility.

🔹 MyCon Smart DSP Controller allows easy, real-time adjustment of sound settings, presets, and system tuning—putting full control right at your fingertips.

🔹 BTA-HD Bluetooth USB Dongle enables high-definition wireless audio streaming, ensuring superior sound quality without compression compromises.

🔹 Engineered with Musway’s German precision, this bundle is ideal for OEM integration and high-performance aftermarket systems.

Ideal for: DSP-based builds, OEM audio integration, and enthusiasts who demand total sound control with premium clarity.
