Musway M5-Bundle

Musway M5-Bundle

Musway Complete DSP Integration Bundle MyCon Smart DSP Controller + BTA-HD Bluetooth USB Dongle for HD Audio Streaming + M5 5-Channel 50W RMS x 4 at 3 Ohm + 5th Sub Channel 300W RMS x 1 at 2 Ohm, Class-D Full Range Car Amplifier with Built-In 9-Channel Digital Sound Processor Output - German Engineered

$876.95 USD
$876.95 USD
Shipping calculated at checkout.
Payment & Security
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Free Nationwide Shipping
  • Free Returns Within 30 days

Product Overview

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Features:

  • High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
  • Premium Aluminum Housing: Durable and sleek design for a modern look
  • Multi-Function Control: Rotate, press, and touch functions for intuitive operation
  • DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
  • Customizable Backlight: Choose from multiple color options to match your style
  • Flexible Mounting: Includes a long cable for versatile installation locations

Bluetooth USB Dongle for HD Audio Streaming and App Control

Features:

Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.

Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.

Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.

Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.

Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).

Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.

5-Channel 50W RMS x 4 at 3 Ohm + 5th Sub Channel 300W RMS x 1 at 2 Ohm, Class-D Full Range Car Amplifier with Built-In 9-Channel Digital Sound Processor Output - German Engineered

Features:

Start-Stop Compatible: Engineered to work flawlessly with vehicles equipped with start-stop technology

Smart Protection: Features EPS – an intelligent high-level input error protection system

Premium Design: Brushed aluminum heat sink and end panels for a sleek, durable finish

Effortless Power-On: Auto turn-on via DC offset or signal sensing – no need for a remote wire

Compact & Clean: 4-fold laminated circuit boards for a compact design and reduced EMI interference

EMI Certified: Meets tough European EMI standards for noise-free performance

Clipping Indicator: Output clipping LED helps you dial in the perfect sound without distortion

Real-Time Tuning: Tune and configure in real time using easy MUSWAY PC software or the mobile app

Bluetooth Ready: Add optional USB Bluetooth dongles for Hi-Res audio streaming and DSP control via smartphone

Take Control: Optional DRC1 digital remote with OLED display puts system control at your fingertips
Musway M5-Bundle

Product Specifications

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Specifications:

  • Compatible with all Musway DSP Amps (v3 & Mini Series)
  • High-Def AMOLED Touchscreen
  • Premium Aluminum Housing
  • Rotate • Press • Touch Controls
  • Custom Backlight Colors
  • Long Cable Included for Flexible Mounting

Bluetooth USB Dongle for HD Audio Streaming and App Control

Specifications:

Only compatible with all MUSWAY DSP-512K models

Integrated Bluetooth 5.1 receiver

Supports music formats: aptX, aptX-LL, aptX-HD

Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz

Illuminated MUSWAY logo

Incl. USB connection cable

5-Channel 50W RMS x 4 at 3 Ohm + 5th Sub Channel 300W RMS x 1 at 2 Ohm, Class-D Full Range Car Amplifier with Built-In 9-Channel Digital Sound Processor Output - German Engineered

Specifications:

POWER SUPPLY

Voltage: 7.5 – 17 VDC

Idle Current: 1 A

Switched Off: <0.1 mA

Remote IN: 5 – 15 VDC (1 mA)

Remote OUT: 8 – 15 VDC (300 mA)

Fuse: 40 A



AMPLIFIER STAGE

Distortion (THD, 1 kHz @ 4 Ω, 5 W): <0.015 %

Bandwidth (-3 dB, 2 V RMS, 4 Ω): 10 Hz – 20 kHz

S/N Ratio (@ A-weighted, 1 V, Max Power): >95 dB

Damping Factor (@ 1 kHz, 2 V RMS, 4 Ω): >80

Input Sensitivity: 6 – 18 V RMS (High-level), 2 – 6 V RMS (AUX Low-level)

Input Impedance: 13 Ω (High-level), 47 kΩ (AUX Low-level)



Output Power @ 13.8 VDC, 1% THD

CH1–CH4: 4 × 45 W RMS @ 4 Ω

CH5 (Sub): 1 × 180 W RMS @ 4 Ω

CH1–CH4: 4 × 50 W RMS @ 3 Ω

CH5 (Sub): 1 × 300 W RMS @ 2 Ω



SIGNAL OUTPUTS

RCA OUT CH6 / CH7 / CH8 / CH9: 5 V RMS Max.

Product Description

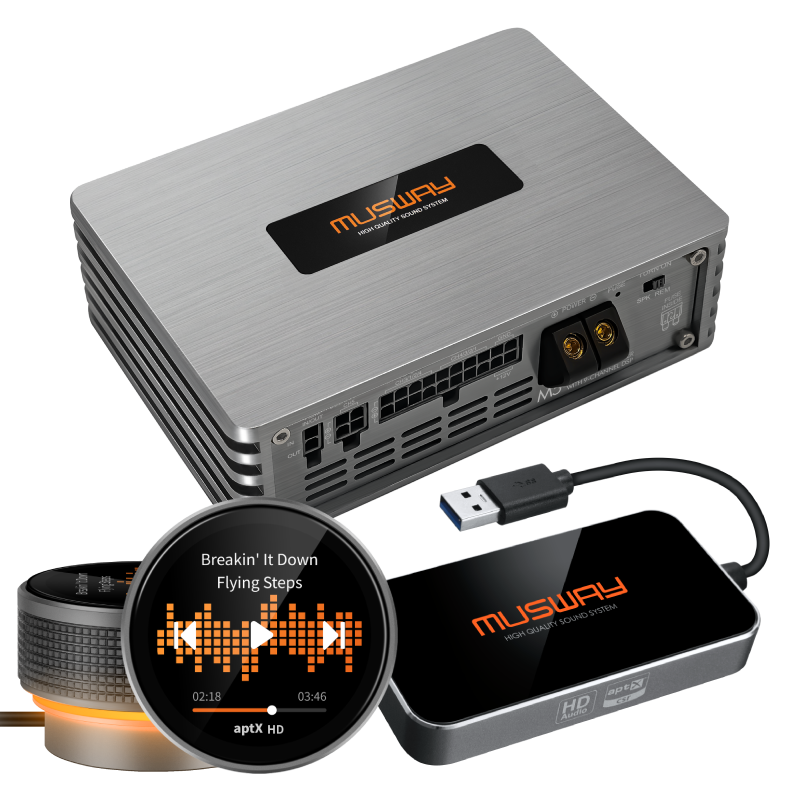

Musway M5-Bundle

🔹 The Musway M5-Bundle is a complete all-in-one DSP integration solution designed for powerful system control, precise tuning, and seamless wireless audio streaming. German engineered for performance, this bundle is ideal for advanced OEM integrations and high-fidelity aftermarket upgrades.

🔹 M5 5-Channel Class-D Full Range Amplifier delivers 50W RMS x 4 at 3 ohms for speakers plus a dedicated 300W RMS x 1 subwoofer channel at 2 ohms, providing clean power, efficiency, and strong low-frequency impact.

🔹 Built-In 9-Channel Digital Sound Processor Output allows advanced system expansion, precise crossover control, time alignment, and EQ tuning for optimal sound staging.

🔹 MyCon Smart DSP Controller offers intuitive, real-time adjustment of audio settings and presets, putting full system control at your fingertips.

🔹 BTA-HD Bluetooth USB Dongle enables high-definition wireless audio streaming for superior clarity and convenience.

🔹 Engineered with Musway’s German precision, this bundle delivers reliable performance, clean power, and total tuning flexibility.

Ideal for: OEM audio upgrades, DSP-driven systems, and users seeking a compact yet powerful all-in-one amplifier and processor solution.

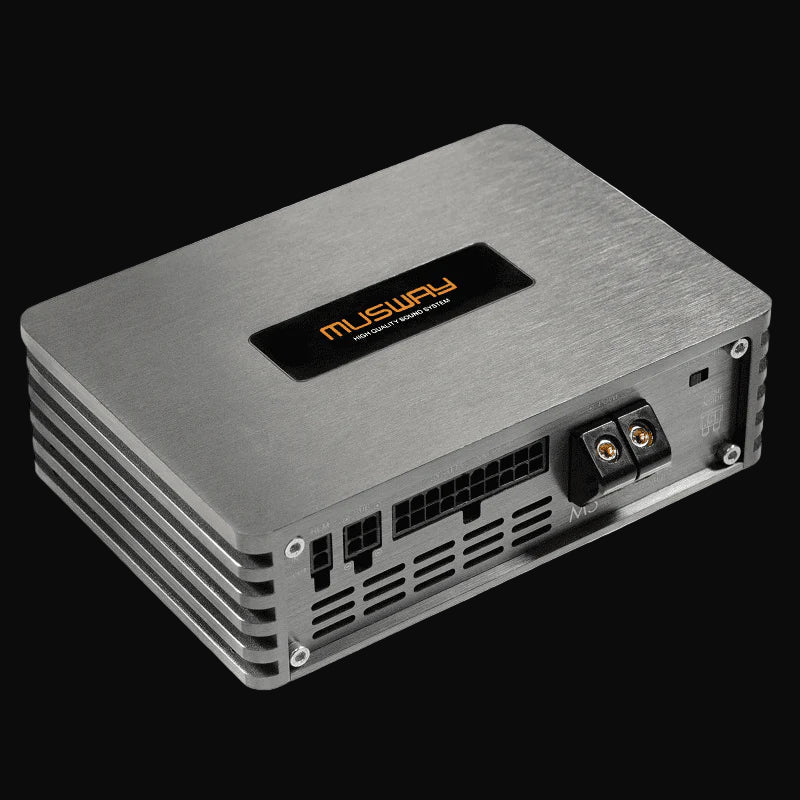

Musway M5 Car Amplifiers
