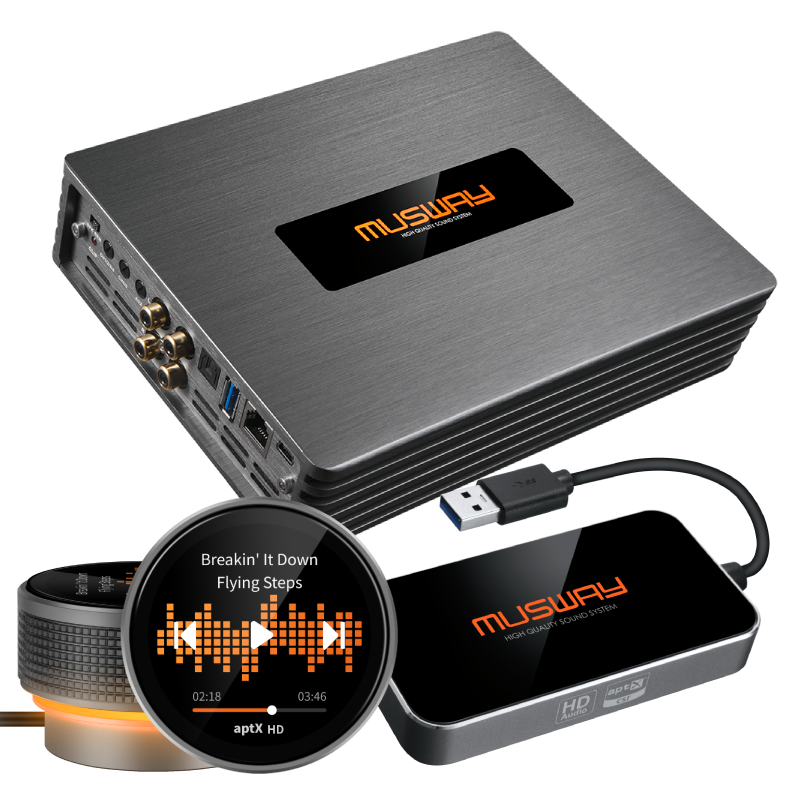

Musway M8-Bundle

Musway M8-Bundle

Musway Complete DSP Integration Bundle MyCon Smart DSP Controller + BTA-HD Bluetooth USB Dongle for HD Audio Streaming + M8 8-Channel 135W RMS x 6 + CH 7/8 220W RMS x 2 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

$2,052.95 USD
$2,052.95 USD
Shipping calculated at checkout.
Payment & Security
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Free Nationwide Shipping
  • Free Returns Within 30 days

Product Overview

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)

Features:

  • High-Definition AMOLED Touchscreen: Vivid display for easy navigation and control
  • Premium Aluminum Housing: Durable and sleek design for a modern look
  • Multi-Function Control: Rotate, press, and touch functions for intuitive operation
  • DSP Amp Compatibility: Seamlessly works with Musway DSP Amps (v3 & Mini Series)
  • Customizable Backlight: Choose from multiple color options to match your style
  • Flexible Mounting: Includes a long cable for versatile installation locations

Bluetooth USB Dongle for HD Audio Streaming and App Control

Features:

Hi-Res Wireless Streaming: Stream high-resolution music from your mobile device directly to the DSP amplifier.

Easy USB Connection: Simply plug the dongle into the DSP amplifier via USB for instant setup.

Seamless Input Control: Select Bluetooth® input using the software or the optional DRC1 remote.

Studio-Grade Audio Quality: Enjoy 24-bit / 48 kHz playback with aptX™ HD Codec for superior clarity over standard CDs.

Expanded Dynamic Range: Delivers 120 dB, a 24 dB boost compared to conventional CDs (96 dB).

Smart DSP Control: Configure and control your DSP amplifier conveniently via smartphone or tablet.

8-Channel 135W RMS x 6 + CH 7/8 220W RMS x 2 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

Features:

Powerful 8-Channel Amplifier: Delivers precise power with 80 W RMS x6 @ 4 Ω / 135 W RMS x6 @ 2 Ω and 120 W RMS x2 @ 4 Ω / 220 W RMS x2 @ 2 Ω.

Bridging Capability: Channels 1–6 bridge to 270 W per pair, while channels 7–8 bridge up to 440 W for subwoofers or high-demand speakers.

12-Channel DSP Control: Built-in digital sound processor enables fine-tuned sound staging, time alignment, and equalization.

Flexible Input Options: Supports high-level, RCA, AUX, and optical PCM 192 kHz/24-bit for seamless system integration.

Expandable System Design: Includes 4 RCA pre-outs for easy connection to additional amplifiers.

Compact Aluminum Chassis: Premium build quality with dimensions of 245 × 44 × 150 mm for easy installation.
Musway M8-Bundle

Product Specifications

Smart DSP Controller - Compatible with all Musway DSP Amps (v3 & Mini Series)
  • Compatible with all Musway DSP Amps (v3 & Mini Series)
  • High-Def AMOLED Touchscreen
  • Premium Aluminum Housing
  • Rotate • Press • Touch Controls
  • Custom Backlight Colors
  • Long Cable Included for Flexible Mounting
Bluetooth USB Dongle for HD Audio Streaming and App Control
Specifications:
Only compatible with all MUSWAY DSP-512K models
Integrated Bluetooth 5.1 receiver
Supports music formats: aptX, aptX-LL, aptX-HD
Bandwidth / sampling depth / rate = 576 kBit / 24 Bit / 48 kHz
Illuminated MUSWAY logo
Incl. USB connection cable

8-Channel 135W RMS x 6 + CH 7/8 220W RMS x 2 at 2 Ohm, Class-D Full Range Car Amplifier with 16-Channel Digital Sound Processor Output - German Engineered

Specifications:

8-Channel Class-D Amplifier with 12-Channel DSP

Power Output: 6 × 80 W + 2 × 135 W @ 4 Ω, 6 × 135 W + 2 × 220 W @ 2 Ω, Bridged 3 × 270 W + 1 × 440 W @ 4 Ω

Dimensions: 11.22" (W) × 5.16" (H) × 1.42" (L) (285 × 131 × 36 mm)

Inputs: High-Level 8, Low-Level 6, AUX 1, Optical (96 kHz/24-bit) 1

Outputs: High-Level 8, Low-Level 4 (DSP Adjustable)

THD: 0.02% (1 kHz @ 4 Ω, 10 W)

Frequency Response: 10 Hz – 20 kHz (-3 dB, 2 V RMS, 4 Ω)

S/N Ratio: 100 dB (A-weighted)
Soft-Clipping protection with indicating LED
6 × High-Level Inputs (3–21 V/RMS with EPS)
2 × High-Level Inputs (4–32 V/RMS with EPS)
6 × RCA Low-Level Inputs (0.7–5 V/RMS)
2 × AUX/RCA Inputs (0.8–6 V/RMS)
1 × Optical Input (Stereo PCM 192 kHz / 24-bit)

Product Description

Musway M8-Bundle

🔹 The Musway M8-Bundle is a powerful DSP integration solution designed for advanced audio systems that demand flexibility, clean power, and precise tuning. German engineered for performance and reliability, this bundle delivers total control for OEM and aftermarket builds alike.

🔹 M8 8-Channel Class-D Full Range Amplifier provides 135W RMS x 6, plus 220W RMS x 2 on channels 7 and 8 at 2 ohms, offering versatile configuration options for speakers, active systems, or subwoofer integration.

🔹 16-Channel Digital Sound Processor Output enables advanced system tuning, expansion, and full active control, including detailed EQ, time alignment, and crossover management.

🔹 MyCon Smart DSP Controller allows real-time adjustment of sound settings and presets for precise, user-friendly system control.

🔹 BTA-HD Bluetooth USB Dongle supports high-definition wireless audio streaming, delivering clean, detailed sound with maximum convenience.

🔹 Built with Musway’s renowned German engineering, this bundle ensures powerful output, clean signal processing, and audiophile-grade performance.

Ideal for: DSP-driven builds, fully active speaker systems, OEM audio integration, and high-performance multi-channel installations.
