NX275.2
NX275.2
NX275.2
NX275.2

SKU: NX275.2

NX275.2

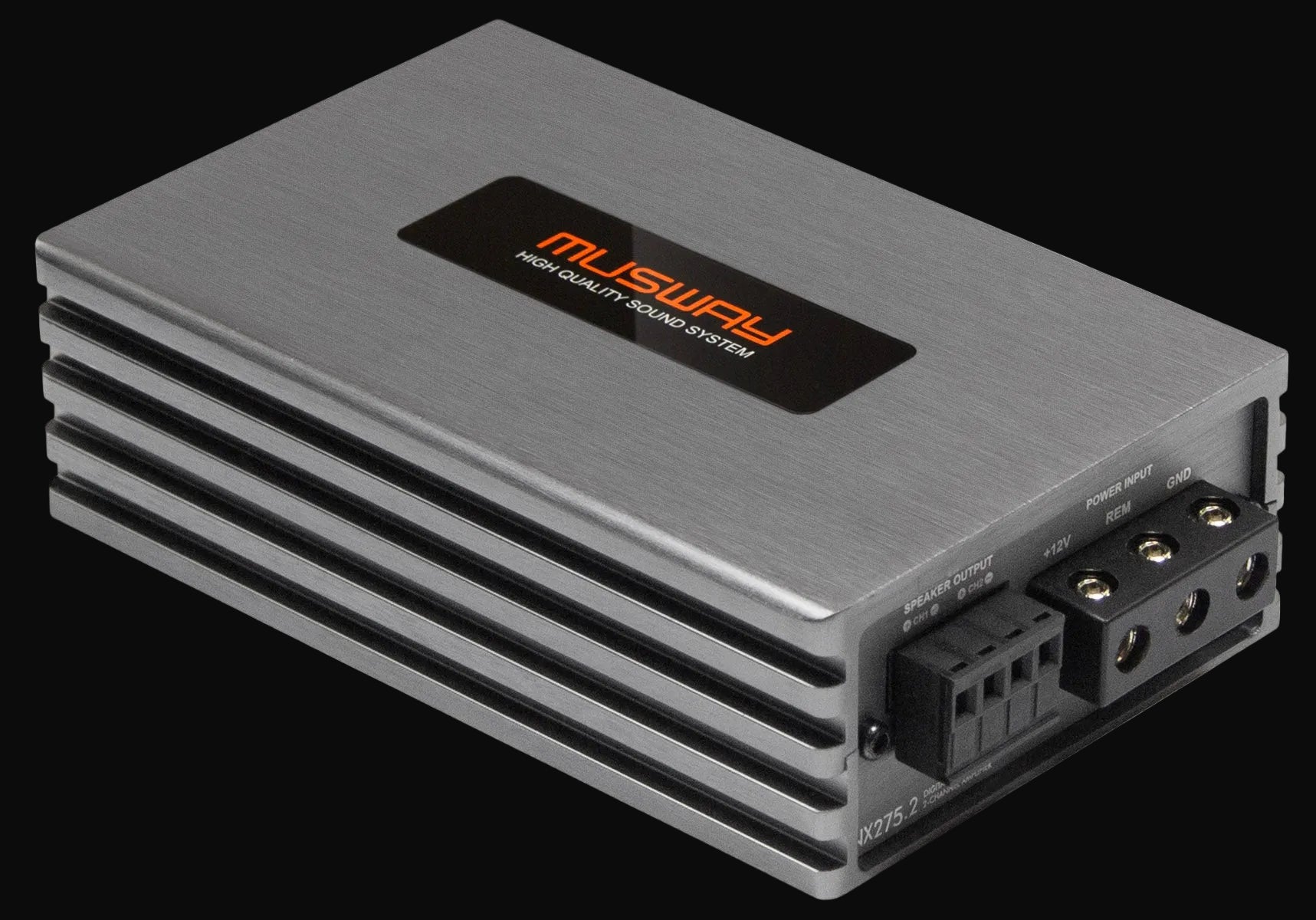

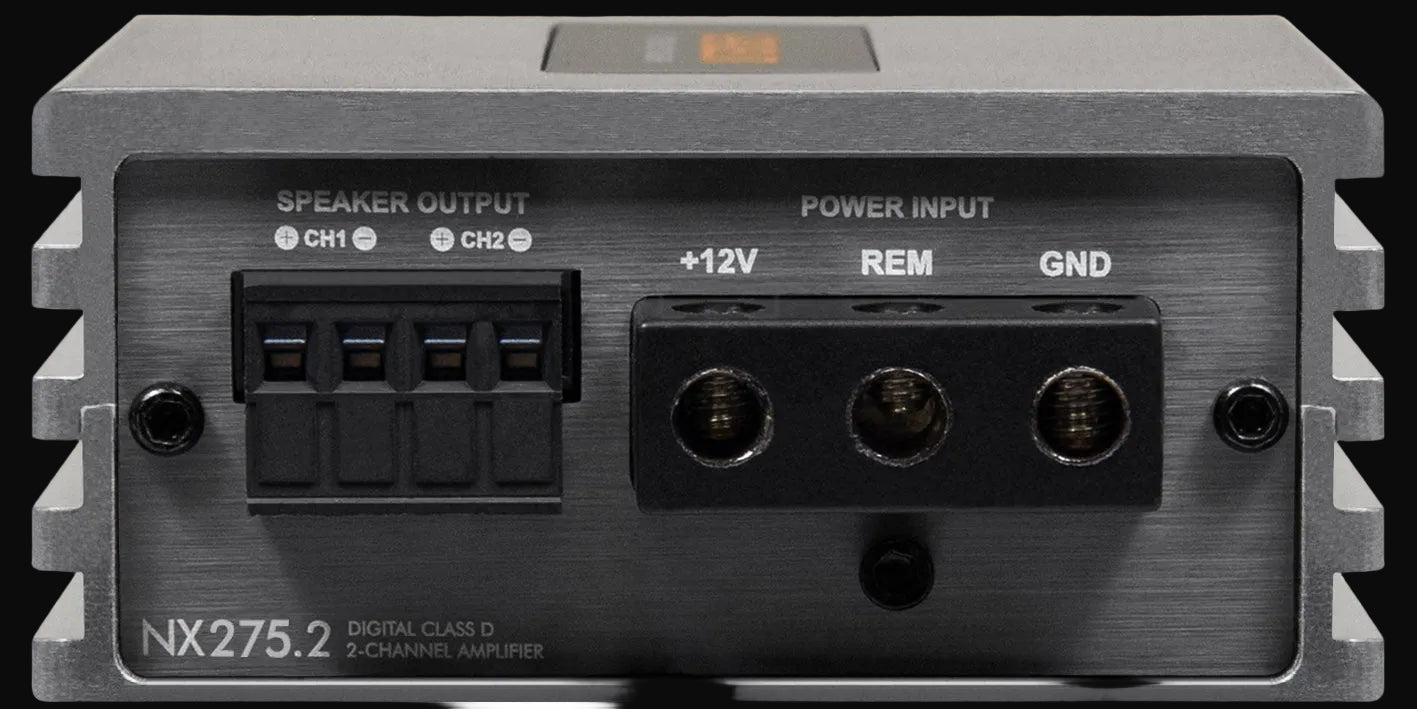

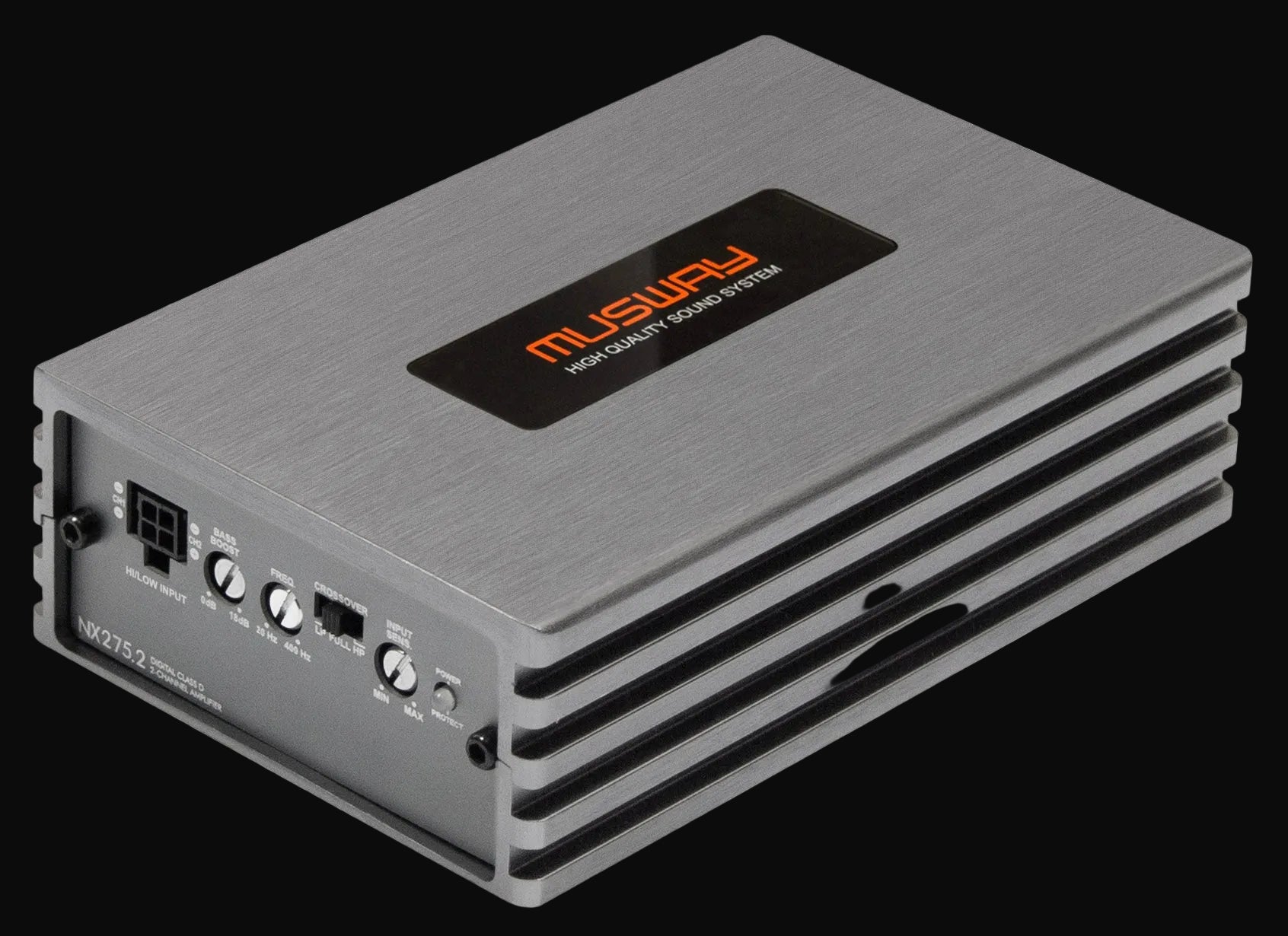

Enhanced Output 2-Channel Class D Amplifier with Expanded Headroom 2 × 275 W | 2 Ohms

$0.00 USD
Shipping calculated at checkout.
Payment & Security
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Free Nationwide Shipping
  • Free Returns Within 30 days

Downloads

Owner's Manual ↘

Overview:


The NX275.2 builds upon the NX series foundation by offering increased power output while maintaining compact dimensions and high efficiency. Designed for users who want stronger speaker control and added headroom without sacrificing installation flexibility.

Specifications:

Model: NX275.2
Channels: 2
Circuit: Digital Class D
Power @ 14.4 V (≤1% THD+N):
• Watts @ 4 Ohms: 2 × 160
• Watts @ 2 Ohms: 2 × 275
• Watts @ 4 Ohms bridged: 1 × 550
Frequency Range: 6 – 43,000 Hz @ -3 dB
Signal-to-noise Ratio: > 99 dB
THD+N @ 5 W: < 0.02 %
Input Sensitivity: 410 mV – 8.5 V

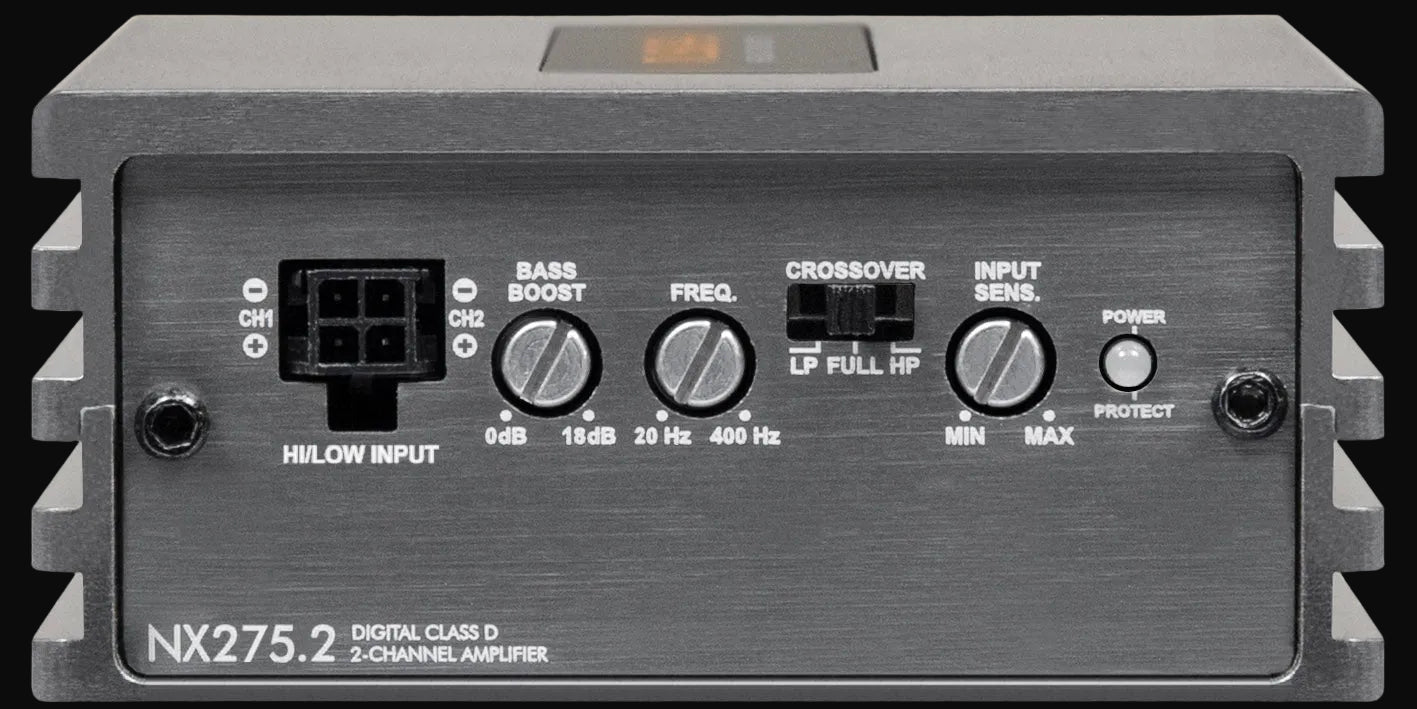

Filter Section:
• Low Pass Filter or High Pass Filter: 20 – 400 Hz
• Bass Boost @ 40 Hz: 0 – 18 dB
Operating Voltage: 10.5 – 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS*: Yes
Auto Turn-on: Yes
Bass Level Remote Controller: N
Fuse (external): 50 A
Dimensions:
• Width: 89 mm
• Height: 41 mm
• Length: 138 mm

NX275.2
Product Description

Description:

With higher power at both 2-ohm and bridged configurations, the NX275.2 is perfect for driving demanding component speakers or a small subwoofer system. Advanced filtering, clean Class D performance, and OEM-friendly features ensure consistent, distortion-free sound across a wide frequency range.
